Average the microscopic contact force to the macroscopic stress. More...

#include <average.hpp>

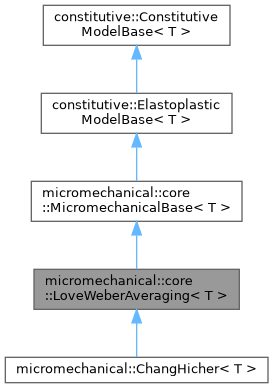

Inheritance diagram for micromechanical::core::LoveWeberAveraging< T >:

[legend]

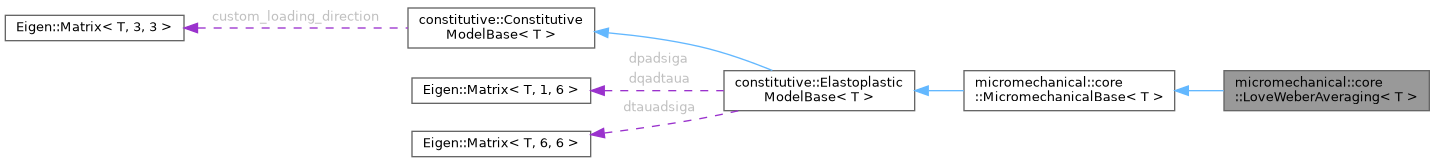

Collaboration diagram for micromechanical::core::LoveWeberAveraging< T >:

[legend]

Public Member Functions
Eigen::Matrix< T, 6, 1 >	averageStress (const Eigen::Matrix< T, Eigen::Dynamic, 3 > force, const StateVariable< T > &sv0, StateVariable< T > &sv) override
	Average the micro contact force to macro stress.
Public Member Functions inherited from micromechanical::core::MicromechanicalBase< T >
	MicromechanicalBase (const std::variant< ContactLawType, std::string, ContactLawBase< T > * > &contact, const std::unordered_map< std::string, T > &props={}, T npv=1e9, T radius=0.65e-3)
	constructor
	MicromechanicalBase ()=default
	default constructor
void	setContactLaw (const std::variant< ContactLawType, std::string, ContactLawBase< T > * > &contact, const std::unordered_map< std::string, T > &props={})
	Set the contact law if it is not set in the constructor.
virtual Eigen::Matrix< T, 6, 6 >	stiffness1 (const StateVariable< T > &sv0, StateVariable< T > &sv, const std::optional< Eigen::Matrix< T, Eigen::Dynamic, 1 > > &kn=std::nullopt, const std::optional< Eigen::Matrix< T, Eigen::Dynamic, 1 > > &ks=std::nullopt, const std::optional< Eigen::Matrix< T, Eigen::Dynamic, 1 > > &kt=std::nullopt)=0
	Compute the stiffness matrix.
virtual Eigen::Matrix< T, Eigen::Dynamic, 3 >	localizeStress (const Eigen::Matrix< T, 6, 1 > &sig, const StateVariable< T > &sv0, StateVariable< T > &sv)
	localize the macro stress to micro contact force
virtual Eigen::Matrix< T, Eigen::Dynamic, 3 >	localizeStress2 (const Eigen::Matrix< T, 6, 1 > &sig, const StateVariable< T > &sv0, StateVariable< T > &sv, const std::optional< Eigen::Matrix< T, Eigen::Dynamic, 1 > > &kn=std::nullopt, const std::optional< Eigen::Matrix< T, Eigen::Dynamic, 1 > > &ks=std::nullopt, const std::optional< Eigen::Matrix< T, Eigen::Dynamic, 1 > > &kt=std::nullopt)
	localize the macro stress to micro contact force with the kinematic hypothesis, estimated from the strain and contact displacement.
virtual Eigen::Matrix< T, Eigen::Dynamic, 3 >	localizeStrain (const Eigen::Matrix< T, 6, 1 > &eps, const StateVariable< T > &sv0, StateVariable< T > &sv)
	localize the macro strain to micro contact displacement
virtual Eigen::Matrix< T, Eigen::Dynamic, 3 >	localizeStrain2 (const Eigen::Matrix< T, 6, 1 > &eps, const StateVariable< T > &sv0, StateVariable< T > &sv, const std::optional< Eigen::Matrix< T, Eigen::Dynamic, 1 > > &kn=std::nullopt, const std::optional< Eigen::Matrix< T, Eigen::Dynamic, 1 > > &ks=std::nullopt, const std::optional< Eigen::Matrix< T, Eigen::Dynamic, 1 > > &kt=std::nullopt)
	localize the macro strain to micro contact displacement with the static hypothesis, estimated from the stress and contact force.
virtual Eigen::Matrix< T, 6, 1 >	averageStrain (const Eigen::Matrix< T, Eigen::Dynamic, 3 > disp, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Average the micro contact displacement to macro strain.
Public Member Functions inherited from constitutive::ElastoplasticModelBase< T >
void	setPlasticMethod (const std::string &method)
	set the plastic method
Eigen::Matrix< T, 6, 6 >	continuumElastoplasticStiffness (const Eigen::Matrix< T, 6, 6 > &K, const StateVariable< T > &sv0, StateVariable< T > &sv, bool check_elastic_state=true, std::optional< bool > check_positive_definite=std::nullopt, std::optional< bool > check_non_singularity=std::nullopt) override
Eigen::Matrix< T, 6, 6 >	symmetricContinuumElastoplasticStiffness (const Eigen::Matrix< T, 6, 6 > &K, const Eigen::Matrix< T, 6, 1 > &deps, const StateVariable< T > &sv0, StateVariable< T > &sv, bool check_elastic_state=true, std::optional< bool > check_positive_definite=std::nullopt, std::optional< bool > check_non_singularity=std::nullopt) override
Eigen::Matrix< T, 6, 6 >	consistentElastoplasticStiffness (const Eigen::Matrix< T, 6, 6 > &K, const StateVariable< T > &sv0, StateVariable< T > &sv, bool check_elastic_state=true, std::optional< bool > check_positive_definite=std::nullopt, std::optional< bool > check_non_singularity=std::nullopt) override
virtual T	yieldFunction (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Yield function for elastoplastic model.
Eigen::Matrix< T, 6, 1 >	dfdsig0 (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Derivative of the yield function with respect to the stress.
virtual Eigen::Matrix< T, 6, 1 >	dfdsig (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Derivative of the yield function with respect to the stress.
Eigen::Matrix< T, 6, 1 >	dfdsig1 (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Derivative of the yield function with respect to the stress.
Eigen::Matrix< T, 6, 1 >	dfdeps0 (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Derivative of the yield function with respect to the strain.
virtual Eigen::Matrix< T, 6, 1 >	dfdeps (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Derivative of the yield function with respect to the strain.
Eigen::Matrix< T, 6, 1 >	dfdeps1 (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Derivative of the yield function with respect to the strain.
Eigen::Matrix< T, 6, 1 >	dfdepsp0 (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Derivative of the yield function with respect to the plastic strain.
virtual Eigen::Matrix< T, 6, 1 >	dfdepsp (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Derivative of the yield function with respect to the plastic strain.
Eigen::Matrix< T, 6, 1 >	dfdepsp1 (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Derivative of the yield function with respect to the plastic strain.
Public Member Functions inherited from constitutive::ConstitutiveModelBase< T >
	ConstitutiveModelBase ()=default
	default constructor
virtual	~ConstitutiveModelBase ()=default
	destructor
virtual std::vector< StateVariable< T > >	run ()
	Run the model.
virtual Eigen::Matrix< T, 6, 1 >	increment (const Eigen::Matrix< T, 6, 1 > &dx, Eigen::Matrix< T, 6, 1 > x, const Eigen::Matrix< T, 6, 6 > &S, const Eigen::Matrix< T, 6, 6 > &E, const Eigen::Matrix< T, 6, 6 > &G, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Compute one increment.
void	setElementType (const std::string &element_type)
	Set ABAQUS element type.
void	setStressStrainComponents (const int ndi, const int nshr)
	Set number of stress/strain components.
std::tuple< StateVariable< T >, StateVariable< T > >	umat (const T dload, T stress, T statev, T ddsdde=nullptr, T sse=nullptr, T spd=nullptr, T *scd=nullptr)
	ABAQUS UMAT interface.
void	vumat (const int nBlock, const T loadInc, const T stressOld, T stressNew, const T stateOld, T *stateNew, const int nStatev)
	ABAQUS VUMAT interface.
virtual Eigen::Matrix< T, 6, 6 >	stiffness (const StateVariable< T > &sv0, StateVariable< T > &sv)=0
	Compute the stiffness matrix.
Eigen::Matrix< T, 6, 6 >	elastoplasticStiffness (const Eigen::Matrix< T, 6, 6 > &K, const Eigen::Matrix< T, 6, 1 > deps, const StateVariable< T > &sv0, StateVariable< T > &sv, bool check_elastic_state=true, std::optional< bool > check_positive_definite=std::nullopt, std::optional< bool > check_non_singularity=std::nullopt)
	Compute the elastoplastic stiffness matrix.

Additional Inherited Members
Public Attributes inherited from micromechanical::core::MicromechanicalBase< T >
std::shared_ptr< ContactLawBase< T > >	contact
	contact law
std::shared_ptr< Integration< T > >	integration
	gauss integration points
int	_integration = 0
	number of integration steps
Public Attributes inherited from constitutive::ElastoplasticModelBase< T >
std::string	plasticMethod = "CPA"
	Plastic method.
Public Attributes inherited from constitutive::ConstitutiveModelBase< T >
std::string	name = "Undefined"
	name of the model
std::shared_ptr< Load< T > >	load = std::make_shared<Load<T>>()
	load
std::shared_ptr< Options< T > >	options = std::make_shared<Options<T>>()
	options for the constitutive model
std::shared_ptr< DebugVariable< T > >	debugVariable = std::make_shared<DebugVariable<T>>()
	debug variable
std::vector< StateVariable< T > >	stateVars = {}
	state variables of the current run
Eigen::Matrix< T, 3, 3 >	custom_loading_direction = Eigen::Matrix<T, 3, 3>::Zero()
	custom loading direction
bool	abaqus_initialize = false
	Options for abaqus UMAT/VUMAT interfaces.
bool	abaqus_normalize_ddsdde = true
	whether to normalize stiffness matrix
bool	abaqus_strain_control = true
	the load is controlled by strain (true) or stress (false)
bool	abaqus_disable_unused_components = false
	whether to disable unused components in the flow rule
int	abaqus_ndi = 3
	number of direct stress/strain components
int	abaqus_nshr = 3
	number of shear stress/strain components
std::string	abaqus_stiffness_type = "elastic"
T	abaqus_elastoplastic_stiffness_strain_increment_multiplier = 1.0
	multiplier for strain increment when computing elastoplastic stiffness matrix
bool	abaqus_check_stiffness_matrix_positive_definite = true
	whether to check the positive definiteness of the stiffness matrix
bool	abaqus_check_stiffness_matrix_non_singularity = true
	whether to check the non-singularity of the stiffness matrix
int	_phase = 0
	index of the phase
int	_step = 0
	current step
int	_mixedLoad = 0
	number of mixed load steps
Protected Member Functions inherited from micromechanical::core::MicromechanicalBase< T >
int	nstatev () const
void	fromAbaqus (StateVariable< T > &sv0, T *statev) override
	Sync the state variables sv0 from abaqus statev.
void	toAbaqus (const StateVariable< T > &sv0, StateVariable< T > &sv, T *statev) override
	Sync the state variables sv to abaqus statev.
StateVariable< T >	createStateVariable () override
	Create a new state variable object.
void	initialize (StateVariable< T > &sv) override
	Initialize the state variables.
void	postProcess (StateVariable< T > &sv) override
	Post-process the state variables.
void	preStressStrainIntegrate (const StateVariable< T > &sv0, StateVariable< T > &sv) override
	Pre-processing before the stress-strain integration.
void	postIncrement (const StateVariable< T > &sv0, StateVariable< T > &sv) override
	Post-processing after the increment.
void	contactIntegrates (const Eigen::Matrix< T, Eigen::Dynamic, 3 > &dforce, const Eigen::Matrix< T, Eigen::Dynamic, 3 > &ddisp, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Integrate all the contact laws with cache.
virtual Eigen::Matrix< T, 3, 3 >	contactIntegrate (const int idx, const Eigen::Matrix< T, 3, 1 > &dforce, const Eigen::Matrix< T, 3, 1 > &ddisp, const StateVariable< T > &sv0, StateVariable< T > &sv) const =0
	Integrate the contact law.
Protected Member Functions inherited from constitutive::ElastoplasticModelBase< T >
bool	isExplicit () const
	check if the plastic method is explicit
bool	isCPA () const
	check if the plastic method is CPA
bool	isCPPM () const
	check if the plastic method is CPPM
bool	isRungeKutta () const
	check if the plastic method is RungeKutta
void	stressStrainIntegrate (const Eigen::Matrix< T, 6, 6 > &K, const Eigen::Matrix< T, 6, 1 > &dsig, const Eigen::Matrix< T, 6, 1 > &deps, const StateVariable< T > &sv0, StateVariable< T > &sv) override
	Stress-strain integration.
void	returnMapping (const Eigen::Matrix< T, 6, 6 > &K, const Eigen::Matrix< T, 6, 1 > &dsig, const Eigen::Matrix< T, 6, 1 > &deps, const StateVariable< T > &sv0, StateVariable< T > &sv)
	return mapping algorithm to solve plastic problem (plastic strain and stress)
T	elasticTrial (const Eigen::Matrix< T, 6, 6 > &K, const Eigen::Matrix< T, 6, 1 > &deps, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Perform the elastic trial.
void	revertElasticTrial (const Eigen::Matrix< T, 6, 6 > &K, const Eigen::Matrix< T, 6, 1 > &deps, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Revert the elastic trial.
virtual void	beginConstantStressStateScope (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Begin the scope of a constant stress state which can be used to cache intermediate variables for the plastic correction, such as derivatives of the yield and plastic potential functions, and hardening law.
void	beginConstantStressStateScope1 (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Begin the scope of a constant stress state which can be used to cache intermediate variables for the plastic correction, such as derivatives of the yield and plastic potential functions, and hardening law.
virtual void	endConstantStressStateScope (const StateVariable< T > &sv0, StateVariable< T > &sv)
	End the scope of a constant stress state.
void	endConstantStressStateScope1 (const StateVariable< T > &sv0, StateVariable< T > &sv)
	End the scope of a constant stress state.
virtual bool	converged (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Whether the current stress state can be accepted as converged, used for elastoplastic substepping.
void	ExplicitCPA (const Eigen::Matrix< T, 6, 6 > &K, const Eigen::Matrix< T, 6, 1 > &deps, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Explicit/CPA methods for elastoplastic model.
void	CPPM (const Eigen::Matrix< T, 6, 6 > &K, const Eigen::Matrix< T, 6, 1 > &deps, const StateVariable< T > &sv0, StateVariable< T > &sv)
	CPPM method for elastoplastic model.
std::tuple< bool, T >	integrateToYieldSurface (const Eigen::Matrix< T, 6, 6 > &K, const Eigen::Matrix< T, 6, 1 > &deps, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Integrate stress state to the yield surface elastically, solve f(sig0 + alpha * K * deps) = 0.
std::tuple< Eigen::Matrix< T, 6, 6 >, Eigen::Matrix< T, 6, 1 >, Eigen::Matrix< T, 6, 1 >, Eigen::Matrix< T, Eigen::Dynamic, 1 >, Eigen::Matrix< T, Eigen::Dynamic, 6 > >	RKn (int n, const Eigen::Matrix< T, 6, 6 > &K, const Eigen::Matrix< T, 6, 1 > &deps, const StateVariable< T > &sv0, StateVariable< T > &sv, const bool revert=false)
	Perform a Runge-Kutta increment.
void	RungeKutta (const Eigen::Matrix< T, 6, 6 > &K, const Eigen::Matrix< T, 6, 1 > &deps, const StateVariable< T > &sv0, StateVariable< T > &sv, std::optional< int > order=std::nullopt)
	Runge-Kutta method for elastoplastic model.
virtual T	CSL (const StateVariable< T > &sv0, StateVariable< T > &sv) const
	calculate the critical state line
T	yieldFunction1 (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Yield function for elastoplastic model.
Eigen::Matrix< T, 6, 6 >	dsigadsig (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Derivative of the modified stress with respect to the stress.
virtual T	potentialFunction (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Potential function for elastoplastic model.
Eigen::Matrix< T, 6, 1 >	dgdsig0 (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Derivative of the potential function with respect to the stress.
virtual Eigen::Matrix< T, 6, 1 >	dgdsig (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Derivative of the potential function with respect to the stress.
Eigen::Matrix< T, 6, 1 >	dgdsig1 (const Eigen::Matrix< T, 6, 1 > &dfdsig, const StateVariable< T > &sv0, StateVariable< T > &sv, std::optional< bool > associated=std::nullopt)
	Derivative of the potential function with respect to the stress.
Eigen::Matrix< T, 6, 6 >	d2gdsig20 (const Eigen::Matrix< T, 6, 1 > &dfdsig, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Second-order derivative of the potential function with respect to the stress.
virtual Eigen::Matrix< T, 6, 6 >	d2gdsig2 (const Eigen::Matrix< T, 6, 1 > &dfdsig, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Second-order derivative of the potential function with respect to the stress.
Eigen::Matrix< T, 6, 6 >	d2gdsig21 (const Eigen::Matrix< T, 6, 1 > &dfdsig, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Second-order derivative of the potential function with respect to the stress.
virtual T	plasticModulus (const Eigen::Matrix< T, 6, 1 > &dgdsig, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Plastic modulus for elastoplastic model, including dgdsig.
T	plasticModulus1 (const Eigen::Matrix< T, 6, 1 > &dgdsig, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Plastic modulus for elastoplastic model, including dgdsig.
virtual void	updateHardeningVariables (const T ddlambda, const Eigen::Matrix< T, 6, 1 > &ddepsp, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Update the hardening variables.
virtual void	yieldFunctionCorrection (const Eigen::Matrix< T, 6, 6 > &K, const Eigen::Matrix< T, 6, 1 > &deps, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Yield surface correction to keep the force state on the yield surface.
Eigen::Matrix< T, 3, 3 >	orthogonalDirection (const Eigen::Matrix< T, 3, 3 > &F, const Eigen::Matrix< T, 3, 3 > &n) const
	Orthogonal direction.
Eigen::Matrix< T, 3, 3 >	nonCoaxialDirection (const Eigen::Matrix< T, 3, 3 > &F, const Eigen::Matrix< T, 3, 3 > &n, const Eigen::Matrix< T, 3, 3 > &m) const
	Non-coaxial direction.
void	interpolateFabricTensor (const StateVariable< T > &sv0, StateVariable< T > &sv, const bool clear_caches=true, std::optional< std::string > combined_stress_tensor_type=std::nullopt)
	Interpolate fabric tensor towards critical state.
Protected Member Functions inherited from constitutive::ConstitutiveModelBase< T >
bool	checkStiffnessMatrix (const Eigen::Matrix< T, 6, 6 > &K, std::optional< bool > check_positive_definite=std::nullopt, std::optional< bool > check_non_singularity=std::nullopt)
	Check whether the stiffness matrix is valid.
T	updateVoidRatio (T e0, StateVariable< T > &sv)
	Update the void ratio after the isotropic loading to the void ratio before the isotropic loading.
virtual void	postInitialize (StateVariable< T > &sv)
	Post-initialize the state variables.
void	saveElasticStiffnessMatrix (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Save elastic stiffness matrix.
virtual void	postStressStrainIntegrate (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Post-processing after the stress-strain integration.
virtual void	preIncrement (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Pre-processing before the increment.
std::tuple< Eigen::Matrix< T, 6, 1 >, Eigen::Matrix< T, 6, 1 > >	linearize (const Eigen::Matrix< T, 6, 6 > &K, const Eigen::Matrix< T, 6, 1 > &dx, const Eigen::Matrix< T, 6, 6 > &S, const Eigen::Matrix< T, 6, 6 > &E, const Eigen::Matrix< T, 6, 6 > &G, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Linearize the stress and strain increment.
void	resetCustomStateVariables (StateVariable< T > &sv0, StateVariable< T > &sv)
	Reset the custom state variables to zeros existing in the current state variables but not in the initial state variables.
Eigen::Matrix< T, 3, 3 >	loadingDirection (const StateVariable< T > &sv0, StateVariable< T > &sv) const
	loading direction
Protected Attributes inherited from constitutive::ElastoplasticModelBase< T >
std::string	state = "none"
bool	cached_ = false
	whether the state variables have been cached
Eigen::Matrix< T, 1, 6 >	dpadsiga = {-1.0 / 3.0, -1.0 / 3.0, -1.0 / 3.0, 0.0, 0.0, 0.0}
Eigen::Matrix< T, 1, 6 >	dqadtaua = Eigen::Matrix<T, 1, 6>::Zero()
Eigen::Matrix< T, 6, 6 >	dtauadsiga
Protected Attributes inherited from constitutive::ConstitutiveModelBase< T >
T	_e0 = 0.0
	original void ratio

Detailed Description

template<typename T>
struct micromechanical::core::LoveWeberAveraging< T >

Average the microscopic contact force to the macroscopic stress.

Member Function Documentation

◆ averageStress()

template<typename T>

Eigen::Matrix< T, 6, 1 > micromechanical::core::LoveWeberAveraging< T >::averageStress	(	const Eigen::Matrix< T, Eigen::Dynamic, 3 >	force,
		const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )
