#include <elastoplasticmodelbase.hpp>

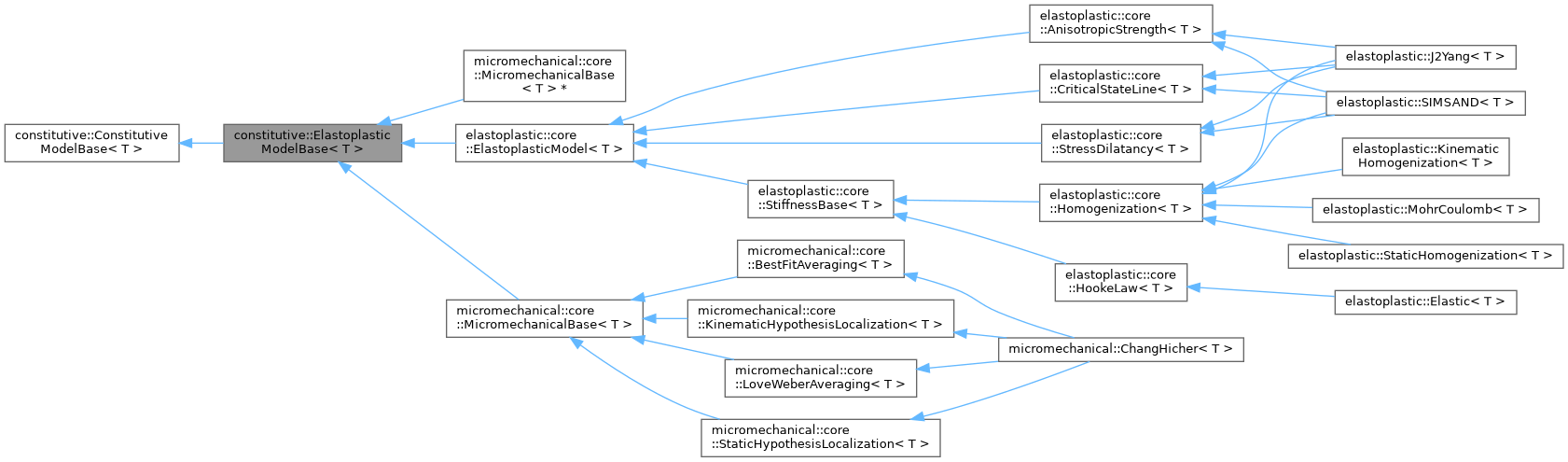

Inheritance diagram for constitutive::ElastoplasticModelBase< T >:

[legend]

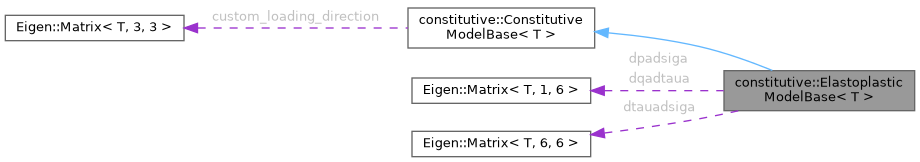

Collaboration diagram for constitutive::ElastoplasticModelBase< T >:

[legend]

Public Member Functions
void	setPlasticMethod (const std::string &method)
	set the plastic method
Eigen::Matrix< T, 6, 6 >	continuumElastoplasticStiffness (const Eigen::Matrix< T, 6, 6 > &K, const StateVariable< T > &sv0, StateVariable< T > &sv, bool check_elastic_state=true, std::optional< bool > check_positive_definite=std::nullopt, std::optional< bool > check_non_singularity=std::nullopt) override
Eigen::Matrix< T, 6, 6 >	symmetricContinuumElastoplasticStiffness (const Eigen::Matrix< T, 6, 6 > &K, const Eigen::Matrix< T, 6, 1 > &deps, const StateVariable< T > &sv0, StateVariable< T > &sv, bool check_elastic_state=true, std::optional< bool > check_positive_definite=std::nullopt, std::optional< bool > check_non_singularity=std::nullopt) override
Eigen::Matrix< T, 6, 6 >	consistentElastoplasticStiffness (const Eigen::Matrix< T, 6, 6 > &K, const StateVariable< T > &sv0, StateVariable< T > &sv, bool check_elastic_state=true, std::optional< bool > check_positive_definite=std::nullopt, std::optional< bool > check_non_singularity=std::nullopt) override
virtual T	yieldFunction (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Yield function for elastoplastic model.
Eigen::Matrix< T, 6, 1 >	dfdsig0 (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Derivative of the yield function with respect to the stress.
virtual Eigen::Matrix< T, 6, 1 >	dfdsig (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Derivative of the yield function with respect to the stress.
Eigen::Matrix< T, 6, 1 >	dfdsig1 (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Derivative of the yield function with respect to the stress.
Eigen::Matrix< T, 6, 1 >	dfdeps0 (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Derivative of the yield function with respect to the strain.
virtual Eigen::Matrix< T, 6, 1 >	dfdeps (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Derivative of the yield function with respect to the strain.
Eigen::Matrix< T, 6, 1 >	dfdeps1 (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Derivative of the yield function with respect to the strain.
Eigen::Matrix< T, 6, 1 >	dfdepsp0 (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Derivative of the yield function with respect to the plastic strain.
virtual Eigen::Matrix< T, 6, 1 >	dfdepsp (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Derivative of the yield function with respect to the plastic strain.
Eigen::Matrix< T, 6, 1 >	dfdepsp1 (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Derivative of the yield function with respect to the plastic strain.
Public Member Functions inherited from constitutive::ConstitutiveModelBase< T >
	ConstitutiveModelBase ()=default
	default constructor
virtual	~ConstitutiveModelBase ()=default
	destructor
virtual std::vector< StateVariable< T > >	run ()
	Run the model.
virtual Eigen::Matrix< T, 6, 1 >	increment (const Eigen::Matrix< T, 6, 1 > &dx, Eigen::Matrix< T, 6, 1 > x, const Eigen::Matrix< T, 6, 6 > &S, const Eigen::Matrix< T, 6, 6 > &E, const Eigen::Matrix< T, 6, 6 > &G, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Compute one increment.
void	setElementType (const std::string &element_type)
	Set ABAQUS element type.
void	setStressStrainComponents (const int ndi, const int nshr)
	Set number of stress/strain components.
std::tuple< StateVariable< T >, StateVariable< T > >	umat (const T dload, T stress, T statev, T ddsdde=nullptr, T sse=nullptr, T spd=nullptr, T *scd=nullptr)
	ABAQUS UMAT interface.
void	vumat (const int nBlock, const T loadInc, const T stressOld, T stressNew, const T stateOld, T *stateNew, const int nStatev)
	ABAQUS VUMAT interface.
virtual Eigen::Matrix< T, 6, 6 >	stiffness (const StateVariable< T > &sv0, StateVariable< T > &sv)=0
	Compute the stiffness matrix.
Eigen::Matrix< T, 6, 6 >	elastoplasticStiffness (const Eigen::Matrix< T, 6, 6 > &K, const Eigen::Matrix< T, 6, 1 > deps, const StateVariable< T > &sv0, StateVariable< T > &sv, bool check_elastic_state=true, std::optional< bool > check_positive_definite=std::nullopt, std::optional< bool > check_non_singularity=std::nullopt)
	Compute the elastoplastic stiffness matrix.

Public Attributes
std::string	plasticMethod = "CPA"
	Plastic method.
Public Attributes inherited from constitutive::ConstitutiveModelBase< T >
std::string	name = "Undefined"
	name of the model
std::shared_ptr< Load< T > >	load = std::make_shared<Load<T>>()
	load
std::shared_ptr< Options< T > >	options = std::make_shared<Options<T>>()
	options for the constitutive model
std::shared_ptr< DebugVariable< T > >	debugVariable = std::make_shared<DebugVariable<T>>()
	debug variable
std::vector< StateVariable< T > >	stateVars = {}
	state variables of the current run
Eigen::Matrix< T, 3, 3 >	custom_loading_direction = Eigen::Matrix<T, 3, 3>::Zero()
	custom loading direction
bool	abaqus_initialize = false
	Options for abaqus UMAT/VUMAT interfaces.
bool	abaqus_normalize_ddsdde = true
	whether to normalize stiffness matrix
bool	abaqus_strain_control = true
	the load is controlled by strain (true) or stress (false)
bool	abaqus_disable_unused_components = false
	whether to disable unused components in the flow rule
int	abaqus_ndi = 3
	number of direct stress/strain components
int	abaqus_nshr = 3
	number of shear stress/strain components
std::string	abaqus_stiffness_type = "elastic"
T	abaqus_elastoplastic_stiffness_strain_increment_multiplier = 1.0
	multiplier for strain increment when computing elastoplastic stiffness matrix
bool	abaqus_check_stiffness_matrix_positive_definite = true
	whether to check the positive definiteness of the stiffness matrix
bool	abaqus_check_stiffness_matrix_non_singularity = true
	whether to check the non-singularity of the stiffness matrix
int	_phase = 0
	index of the phase
int	_step = 0
	current step
int	_mixedLoad = 0
	number of mixed load steps

Protected Member Functions
bool	isExplicit () const
	check if the plastic method is explicit
bool	isCPA () const
	check if the plastic method is CPA
bool	isCPPM () const
	check if the plastic method is CPPM
bool	isRungeKutta () const
	check if the plastic method is RungeKutta
void	stressStrainIntegrate (const Eigen::Matrix< T, 6, 6 > &K, const Eigen::Matrix< T, 6, 1 > &dsig, const Eigen::Matrix< T, 6, 1 > &deps, const StateVariable< T > &sv0, StateVariable< T > &sv) override
	Stress-strain integration.
void	returnMapping (const Eigen::Matrix< T, 6, 6 > &K, const Eigen::Matrix< T, 6, 1 > &dsig, const Eigen::Matrix< T, 6, 1 > &deps, const StateVariable< T > &sv0, StateVariable< T > &sv)
	return mapping algorithm to solve plastic problem (plastic strain and stress)
T	elasticTrial (const Eigen::Matrix< T, 6, 6 > &K, const Eigen::Matrix< T, 6, 1 > &deps, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Perform the elastic trial.
void	revertElasticTrial (const Eigen::Matrix< T, 6, 6 > &K, const Eigen::Matrix< T, 6, 1 > &deps, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Revert the elastic trial.
virtual void	beginConstantStressStateScope (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Begin the scope of a constant stress state which can be used to cache intermediate variables for the plastic correction, such as derivatives of the yield and plastic potential functions, and hardening law.
void	beginConstantStressStateScope1 (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Begin the scope of a constant stress state which can be used to cache intermediate variables for the plastic correction, such as derivatives of the yield and plastic potential functions, and hardening law.
virtual void	endConstantStressStateScope (const StateVariable< T > &sv0, StateVariable< T > &sv)
	End the scope of a constant stress state.
void	endConstantStressStateScope1 (const StateVariable< T > &sv0, StateVariable< T > &sv)
	End the scope of a constant stress state.
virtual bool	converged (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Whether the current stress state can be accepted as converged, used for elastoplastic substepping.
void	ExplicitCPA (const Eigen::Matrix< T, 6, 6 > &K, const Eigen::Matrix< T, 6, 1 > &deps, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Explicit/CPA methods for elastoplastic model.
void	CPPM (const Eigen::Matrix< T, 6, 6 > &K, const Eigen::Matrix< T, 6, 1 > &deps, const StateVariable< T > &sv0, StateVariable< T > &sv)
	CPPM method for elastoplastic model.
std::tuple< bool, T >	integrateToYieldSurface (const Eigen::Matrix< T, 6, 6 > &K, const Eigen::Matrix< T, 6, 1 > &deps, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Integrate stress state to the yield surface elastically, solve f(sig0 + alpha * K * deps) = 0.
std::tuple< Eigen::Matrix< T, 6, 6 >, Eigen::Matrix< T, 6, 1 >, Eigen::Matrix< T, 6, 1 >, Eigen::Matrix< T, Eigen::Dynamic, 1 >, Eigen::Matrix< T, Eigen::Dynamic, 6 > >	RKn (int n, const Eigen::Matrix< T, 6, 6 > &K, const Eigen::Matrix< T, 6, 1 > &deps, const StateVariable< T > &sv0, StateVariable< T > &sv, const bool revert=false)
	Perform a Runge-Kutta increment.
void	RungeKutta (const Eigen::Matrix< T, 6, 6 > &K, const Eigen::Matrix< T, 6, 1 > &deps, const StateVariable< T > &sv0, StateVariable< T > &sv, std::optional< int > order=std::nullopt)
	Runge-Kutta method for elastoplastic model.
virtual T	CSL (const StateVariable< T > &sv0, StateVariable< T > &sv) const
	calculate the critical state line
T	yieldFunction1 (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Yield function for elastoplastic model.
Eigen::Matrix< T, 6, 6 >	dsigadsig (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Derivative of the modified stress with respect to the stress.
virtual T	potentialFunction (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Potential function for elastoplastic model.
Eigen::Matrix< T, 6, 1 >	dgdsig0 (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Derivative of the potential function with respect to the stress.
virtual Eigen::Matrix< T, 6, 1 >	dgdsig (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Derivative of the potential function with respect to the stress.
Eigen::Matrix< T, 6, 1 >	dgdsig1 (const Eigen::Matrix< T, 6, 1 > &dfdsig, const StateVariable< T > &sv0, StateVariable< T > &sv, std::optional< bool > associated=std::nullopt)
	Derivative of the potential function with respect to the stress.
Eigen::Matrix< T, 6, 6 >	d2gdsig20 (const Eigen::Matrix< T, 6, 1 > &dfdsig, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Second-order derivative of the potential function with respect to the stress.
virtual Eigen::Matrix< T, 6, 6 >	d2gdsig2 (const Eigen::Matrix< T, 6, 1 > &dfdsig, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Second-order derivative of the potential function with respect to the stress.
Eigen::Matrix< T, 6, 6 >	d2gdsig21 (const Eigen::Matrix< T, 6, 1 > &dfdsig, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Second-order derivative of the potential function with respect to the stress.
virtual T	plasticModulus (const Eigen::Matrix< T, 6, 1 > &dgdsig, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Plastic modulus for elastoplastic model, including dgdsig.
T	plasticModulus1 (const Eigen::Matrix< T, 6, 1 > &dgdsig, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Plastic modulus for elastoplastic model, including dgdsig.
virtual void	updateHardeningVariables (const T ddlambda, const Eigen::Matrix< T, 6, 1 > &ddepsp, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Update the hardening variables.
virtual void	yieldFunctionCorrection (const Eigen::Matrix< T, 6, 6 > &K, const Eigen::Matrix< T, 6, 1 > &deps, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Yield surface correction to keep the force state on the yield surface.
Eigen::Matrix< T, 3, 3 >	orthogonalDirection (const Eigen::Matrix< T, 3, 3 > &F, const Eigen::Matrix< T, 3, 3 > &n) const
	Orthogonal direction.
Eigen::Matrix< T, 3, 3 >	nonCoaxialDirection (const Eigen::Matrix< T, 3, 3 > &F, const Eigen::Matrix< T, 3, 3 > &n, const Eigen::Matrix< T, 3, 3 > &m) const
	Non-coaxial direction.
void	interpolateFabricTensor (const StateVariable< T > &sv0, StateVariable< T > &sv, const bool clear_caches=true, std::optional< std::string > combined_stress_tensor_type=std::nullopt)
	Interpolate fabric tensor towards critical state.
Protected Member Functions inherited from constitutive::ConstitutiveModelBase< T >
bool	checkStiffnessMatrix (const Eigen::Matrix< T, 6, 6 > &K, std::optional< bool > check_positive_definite=std::nullopt, std::optional< bool > check_non_singularity=std::nullopt)
	Check whether the stiffness matrix is valid.
virtual void	fromAbaqus (StateVariable< T > &sv0, T *statev)=0
	Sync the state variables sv0 from abaqus statev.
virtual void	toAbaqus (const StateVariable< T > &sv0, StateVariable< T > &sv, T *statev)=0
	Sync the state variables sv to abaqus statev.
virtual StateVariable< T >	createStateVariable ()=0
	Create a new state variable object.
virtual void	initialize (StateVariable< T > &sv)=0
	Initialize the state variables.
T	updateVoidRatio (T e0, StateVariable< T > &sv)
	Update the void ratio after the isotropic loading to the void ratio before the isotropic loading.
virtual void	postInitialize (StateVariable< T > &sv)
	Post-initialize the state variables.
void	saveElasticStiffnessMatrix (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Save elastic stiffness matrix.
virtual void	postProcess (StateVariable< T > &sv)
	Post-process the state variables.
virtual void	preStressStrainIntegrate (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Pre-processing before the stress-strain integration.
virtual void	postStressStrainIntegrate (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Post-processing after the stress-strain integration.
virtual void	preIncrement (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Pre-processing before the increment.
virtual void	postIncrement (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Post-processing after the increment.
std::tuple< Eigen::Matrix< T, 6, 1 >, Eigen::Matrix< T, 6, 1 > >	linearize (const Eigen::Matrix< T, 6, 6 > &K, const Eigen::Matrix< T, 6, 1 > &dx, const Eigen::Matrix< T, 6, 6 > &S, const Eigen::Matrix< T, 6, 6 > &E, const Eigen::Matrix< T, 6, 6 > &G, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Linearize the stress and strain increment.
void	resetCustomStateVariables (StateVariable< T > &sv0, StateVariable< T > &sv)
	Reset the custom state variables to zeros existing in the current state variables but not in the initial state variables.
Eigen::Matrix< T, 3, 3 >	loadingDirection (const StateVariable< T > &sv0, StateVariable< T > &sv) const
	loading direction

Protected Attributes
std::string	state = "none"
bool	cached_ = false
	whether the state variables have been cached
Eigen::Matrix< T, 1, 6 >	dpadsiga = {-1.0 / 3.0, -1.0 / 3.0, -1.0 / 3.0, 0.0, 0.0, 0.0}
Eigen::Matrix< T, 1, 6 >	dqadtaua = Eigen::Matrix<T, 1, 6>::Zero()
Eigen::Matrix< T, 6, 6 >	dtauadsiga
Protected Attributes inherited from constitutive::ConstitutiveModelBase< T >
T	_e0 = 0.0
	original void ratio

Member Function Documentation

◆ beginConstantStressStateScope()

template<typename T>

virtual void constitutive::ElastoplasticModelBase< T >::beginConstantStressStateScope	(	const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inlineprotectedvirtual

Begin the scope of a constant stress state which can be used to cache intermediate variables for the plastic correction, such as derivatives of the yield and plastic potential functions, and hardening law.

Parameters

sv0	initial state variable
sv	current state variable

Reimplemented in elastoplastic::J2Yang< T >, and elastoplastic::SIMSAND< T >.

Referenced by beginConstantStressStateScope1().

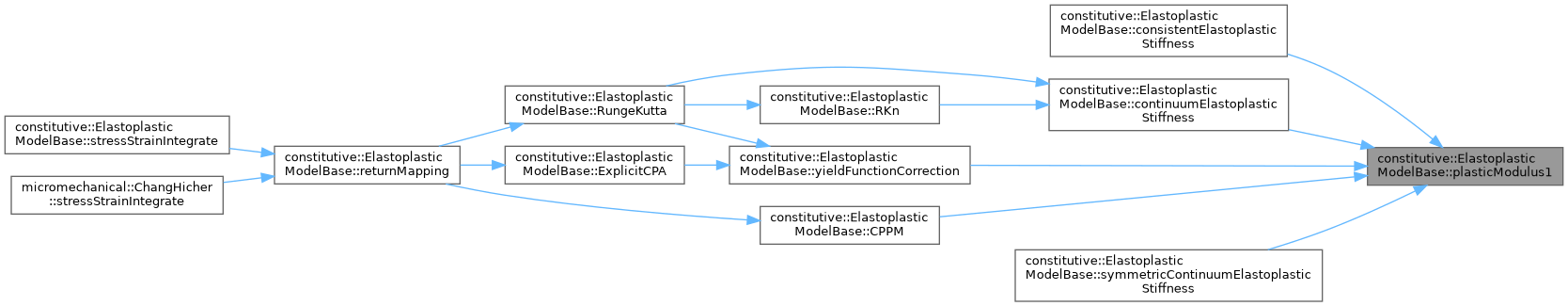

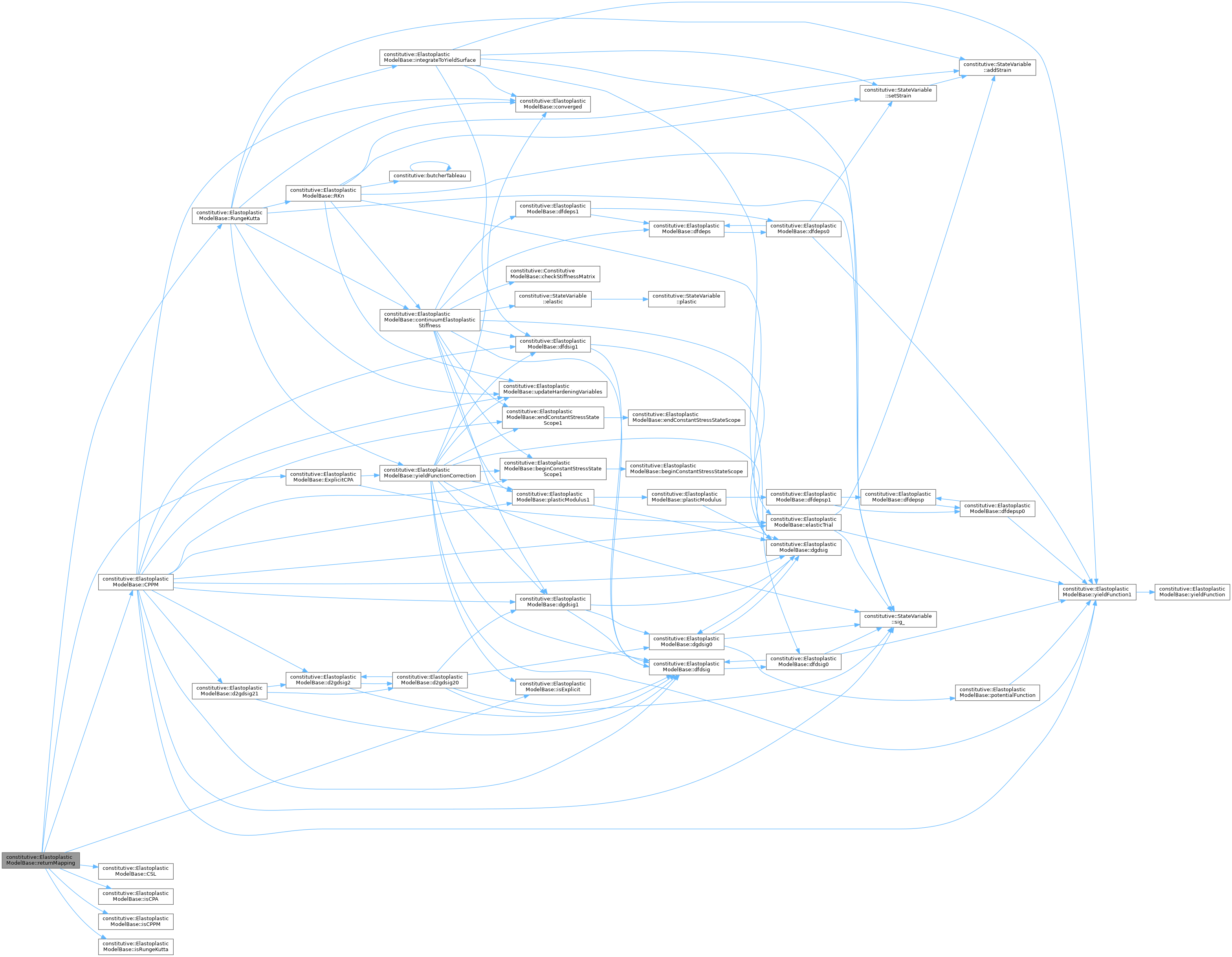

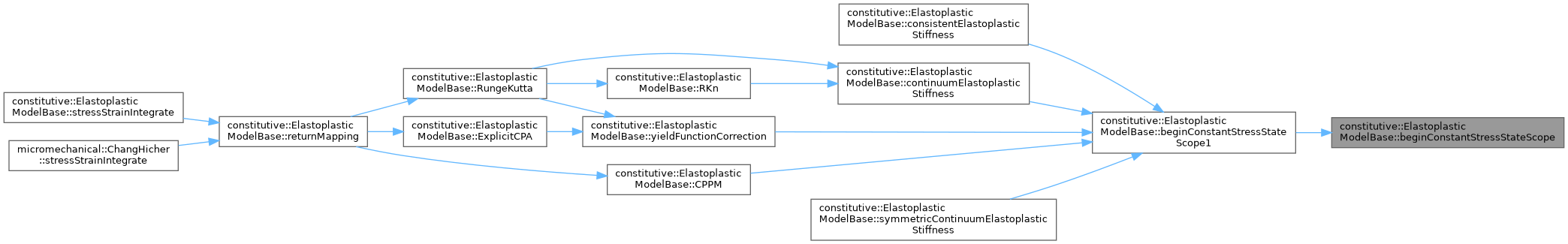

Here is the caller graph for this function:

◆ beginConstantStressStateScope1()

template<typename T>

void constitutive::ElastoplasticModelBase< T >::beginConstantStressStateScope1	(	const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inlineprotected

Begin the scope of a constant stress state which can be used to cache intermediate variables for the plastic correction, such as derivatives of the yield and plastic potential functions, and hardening law.

Parameters

sv0	initial state variable
sv	current state variable

References beginConstantStressStateScope(), constitutive::StateVariable< T >::F, and constitutive::ConstitutiveModelBase< T >::options.

Referenced by consistentElastoplasticStiffness(), continuumElastoplasticStiffness(), CPPM(), symmetricContinuumElastoplasticStiffness(), and yieldFunctionCorrection().

Here is the call graph for this function:

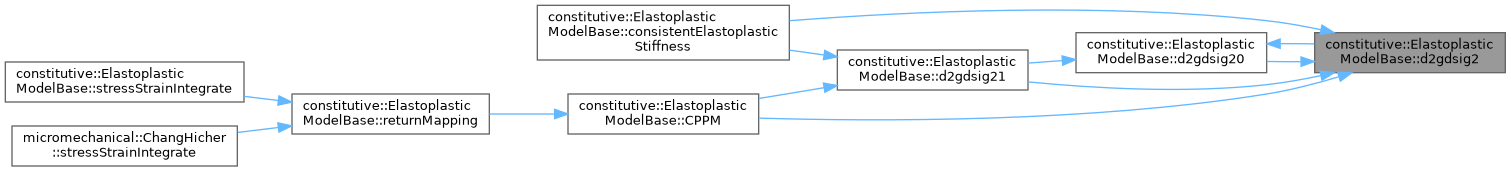

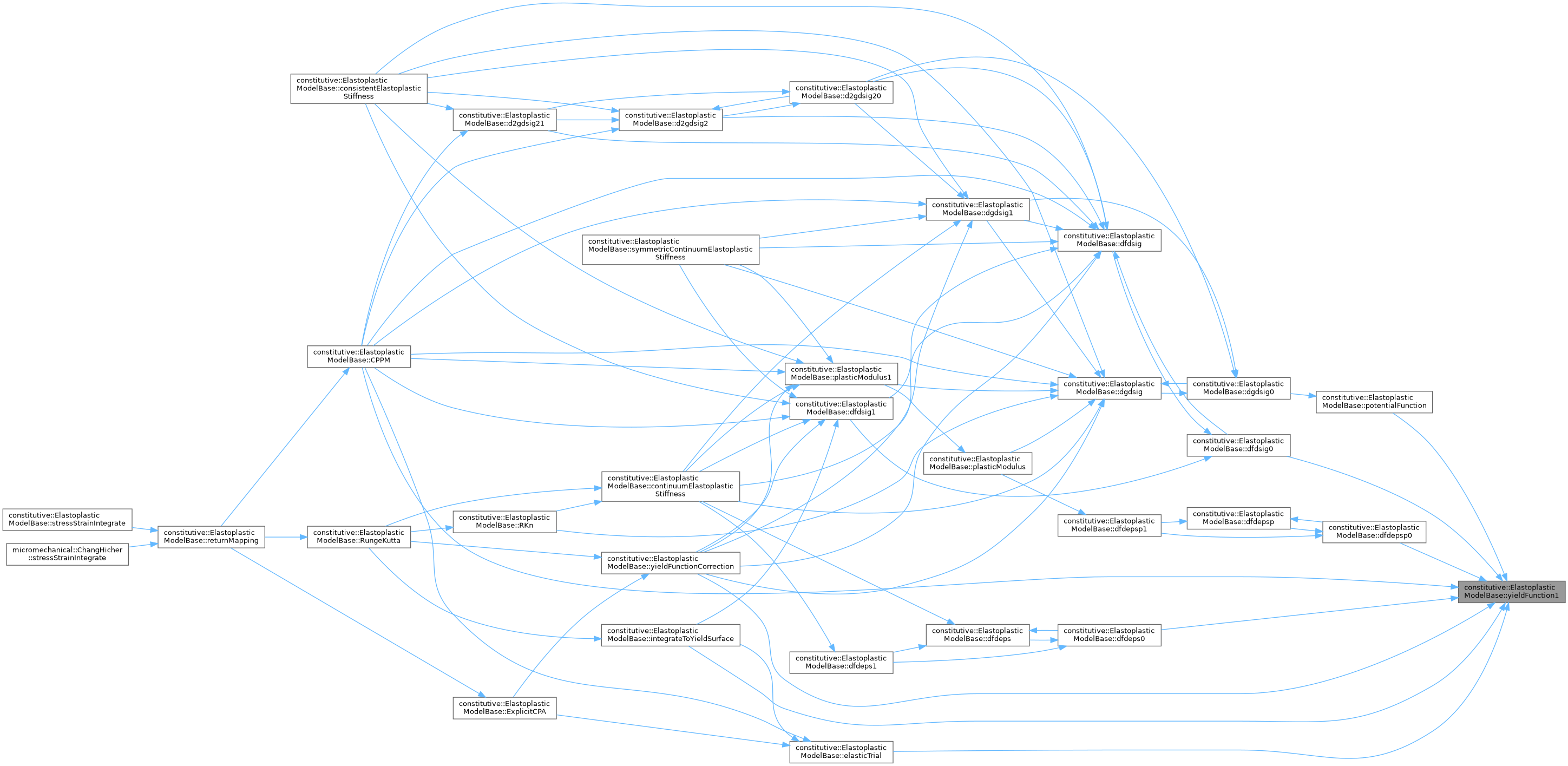

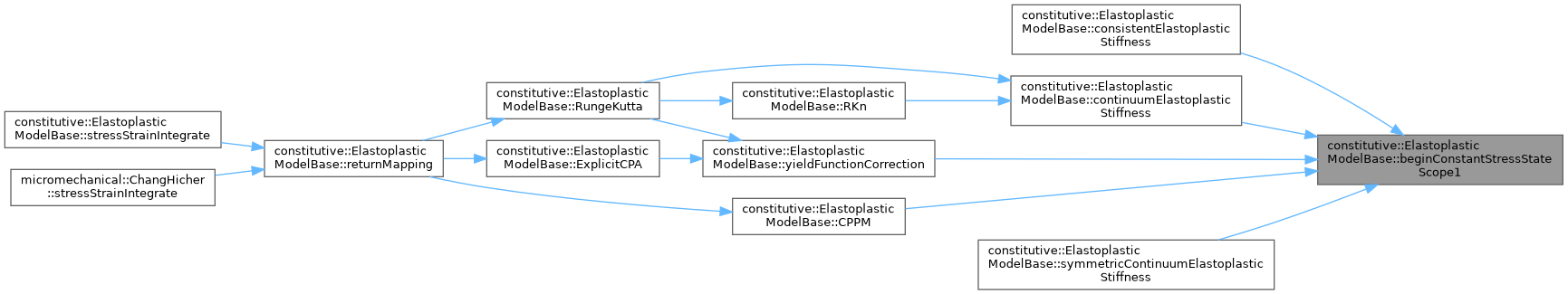

Here is the caller graph for this function:

◆ consistentElastoplasticStiffness()

template<typename T>

Eigen::Matrix< T, 6, 6 > constitutive::ElastoplasticModelBase< T >::consistentElastoplasticStiffness	(	const Eigen::Matrix< T, 6, 6 > &	K,
		const StateVariable< T > &	sv0,
		StateVariable< T > &	sv,
		bool	check_elastic_state = true,
		std::optional< bool >	check_positive_definite = std::nullopt,
		std::optional< bool >	check_non_singularity = std::nullopt )

inlineoverridevirtual

Parameters

K	stiffness matrix
sv0	initial state variable
sv	state variable
check_elastic_state	Whether to check if the current stress state is elastic
check_positive_definite	Whether to check the positive definiteness of the elastoplastic stiffness matrix
check_non_singularity	Whether to check the non-singularity of the elastoplastic stiffness matrix

Returns: consistent elastoplastic stiffness matrix

Reimplemented from constitutive::ConstitutiveModelBase< T >.

References beginConstantStressStateScope1(), constitutive::ConstitutiveModelBase< T >::checkStiffnessMatrix(), d2gdsig2(), d2gdsig21(), dfdsig(), dfdsig1(), dgdsig(), dgdsig1(), constitutive::StateVariable< T >::elastic(), endConstantStressStateScope1(), plasticModulus1(), and constitutive::StateVariable< T >::scalars.

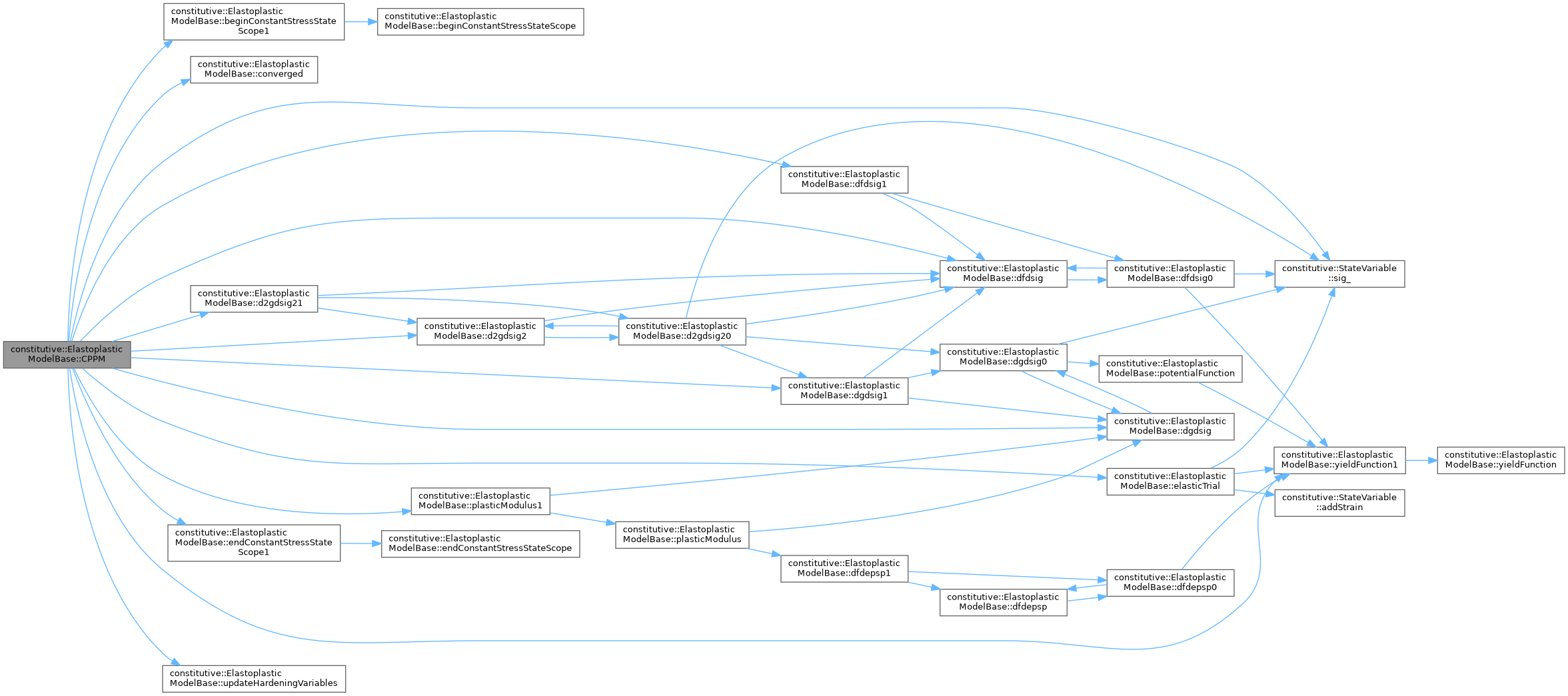

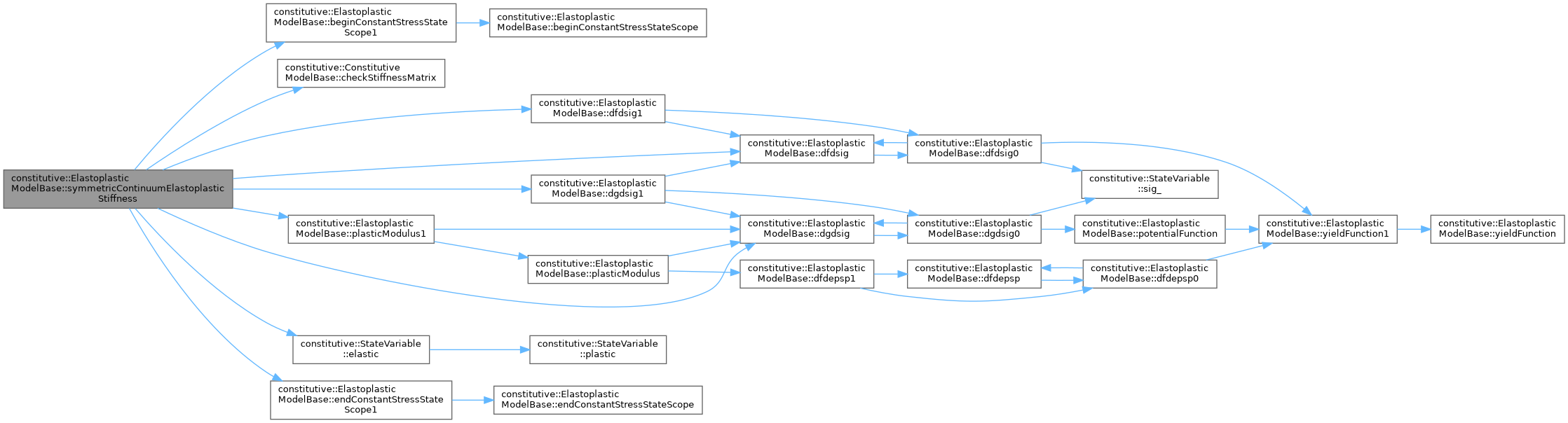

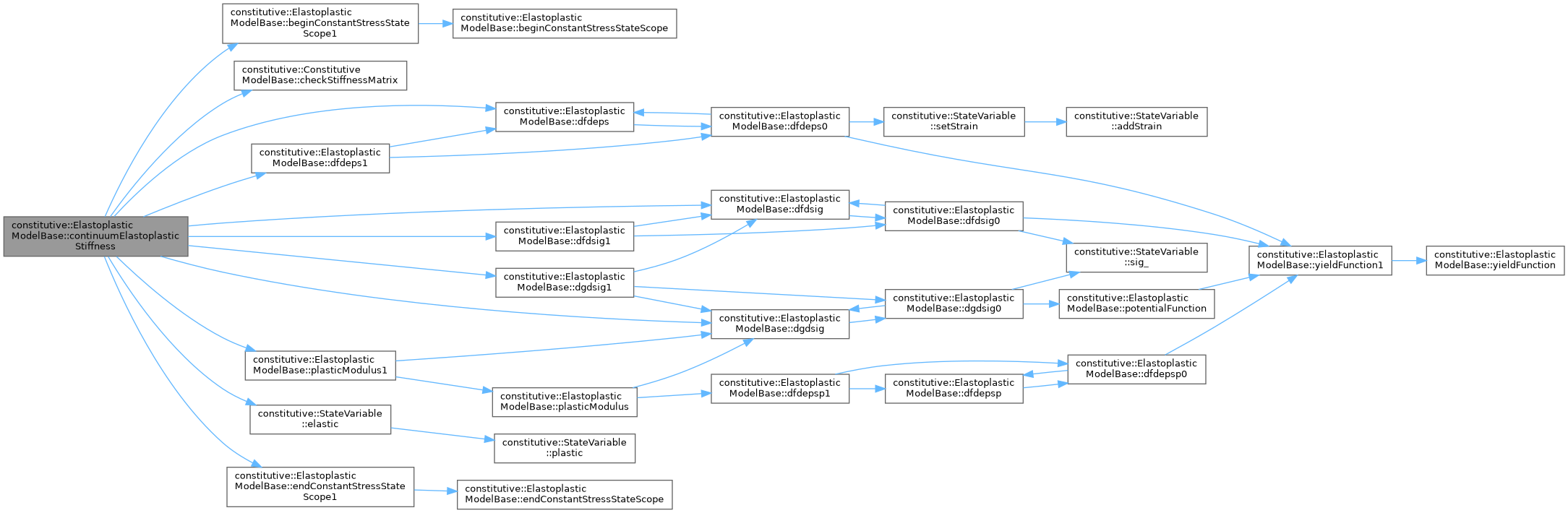

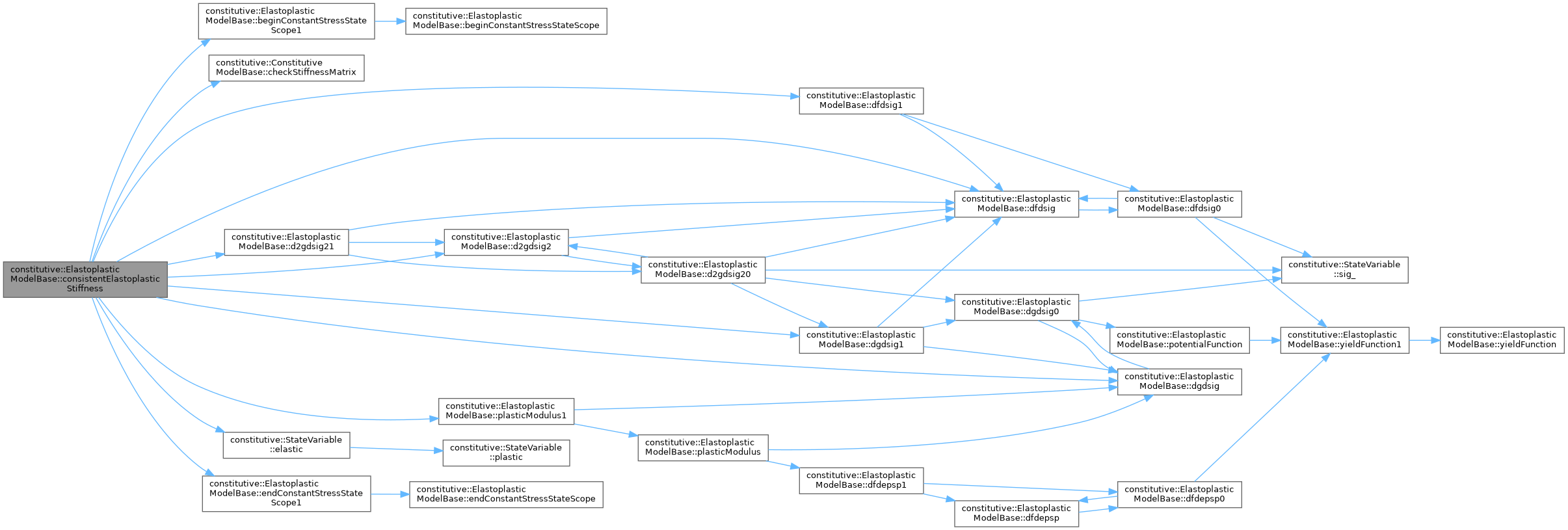

Here is the call graph for this function:

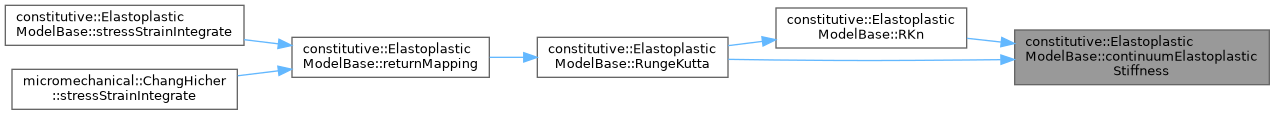

◆ continuumElastoplasticStiffness()

template<typename T>

Eigen::Matrix< T, 6, 6 > constitutive::ElastoplasticModelBase< T >::continuumElastoplasticStiffness	(	const Eigen::Matrix< T, 6, 6 > &	K,
		const StateVariable< T > &	sv0,
		StateVariable< T > &	sv,
		bool	check_elastic_state = true,
		std::optional< bool >	check_positive_definite = std::nullopt,
		std::optional< bool >	check_non_singularity = std::nullopt )

inlineoverridevirtual

Parameters

K	stiffness matrix
sv0	initial state variable
sv	state variable
check_elastic_state	Whether to check if the current stress state is elastic
check_positive_definite	Whether to check the positive definiteness of the elastoplastic stiffness matrix
check_non_singularity	Whether to check the non-singularity of the elastoplastic stiffness matrix

Returns: continuum elastoplastic stiffness matrix

Reimplemented from constitutive::ConstitutiveModelBase< T >.

References beginConstantStressStateScope1(), constitutive::ConstitutiveModelBase< T >::checkStiffnessMatrix(), dfdeps(), dfdeps1(), dfdsig(), dfdsig1(), dgdsig(), dgdsig1(), constitutive::StateVariable< T >::elastic(), endConstantStressStateScope1(), constitutive::ConstitutiveModelBase< T >::options, plasticModulus1(), and constitutive::StateVariable< T >::vectors.

Referenced by RKn(), and RungeKutta().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ converged()

template<typename T>

virtual bool constitutive::ElastoplasticModelBase< T >::converged	(	const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inlineprotectedvirtual

Whether the current stress state can be accepted as converged, used for elastoplastic substepping.

Parameters

sv0	initial state variable
sv	current state variable

Reimplemented in elastoplastic::core::ElastoplasticModel< T >.

Referenced by CPPM(), integrateToYieldSurface(), RungeKutta(), stressStrainIntegrate(), micromechanical::ChangHicher< T >::stressStrainIntegrate1(), and yieldFunctionCorrection().

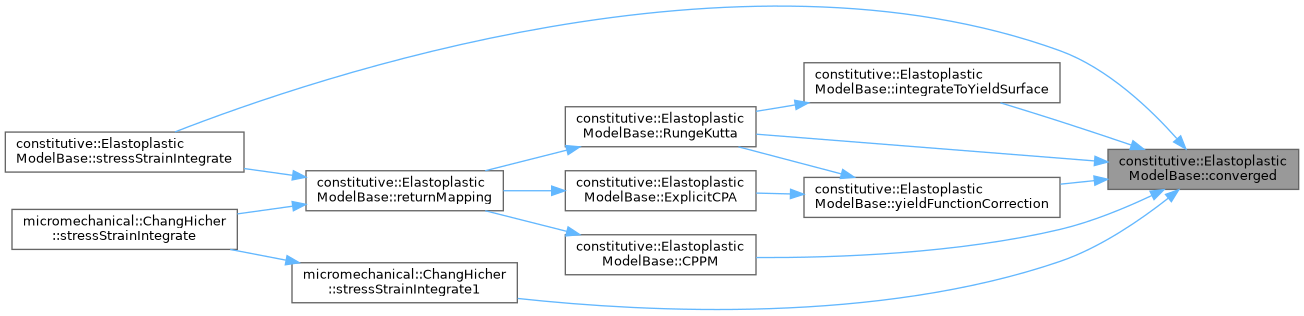

Here is the caller graph for this function:

◆ CPPM()

template<typename T>

void constitutive::ElastoplasticModelBase< T >::CPPM	(	const Eigen::Matrix< T, 6, 6 > &	K,
		const Eigen::Matrix< T, 6, 1 > &	deps,
		const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inlineprotected

CPPM method for elastoplastic model.

Parameters

K	stiffness matrix
deps	strain increment
sv0	initial state variable
sv	state variable

Returns: the elastoplastic stiffness matrix

References constitutive::ConstitutiveModelBase< T >::_mixedLoad, constitutive::ConstitutiveModelBase< T >::_phase, constitutive::ConstitutiveModelBase< T >::_step, beginConstantStressStateScope1(), converged(), d2gdsig2(), d2gdsig21(), constitutive::ConstitutiveModelBase< T >::debugVariable, dfdsig(), dfdsig1(), dgdsig(), dgdsig1(), elasticTrial(), endConstantStressStateScope1(), constitutive::StateVariable< T >::eps, constitutive::StateVariable< T >::epsp, constitutive::ConstitutiveModelBase< T >::options, plasticModulus1(), constitutive::StateVariable< T >::scalars, constitutive::StateVariable< T >::sig, constitutive::StateVariable< T >::sig_(), updateHardeningVariables(), and yieldFunction1().

Referenced by returnMapping().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CSL()

template<typename T>

virtual T constitutive::ElastoplasticModelBase< T >::CSL	(	const StateVariable< T > &	sv0,
		StateVariable< T > &	sv ) const

inlineprotectedvirtual

calculate the critical state line

Parameters

sv0	initial state variable
sv	state variable

Returns: the critical void ratio

Reimplemented in elastoplastic::core::CriticalStateLine< T >.

Referenced by elastoplastic::core::ElastoplasticModel< T >::createStateVariable(), elastoplastic::core::ElastoplasticModel< T >::dMpde(), elastoplastic::core::ElastoplasticModel< T >::dMpdec(), elastoplastic::core::ElastoplasticModel< T >::dMptde(), elastoplastic::core::ElastoplasticModel< T >::dMptdec(), returnMapping(), and elastoplastic::core::ElastoplasticModel< T >::stateParameter().

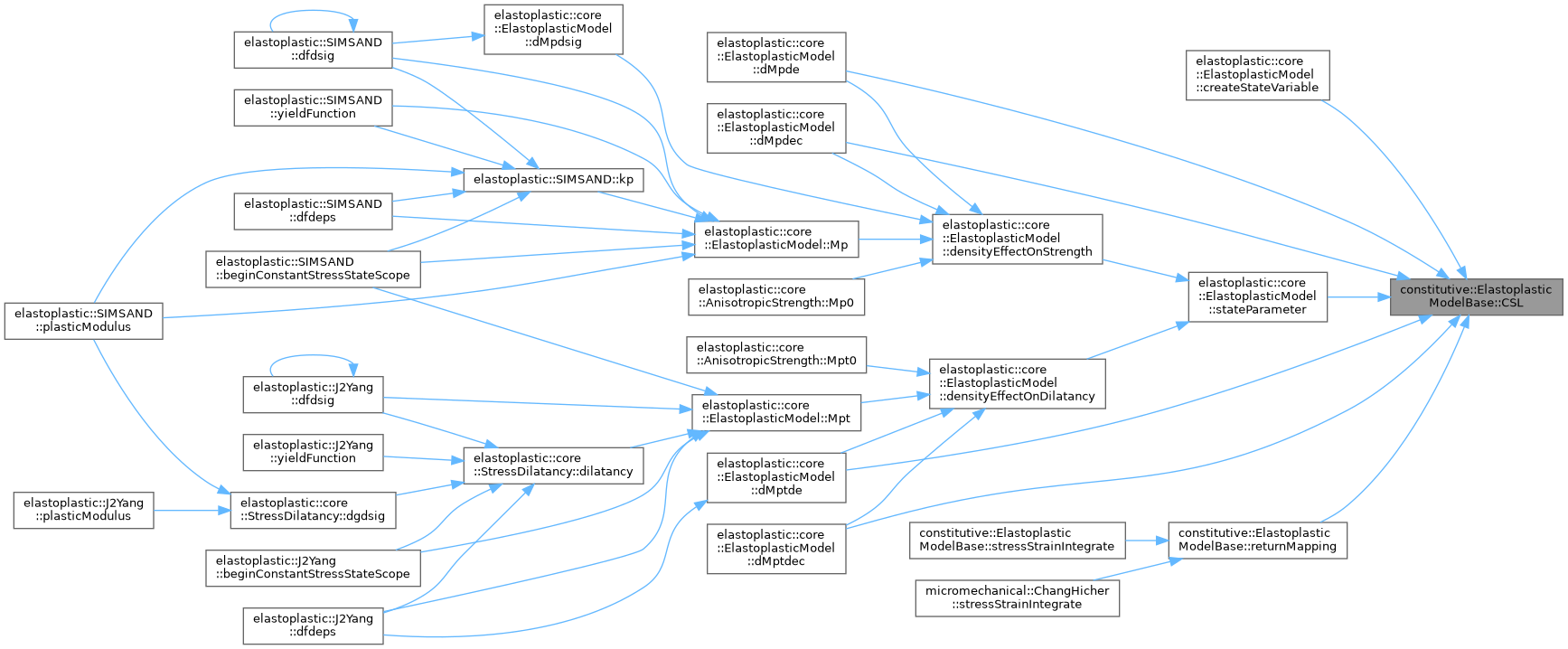

Here is the caller graph for this function:

◆ d2gdsig2()

template<typename T>

virtual Eigen::Matrix< T, 6, 6 > constitutive::ElastoplasticModelBase< T >::d2gdsig2	(	const Eigen::Matrix< T, 6, 1 > &	dfdsig,
		const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inlineprotectedvirtual

Second-order derivative of the potential function with respect to the stress.

Parameters

dfdsig	the derivative of the yield function with respect to the stress
sv0	initial state variable
sv	state variable

Returns: the derivative of the potential function with respect to the stress

References d2gdsig20(), and dfdsig().

Referenced by consistentElastoplasticStiffness(), CPPM(), d2gdsig20(), and d2gdsig21().

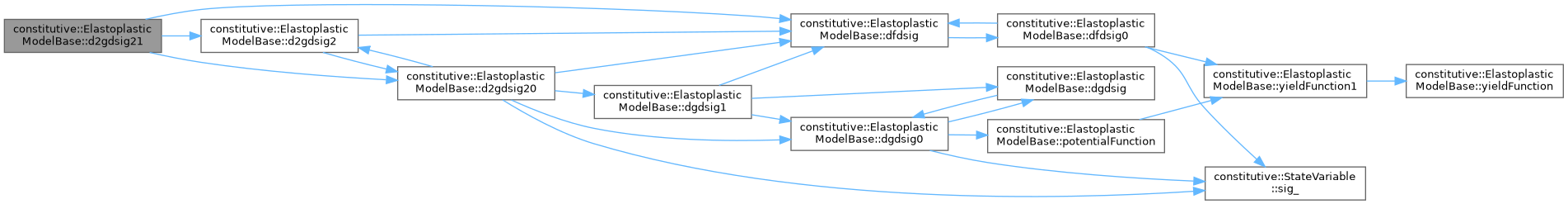

Here is the call graph for this function:

Here is the caller graph for this function:

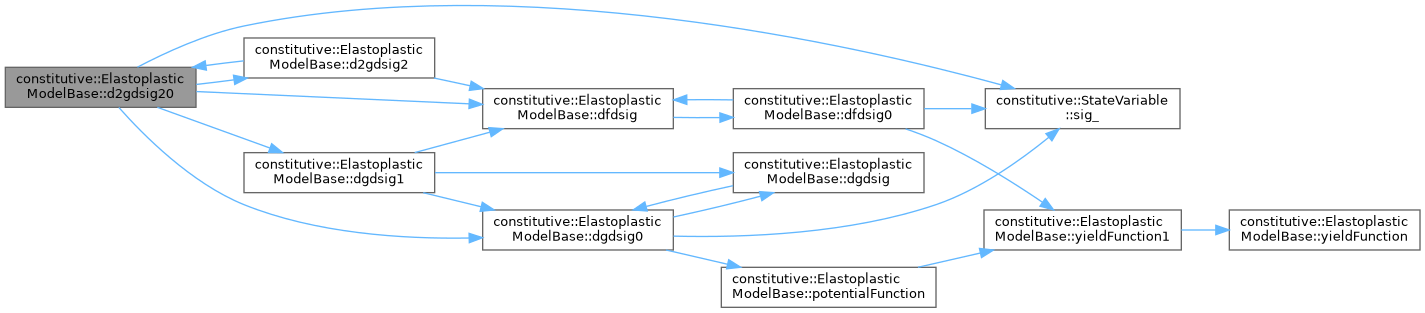

◆ d2gdsig20()

template<typename T>

Eigen::Matrix< T, 6, 6 > constitutive::ElastoplasticModelBase< T >::d2gdsig20	(	const Eigen::Matrix< T, 6, 1 > &	dfdsig,
		const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inlineprotected

Second-order derivative of the potential function with respect to the stress.

Parameters

dfdsig	the derivative of the yield function with respect to the stress
sv0	initial state variable
sv	state variable

Returns: the derivative of the potential function with respect to the stress

References d2gdsig2(), dfdsig(), dgdsig0(), dgdsig1(), constitutive::ConstitutiveModelBase< T >::options, constitutive::StateVariable< T >::sig, and constitutive::StateVariable< T >::sig_().

Referenced by d2gdsig2(), and d2gdsig21().

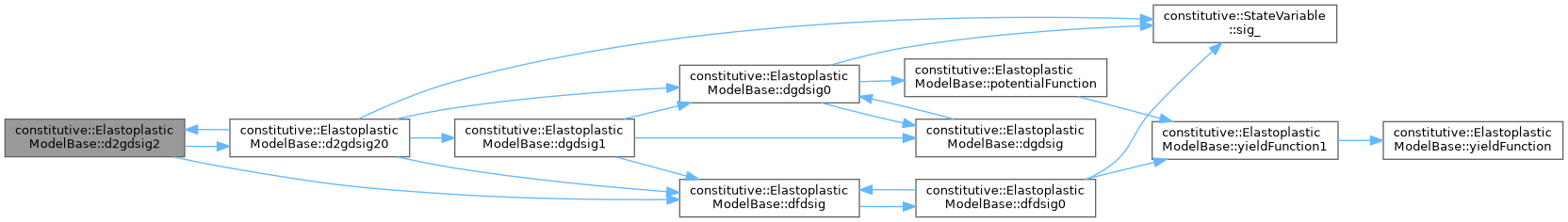

Here is the call graph for this function:

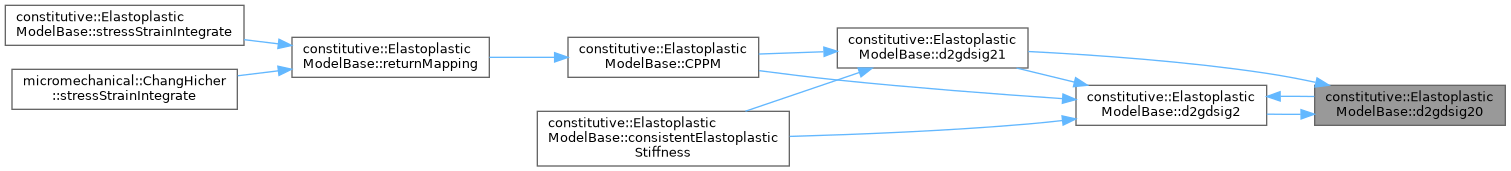

Here is the caller graph for this function:

◆ d2gdsig21()

template<typename T>

Eigen::Matrix< T, 6, 6 > constitutive::ElastoplasticModelBase< T >::d2gdsig21	(	const Eigen::Matrix< T, 6, 1 > &	dfdsig,
		const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inlineprotected

Second-order derivative of the potential function with respect to the stress.

Parameters

dfdsig	the derivative of the yield function with respect to the stress
sv0	initial state variable
sv	state variable

Returns: the derivative of the potential function with respect to the stress

References d2gdsig2(), d2gdsig20(), dfdsig(), and constitutive::ConstitutiveModelBase< T >::options.

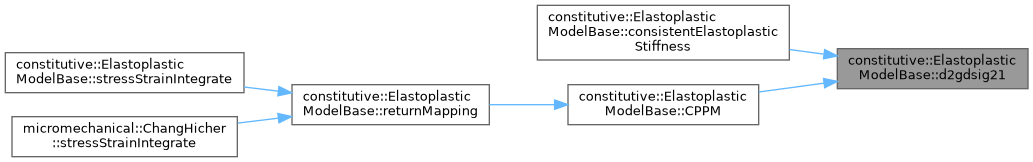

Referenced by consistentElastoplasticStiffness(), and CPPM().

Here is the call graph for this function:

Here is the caller graph for this function:

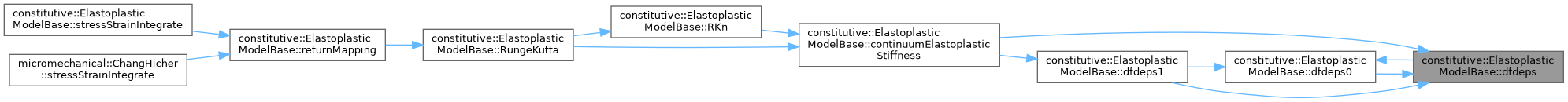

◆ dfdeps()

template<typename T>

virtual Eigen::Matrix< T, 6, 1 > constitutive::ElastoplasticModelBase< T >::dfdeps	(	const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inlinevirtual

Derivative of the yield function with respect to the strain.

Parameters

sv0	initial state variable
sv	state variable

Returns: the derivative of the yield function with respect to the strain

Reimplemented in elastoplastic::J2Yang< T >, and elastoplastic::SIMSAND< T >.

References dfdeps0().

Referenced by continuumElastoplasticStiffness(), dfdeps0(), and dfdeps1().

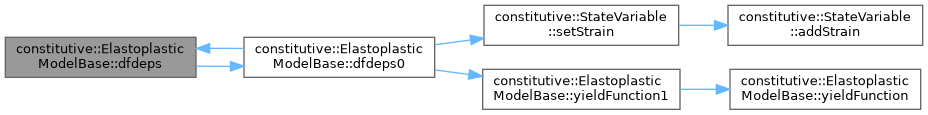

Here is the call graph for this function:

Here is the caller graph for this function:

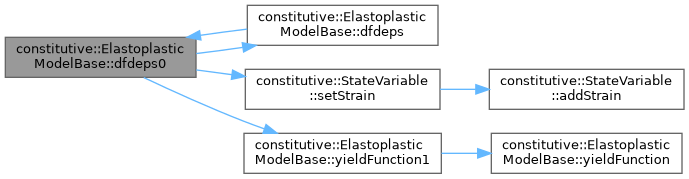

◆ dfdeps0()

template<typename T>

Eigen::Matrix< T, 6, 1 > constitutive::ElastoplasticModelBase< T >::dfdeps0	(	const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inline

Derivative of the yield function with respect to the strain.

Parameters

sv0	initial state variable
sv	state variable

Returns: the derivative of the yield function with respect to the strain

References dfdeps(), constitutive::StateVariable< T >::eps, constitutive::ConstitutiveModelBase< T >::options, constitutive::StateVariable< T >::setStrain(), and yieldFunction1().

Referenced by dfdeps(), and dfdeps1().

Here is the call graph for this function:

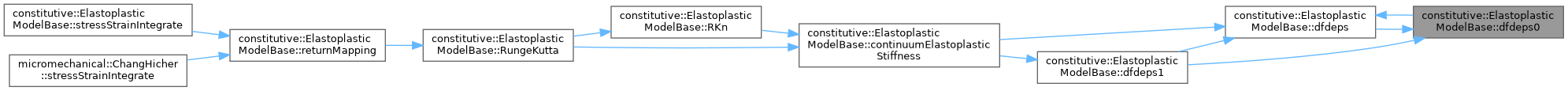

Here is the caller graph for this function:

◆ dfdeps1()

template<typename T>

Eigen::Matrix< T, 6, 1 > constitutive::ElastoplasticModelBase< T >::dfdeps1	(	const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inline

Derivative of the yield function with respect to the strain.

Parameters

sv0	initial state variable
sv	state variable

Returns: the derivative of the yield function with respect to the strain

References dfdeps(), dfdeps0(), constitutive::StateVariable< T >::F, and constitutive::ConstitutiveModelBase< T >::options.

Referenced by continuumElastoplasticStiffness().

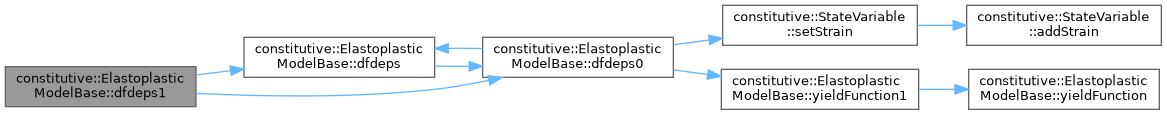

Here is the call graph for this function:

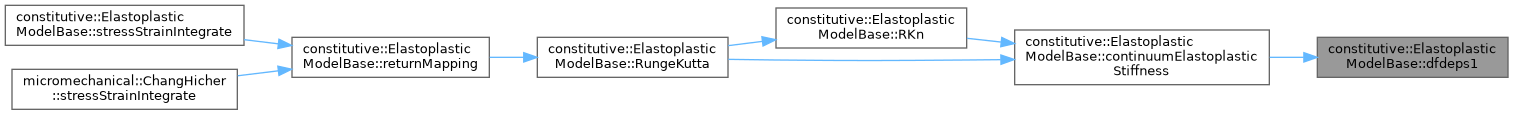

Here is the caller graph for this function:

◆ dfdepsp()

template<typename T>

virtual Eigen::Matrix< T, 6, 1 > constitutive::ElastoplasticModelBase< T >::dfdepsp	(	const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inlinevirtual

Derivative of the yield function with respect to the plastic strain.

Parameters

sv0	initial state variable
sv	state variable

Returns: the derivative of the yield function with respect to the plastic strain

Reimplemented in micromechanical::ChangHicher< T >.

References dfdepsp0().

Referenced by dfdepsp0(), and dfdepsp1().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ dfdepsp0()

template<typename T>

Eigen::Matrix< T, 6, 1 > constitutive::ElastoplasticModelBase< T >::dfdepsp0	(	const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inline

Derivative of the yield function with respect to the plastic strain.

Parameters

sv0	initial state variable
sv	state variable

Returns: the derivative of the yield function with respect to the plastic strain

References dfdepsp(), constitutive::StateVariable< T >::epsp, constitutive::ConstitutiveModelBase< T >::options, and yieldFunction1().

Referenced by dfdepsp(), and dfdepsp1().

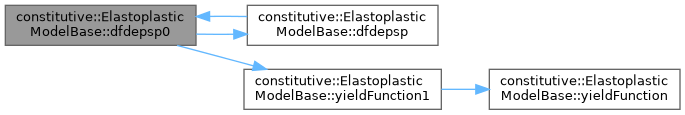

Here is the call graph for this function:

Here is the caller graph for this function:

◆ dfdepsp1()

template<typename T>

Eigen::Matrix< T, 6, 1 > constitutive::ElastoplasticModelBase< T >::dfdepsp1	(	const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inline

Derivative of the yield function with respect to the plastic strain.

Parameters

sv0	initial state variable
sv	state variable

Returns: the derivative of the yield function with respect to the plastic strain

References dfdepsp(), dfdepsp0(), constitutive::StateVariable< T >::F, and constitutive::ConstitutiveModelBase< T >::options.

Referenced by plasticModulus().

Here is the call graph for this function:

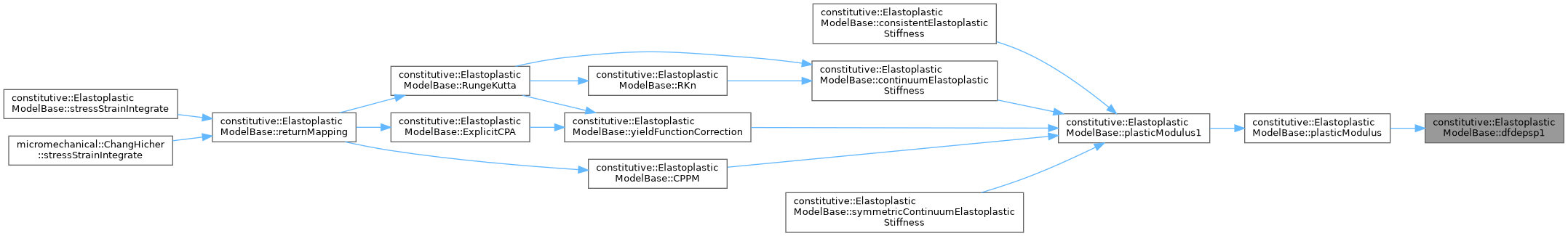

Here is the caller graph for this function:

◆ dfdsig()

template<typename T>

virtual Eigen::Matrix< T, 6, 1 > constitutive::ElastoplasticModelBase< T >::dfdsig	(	const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inlinevirtual

Derivative of the yield function with respect to the stress.

Parameters

sv0	initial state variable
sv	state variable

Returns: the derivative of the yield function with respect to the stress

Reimplemented in elastoplastic::J2Yang< T >, elastoplastic::SIMSAND< T >, and micromechanical::ChangHicher< T >.

References dfdsig0().

Referenced by consistentElastoplasticStiffness(), continuumElastoplasticStiffness(), CPPM(), d2gdsig2(), d2gdsig20(), d2gdsig21(), dfdsig0(), dfdsig1(), dgdsig1(), symmetricContinuumElastoplasticStiffness(), and yieldFunctionCorrection().

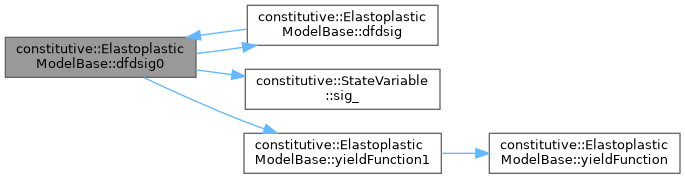

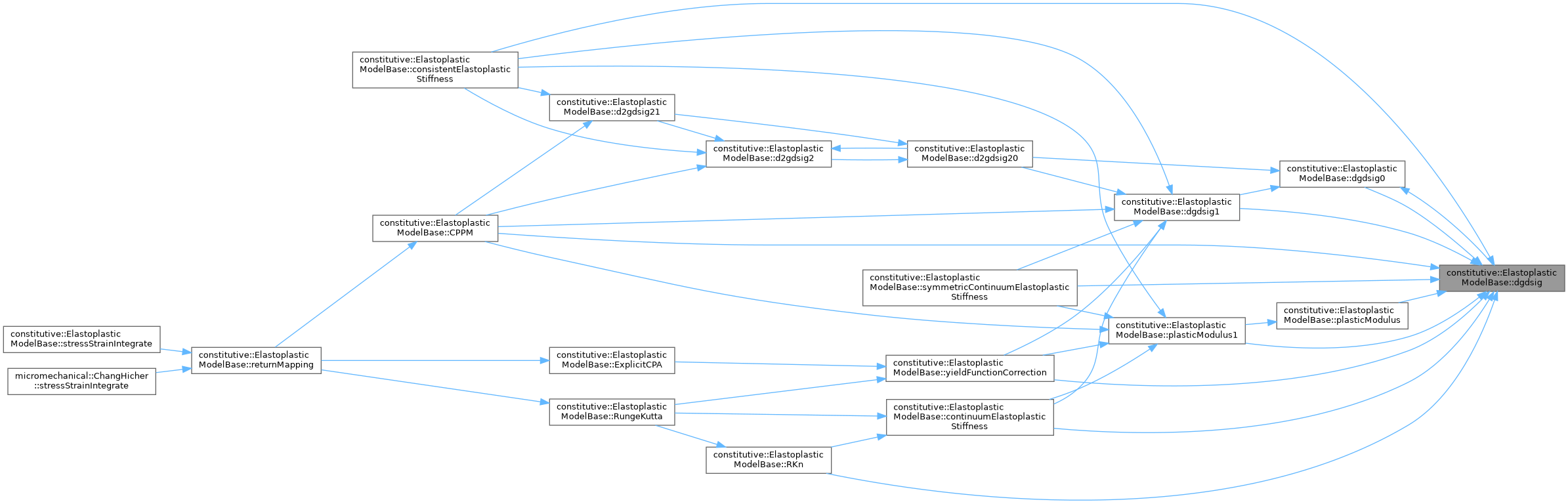

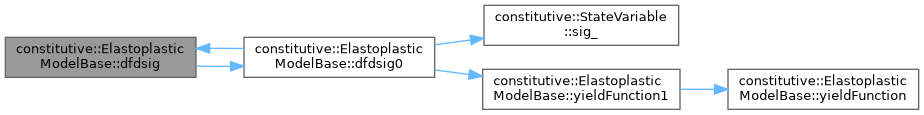

Here is the call graph for this function:

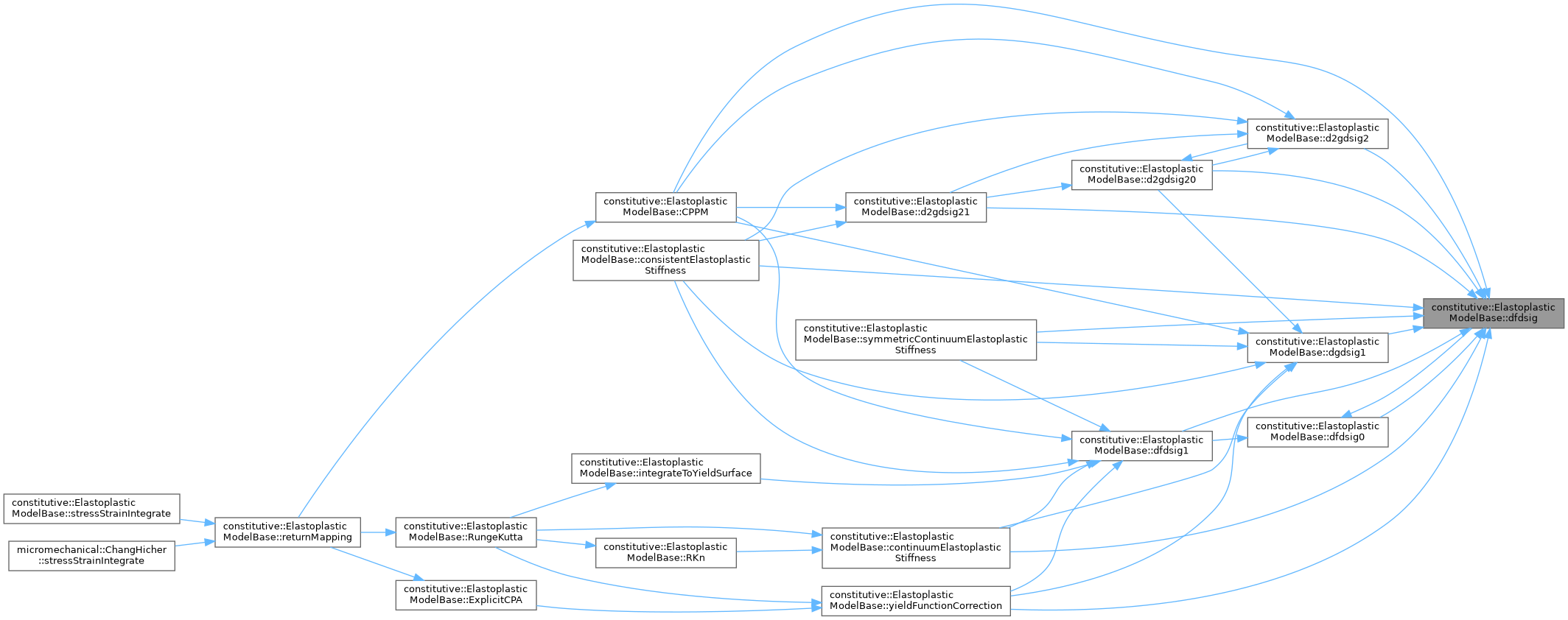

Here is the caller graph for this function:

◆ dfdsig0()

template<typename T>

Eigen::Matrix< T, 6, 1 > constitutive::ElastoplasticModelBase< T >::dfdsig0	(	const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inline

Derivative of the yield function with respect to the stress.

Parameters

sv0	initial state variable
sv	state variable

Returns: the derivative of the yield function with respect to the stress

References dfdsig(), constitutive::ConstitutiveModelBase< T >::options, constitutive::StateVariable< T >::sig, constitutive::StateVariable< T >::sig_(), and yieldFunction1().

Referenced by dfdsig(), and dfdsig1().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ dfdsig1()

template<typename T>

Eigen::Matrix< T, 6, 1 > constitutive::ElastoplasticModelBase< T >::dfdsig1	(	const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inline

Derivative of the yield function with respect to the stress.

Parameters

sv0	initial state variable
sv	state variable

Returns: the derivative of the yield function with respect to the stress

References dfdsig(), dfdsig0(), constitutive::StateVariable< T >::F, and constitutive::ConstitutiveModelBase< T >::options.

Referenced by consistentElastoplasticStiffness(), continuumElastoplasticStiffness(), CPPM(), integrateToYieldSurface(), symmetricContinuumElastoplasticStiffness(), and yieldFunctionCorrection().

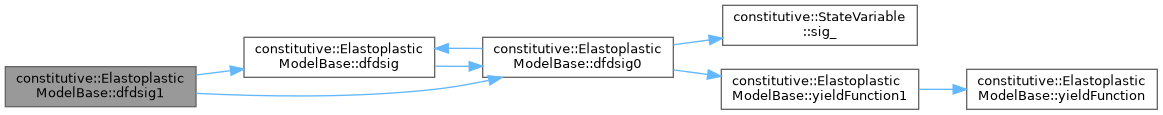

Here is the call graph for this function:

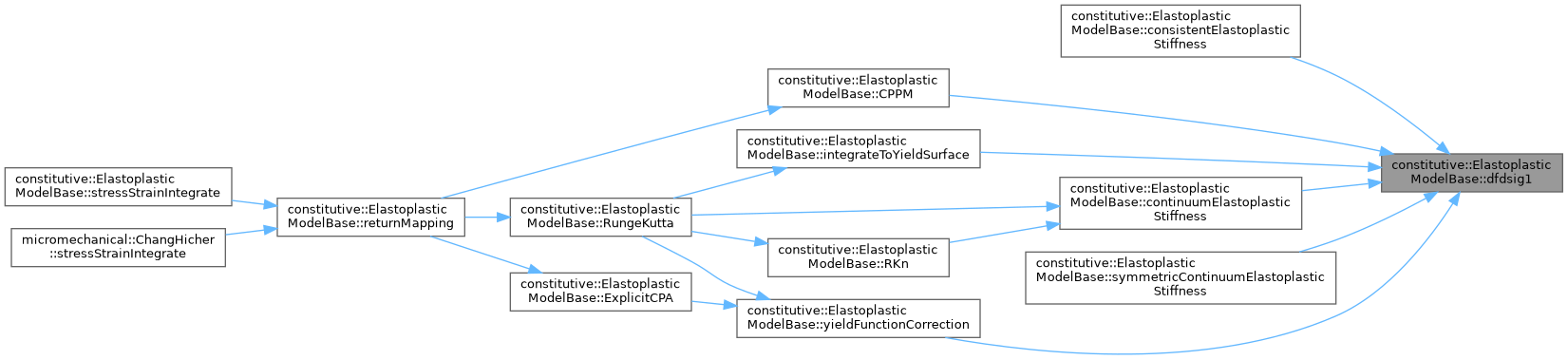

Here is the caller graph for this function:

◆ dgdsig()

template<typename T>

virtual Eigen::Matrix< T, 6, 1 > constitutive::ElastoplasticModelBase< T >::dgdsig	(	const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inlineprotectedvirtual

Derivative of the potential function with respect to the stress.

Parameters

sv0	initial state variable
sv	state variable

Returns: the derivative of the potential function with respect to the stress

Reimplemented in elastoplastic::core::StressDilatancy< T >, and micromechanical::ChangHicher< T >.

References dgdsig0().

Referenced by consistentElastoplasticStiffness(), continuumElastoplasticStiffness(), CPPM(), dgdsig0(), dgdsig1(), plasticModulus(), plasticModulus1(), RKn(), symmetricContinuumElastoplasticStiffness(), and yieldFunctionCorrection().

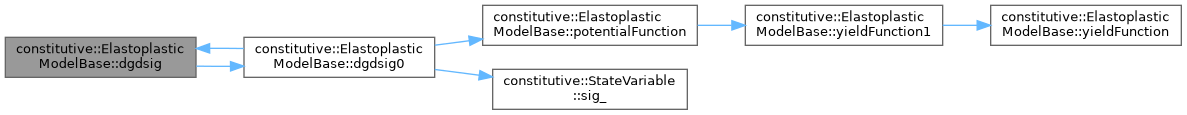

Here is the call graph for this function:

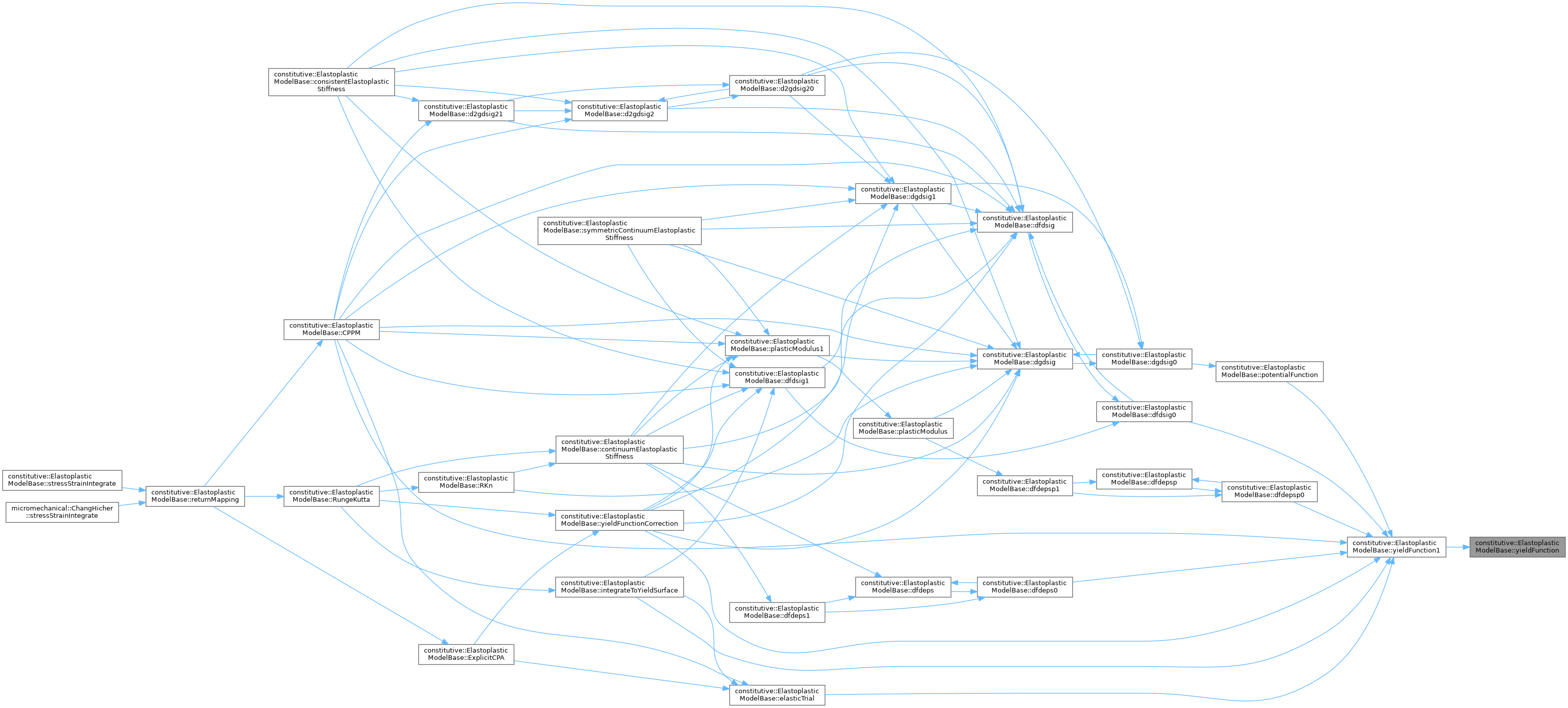

Here is the caller graph for this function:

◆ dgdsig0()

template<typename T>

Eigen::Matrix< T, 6, 1 > constitutive::ElastoplasticModelBase< T >::dgdsig0	(	const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inlineprotected

Derivative of the potential function with respect to the stress.

Parameters

sv0	initial state variable
sv	state variable

Returns: the derivative of the potential function with respect to the stress

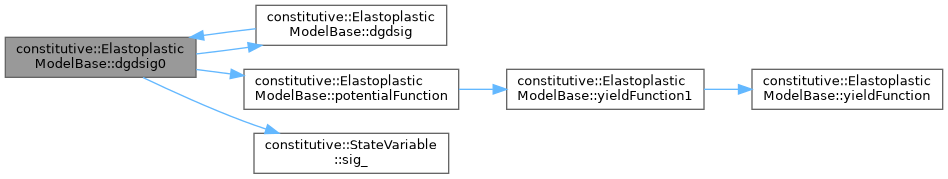

References dgdsig(), constitutive::ConstitutiveModelBase< T >::options, potentialFunction(), constitutive::StateVariable< T >::sig, and constitutive::StateVariable< T >::sig_().

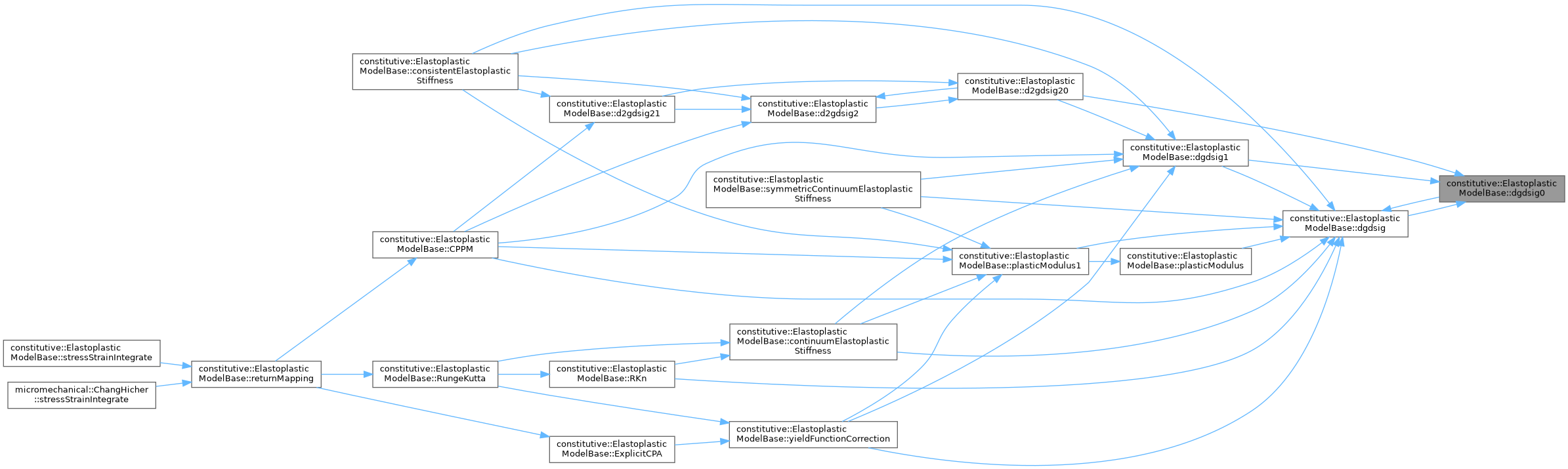

Referenced by d2gdsig20(), dgdsig(), and dgdsig1().

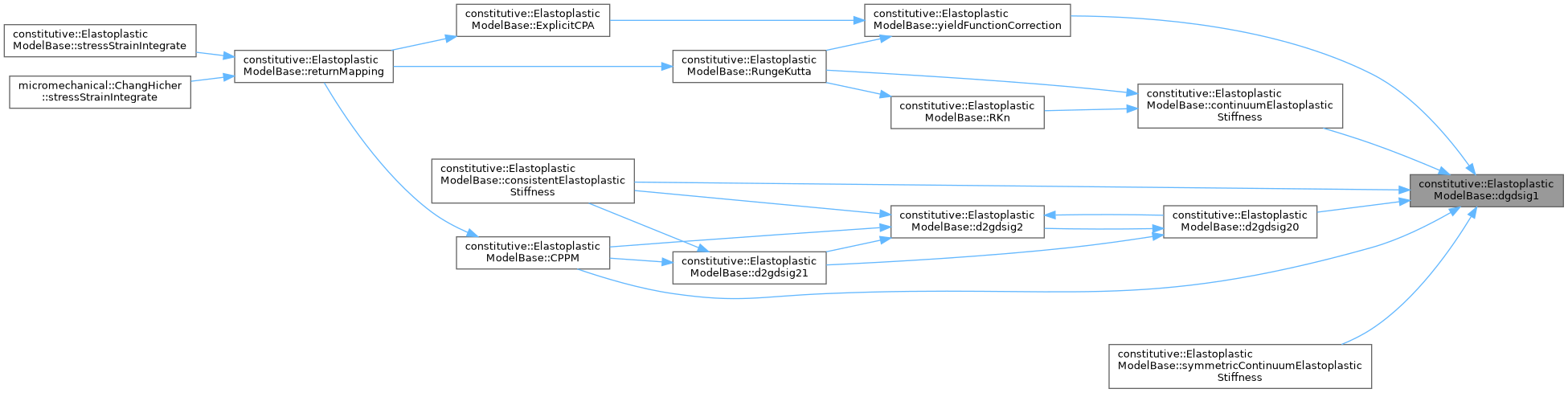

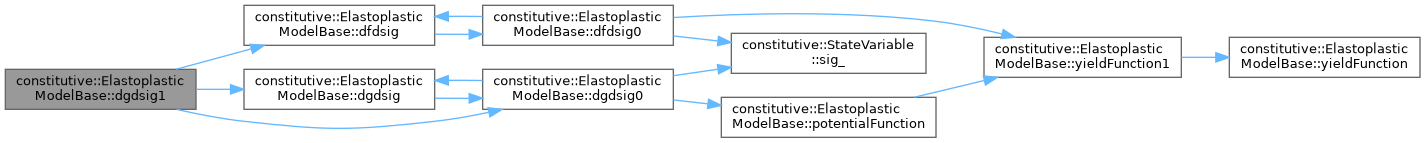

Here is the call graph for this function:

Here is the caller graph for this function:

◆ dgdsig1()

template<typename T>

Eigen::Matrix< T, 6, 1 > constitutive::ElastoplasticModelBase< T >::dgdsig1	(	const Eigen::Matrix< T, 6, 1 > &	dfdsig,
		const StateVariable< T > &	sv0,
		StateVariable< T > &	sv,
		std::optional< bool >	associated = std::nullopt )

inlineprotected

Derivative of the potential function with respect to the stress.

Parameters

dfdsig	the derivative of the yield function with respect to the stress
sv0	initial state variable
sv	state variable
associated	whether to override the option to use associated flow rule

Returns: the derivative of the potential function with respect to the stress

References constitutive::ConstitutiveModelBase< T >::abaqus_disable_unused_components, constitutive::ConstitutiveModelBase< T >::abaqus_ndi, constitutive::ConstitutiveModelBase< T >::abaqus_nshr, dfdsig(), dgdsig(), dgdsig0(), and constitutive::ConstitutiveModelBase< T >::options.

Referenced by consistentElastoplasticStiffness(), continuumElastoplasticStiffness(), CPPM(), d2gdsig20(), symmetricContinuumElastoplasticStiffness(), and yieldFunctionCorrection().

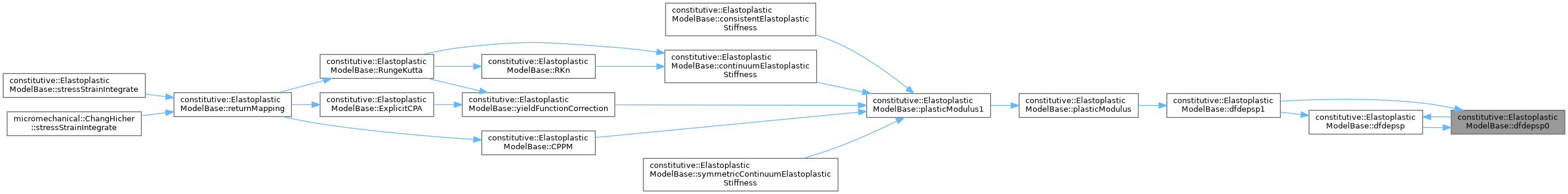

Here is the call graph for this function:

Here is the caller graph for this function:

◆ dsigadsig()

template<typename T>

Eigen::Matrix< T, 6, 6 > constitutive::ElastoplasticModelBase< T >::dsigadsig	(	const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inlineprotected

Derivative of the modified stress with respect to the stress.

Parameters

sv0	initial state variable
sv	state variable

References constitutive::StateVariable< T >::Aij(), and constitutive::ConstitutiveModelBase< T >::options.

Referenced by elastoplastic::J2Yang< T >::dfdsig(), elastoplastic::SIMSAND< T >::dfdsig(), elastoplastic::core::StressDilatancy< T >::dgdsig(), and stressStrainIntegrate().

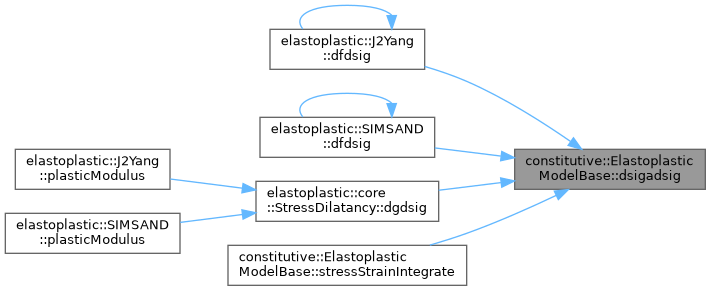

Here is the call graph for this function:

Here is the caller graph for this function:

◆ elasticTrial()

template<typename T>

T constitutive::ElastoplasticModelBase< T >::elasticTrial	(	const Eigen::Matrix< T, 6, 6 > &	K,
		const Eigen::Matrix< T, 6, 1 > &	deps,
		const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inlineprotected

Perform the elastic trial.

Parameters

K	stiffness matrix
deps	strain increment
sv0	initial state variable
sv	state variable

Returns: yield function value after the elastic trial

References constitutive::ConstitutiveModelBase< T >::abaqus_disable_unused_components, constitutive::ConstitutiveModelBase< T >::abaqus_ndi, constitutive::ConstitutiveModelBase< T >::abaqus_nshr, constitutive::StateVariable< T >::addStrain(), constitutive::ConstitutiveModelBase< T >::options, constitutive::StateVariable< T >::scalars, constitutive::StateVariable< T >::sig_(), and yieldFunction1().

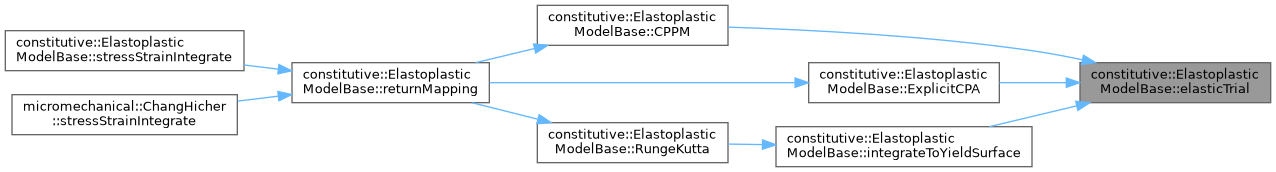

Referenced by CPPM(), ExplicitCPA(), and integrateToYieldSurface().

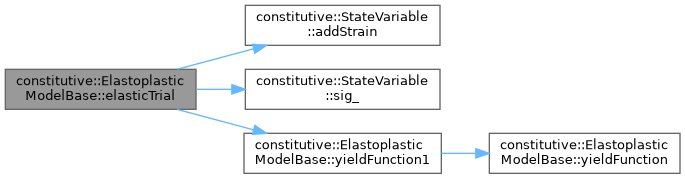

Here is the call graph for this function:

Here is the caller graph for this function:

◆ endConstantStressStateScope()

template<typename T>

virtual void constitutive::ElastoplasticModelBase< T >::endConstantStressStateScope	(	const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inlineprotectedvirtual

End the scope of a constant stress state.

Parameters

sv0	initial state variable
sv	current state variable

Referenced by endConstantStressStateScope1().

Here is the caller graph for this function:

◆ endConstantStressStateScope1()

template<typename T>

void constitutive::ElastoplasticModelBase< T >::endConstantStressStateScope1	(	const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inlineprotected

End the scope of a constant stress state.

Parameters

sv0	initial state variable
sv	current state variable

References endConstantStressStateScope(), and constitutive::ConstitutiveModelBase< T >::options.

Referenced by consistentElastoplasticStiffness(), continuumElastoplasticStiffness(), CPPM(), symmetricContinuumElastoplasticStiffness(), and yieldFunctionCorrection().

Here is the call graph for this function:

Here is the caller graph for this function:

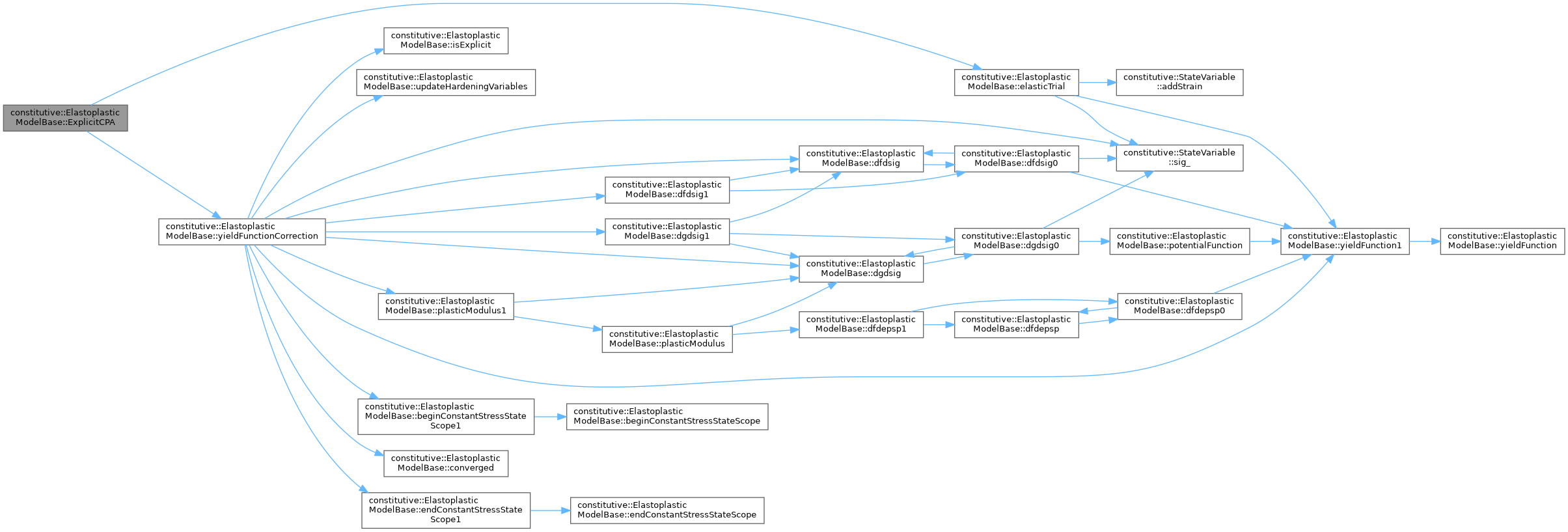

◆ ExplicitCPA()

template<typename T>

void constitutive::ElastoplasticModelBase< T >::ExplicitCPA	(	const Eigen::Matrix< T, 6, 6 > &	K,
		const Eigen::Matrix< T, 6, 1 > &	deps,
		const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inlineprotected

Explicit/CPA methods for elastoplastic model.

Parameters

K	stiffness matrix
deps	strain increment
sv0	initial state variable
sv	state variable

Returns: the elastoplastic stiffness matrix

References elasticTrial(), constitutive::StateVariable< T >::vectors, and yieldFunctionCorrection().

Referenced by returnMapping().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ integrateToYieldSurface()

template<typename T>

std::tuple< bool, T > constitutive::ElastoplasticModelBase< T >::integrateToYieldSurface	(	const Eigen::Matrix< T, 6, 6 > &	K,
		const Eigen::Matrix< T, 6, 1 > &	deps,
		const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inlineprotected

Integrate stress state to the yield surface elastically, solve f(sig0 + alpha * K * deps) = 0.

Parameters

K	stiffness matrix
deps	strain increment
sv0	initial state variable
sv	state variable

Returns: Whether the stress state is plastic, and the alpha parameter

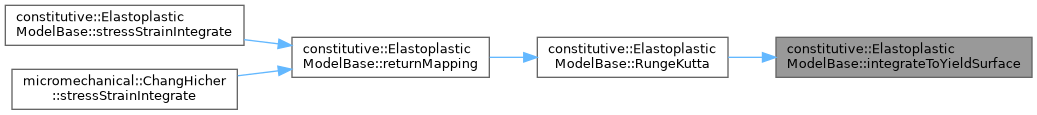

References converged(), dfdsig1(), elasticTrial(), constitutive::StateVariable< T >::eps, constitutive::ConstitutiveModelBase< T >::options, constitutive::StateVariable< T >::setStrain(), constitutive::StateVariable< T >::sig, constitutive::StateVariable< T >::sig_(), and yieldFunction1().

Referenced by RungeKutta().

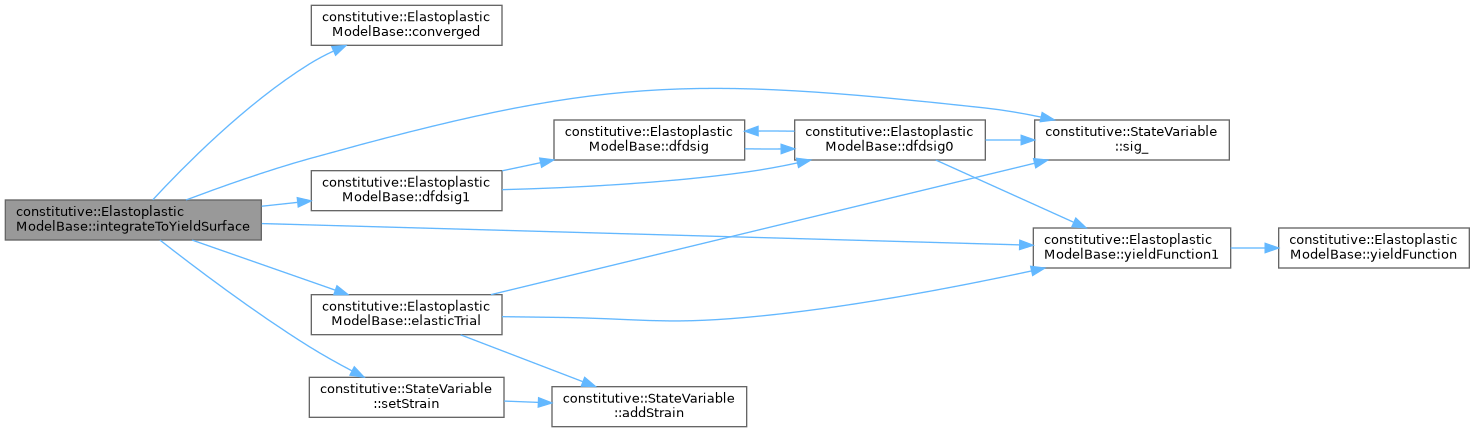

Here is the call graph for this function:

Here is the caller graph for this function:

◆ interpolateFabricTensor()

template<typename T>

void constitutive::ElastoplasticModelBase< T >::interpolateFabricTensor	(	const StateVariable< T > &	sv0,
		StateVariable< T > &	sv,
		const bool	clear_caches = true,
		std::optional< std::string >	combined_stress_tensor_type = std::nullopt )

inlineprotected

Interpolate fabric tensor towards critical state.

References constitutive::StateVariable< T >::F_(), constitutive::StateVariable< T >::FAV(), constitutive::StateVariable< T >::Fij(), constitutive::ConstitutiveModelBase< T >::loadingDirection(), constitutive::mat2vec(), nonCoaxialDirection(), constitutive::ConstitutiveModelBase< T >::options, orthogonalDirection(), and constitutive::StateVariable< T >::scalars.

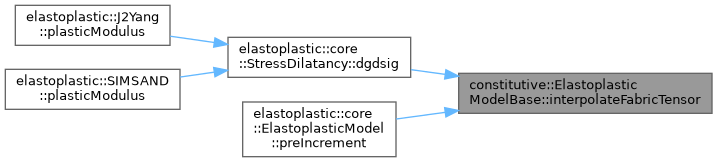

Referenced by elastoplastic::core::StressDilatancy< T >::dgdsig(), and elastoplastic::core::ElastoplasticModel< T >::preIncrement().

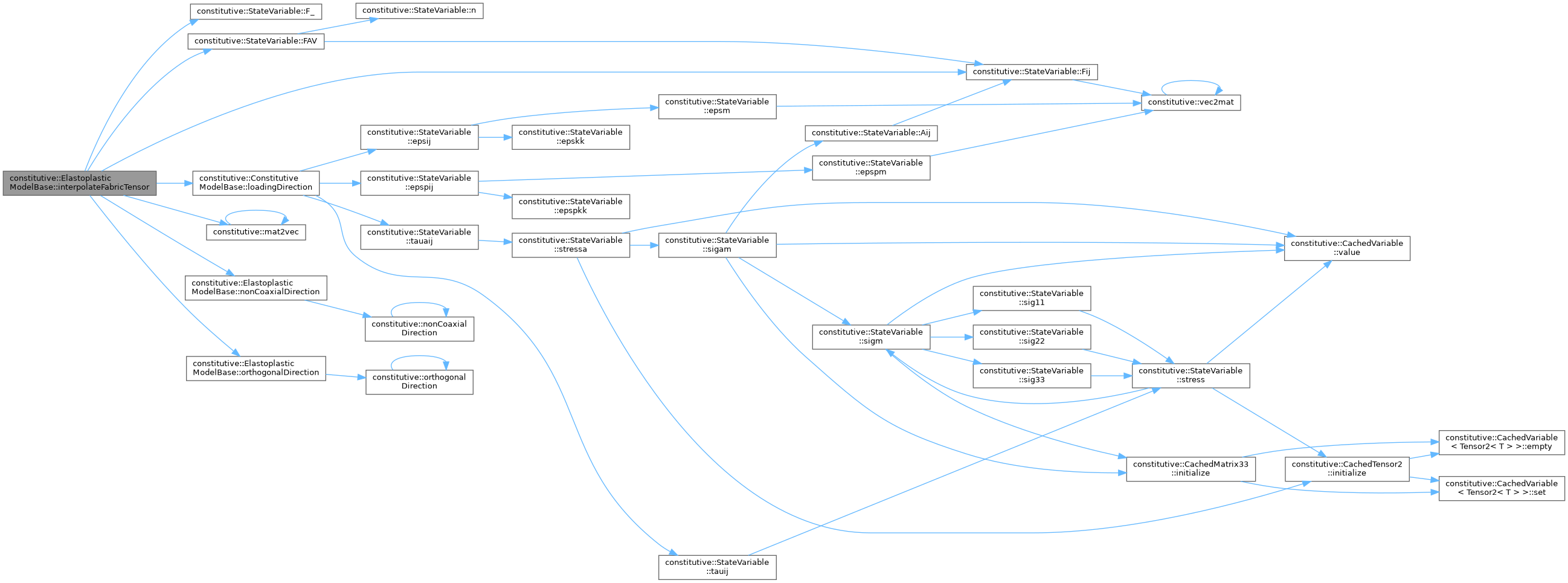

Here is the call graph for this function:

Here is the caller graph for this function:

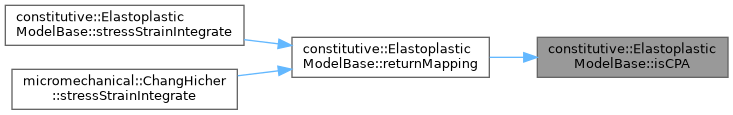

◆ isCPA()

template<typename T>

bool constitutive::ElastoplasticModelBase< T >::isCPA ( ) const

inlineprotected

check if the plastic method is CPA

Returns: true if the plastic method is CPA, false otherwise

Referenced by returnMapping().

Here is the caller graph for this function:

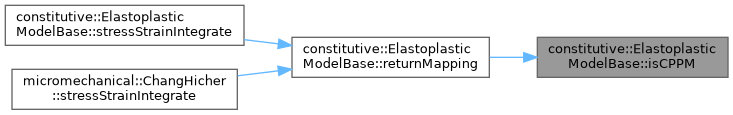

◆ isCPPM()

template<typename T>

bool constitutive::ElastoplasticModelBase< T >::isCPPM ( ) const

inlineprotected

check if the plastic method is CPPM

Returns: true if the plastic method is CPPM, false otherwise

Referenced by returnMapping().

Here is the caller graph for this function:

◆ isExplicit()

template<typename T>

bool constitutive::ElastoplasticModelBase< T >::isExplicit ( ) const

inlineprotected

check if the plastic method is explicit

Returns: true if the plastic method is explicit, false otherwise

Referenced by returnMapping(), and yieldFunctionCorrection().

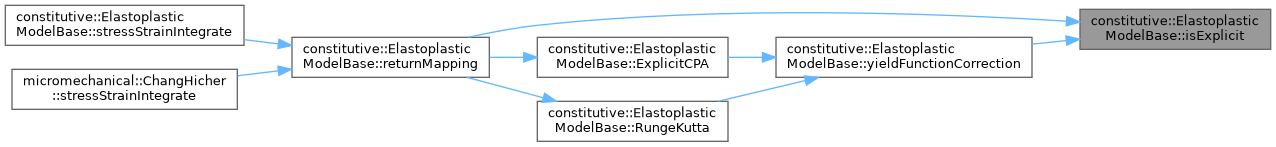

Here is the caller graph for this function:

◆ isRungeKutta()

template<typename T>

bool constitutive::ElastoplasticModelBase< T >::isRungeKutta ( ) const

inlineprotected

check if the plastic method is RungeKutta

Returns: true if the plastic method is RungeKutta, false otherwise

Referenced by returnMapping().

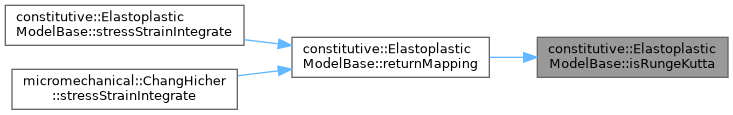

Here is the caller graph for this function:

◆ nonCoaxialDirection()

template<typename T>

Eigen::Matrix< T, 3, 3 > constitutive::ElastoplasticModelBase< T >::nonCoaxialDirection	(	const Eigen::Matrix< T, 3, 3 > &	F,
		const Eigen::Matrix< T, 3, 3 > &	n,
		const Eigen::Matrix< T, 3, 3 > &	m ) const

inlineprotected

Non-coaxial direction.

References constitutive::nonCoaxialDirection().

Referenced by interpolateFabricTensor(), and elastoplastic::core::ElastoplasticModel< T >::stateParameter().

Here is the call graph for this function:

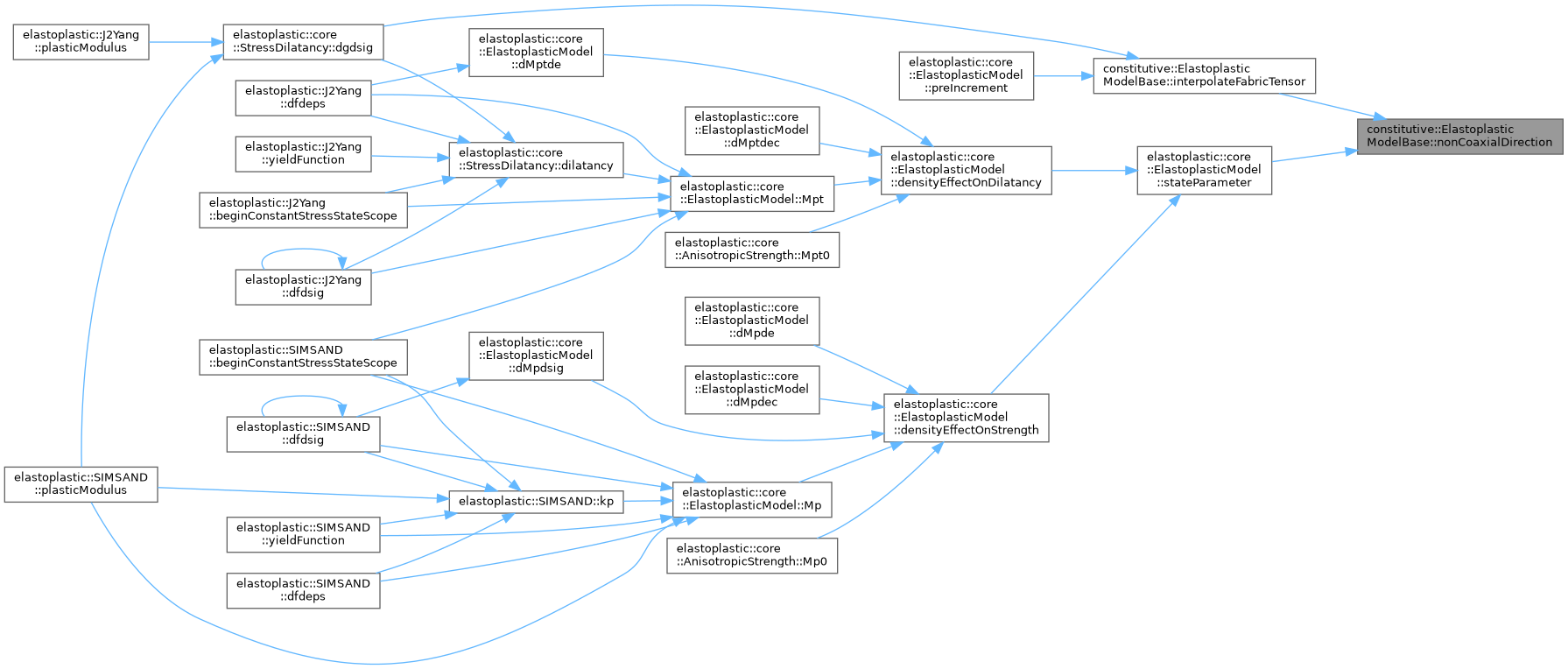

Here is the caller graph for this function:

◆ orthogonalDirection()

template<typename T>

Eigen::Matrix< T, 3, 3 > constitutive::ElastoplasticModelBase< T >::orthogonalDirection	(	const Eigen::Matrix< T, 3, 3 > &	F,
		const Eigen::Matrix< T, 3, 3 > &	n ) const

inlineprotected

Orthogonal direction.

References constitutive::orthogonalDirection().

Referenced by interpolateFabricTensor(), and elastoplastic::core::ElastoplasticModel< T >::stateParameter().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ plasticModulus()

template<typename T>

virtual T constitutive::ElastoplasticModelBase< T >::plasticModulus	(	const Eigen::Matrix< T, 6, 1 > &	dgdsig,
		const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inlineprotectedvirtual

Plastic modulus for elastoplastic model, including dgdsig.

Parameters

dgdsig	derivative of the potential function with respect to the stress
sv0	initial state variable
sv	state variable

Returns: the plastic modulus

Reimplemented in elastoplastic::J2Yang< T >, and elastoplastic::SIMSAND< T >.

References dfdepsp1(), and dgdsig().

Referenced by plasticModulus1().

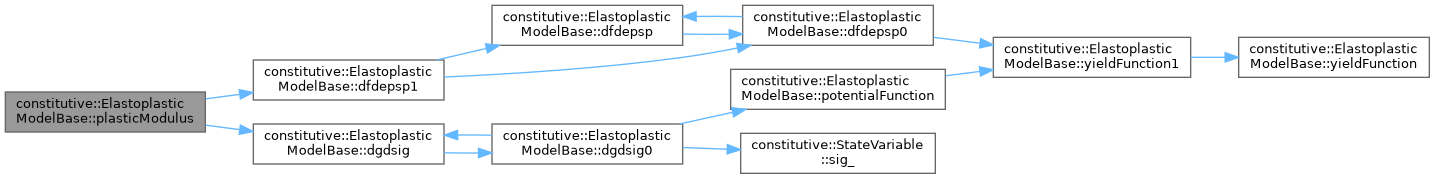

Here is the call graph for this function:

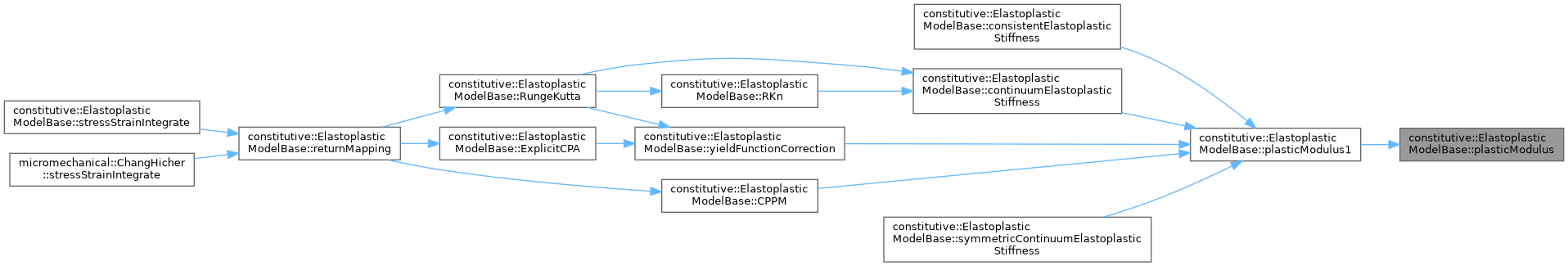

Here is the caller graph for this function:

◆ plasticModulus1()

template<typename T>

T constitutive::ElastoplasticModelBase< T >::plasticModulus1	(	const Eigen::Matrix< T, 6, 1 > &	dgdsig,
		const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inlineprotected

Plastic modulus for elastoplastic model, including dgdsig.

Parameters

dgdsig	derivative of the potential function with respect to the stress
sv0	initial state variable
sv	state variable

Returns: the plastic modulus

References dgdsig(), constitutive::StateVariable< T >::F, constitutive::ConstitutiveModelBase< T >::options, and plasticModulus().

Referenced by consistentElastoplasticStiffness(), continuumElastoplasticStiffness(), CPPM(), symmetricContinuumElastoplasticStiffness(), and yieldFunctionCorrection().

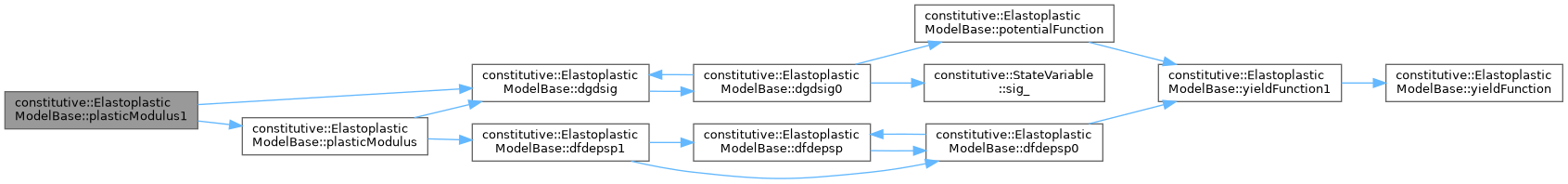

Here is the call graph for this function:

Here is the caller graph for this function:

◆ potentialFunction()

template<typename T>

virtual T constitutive::ElastoplasticModelBase< T >::potentialFunction	(	const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inlineprotectedvirtual

Potential function for elastoplastic model.

Parameters

sv0	initial state variable
sv	state variable

Returns: the potential function

Reimplemented in elastoplastic::core::StressDilatancy< T >, and elastoplastic::MohrCoulomb< T >.

References yieldFunction1().

Referenced by dgdsig0().

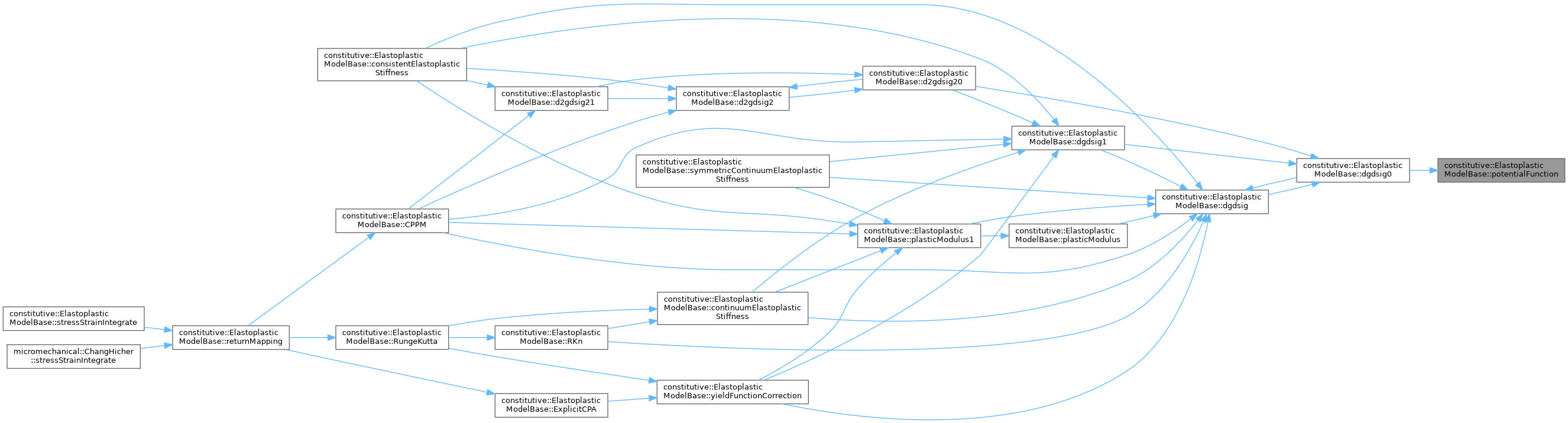

Here is the call graph for this function:

Here is the caller graph for this function:

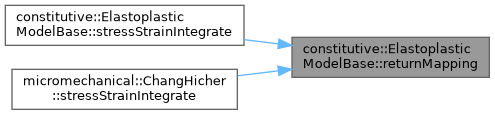

◆ returnMapping()

template<typename T>

void constitutive::ElastoplasticModelBase< T >::returnMapping	(	const Eigen::Matrix< T, 6, 6 > &	K,
		const Eigen::Matrix< T, 6, 1 > &	dsig,
		const Eigen::Matrix< T, 6, 1 > &	deps,
		const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inlineprotected

return mapping algorithm to solve plastic problem (plastic strain and stress)

References constitutive::ConstitutiveModelBase< T >::_mixedLoad, constitutive::ConstitutiveModelBase< T >::_phase, constitutive::ConstitutiveModelBase< T >::_step, CPPM(), CSL(), constitutive::ConstitutiveModelBase< T >::debugVariable, constitutive::StateVariable< T >::e, constitutive::StateVariable< T >::ec, ExplicitCPA(), isCPA(), isCPPM(), isExplicit(), isRungeKutta(), constitutive::ConstitutiveModelBase< T >::options, and RungeKutta().

Referenced by stressStrainIntegrate(), and micromechanical::ChangHicher< T >::stressStrainIntegrate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ revertElasticTrial()

template<typename T>

void constitutive::ElastoplasticModelBase< T >::revertElasticTrial	(	const Eigen::Matrix< T, 6, 6 > &	K,
		const Eigen::Matrix< T, 6, 1 > &	deps,
		const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inlineprotected

Revert the elastic trial.

Parameters

K	stiffness matrix
deps	strain increment
sv0	initial state variable
sv	state variable

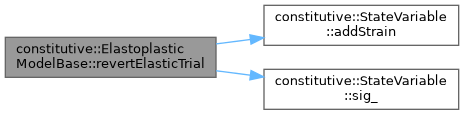

References constitutive::ConstitutiveModelBase< T >::abaqus_disable_unused_components, constitutive::ConstitutiveModelBase< T >::abaqus_ndi, constitutive::ConstitutiveModelBase< T >::abaqus_nshr, constitutive::StateVariable< T >::addStrain(), constitutive::ConstitutiveModelBase< T >::options, and constitutive::StateVariable< T >::sig_().

Here is the call graph for this function:

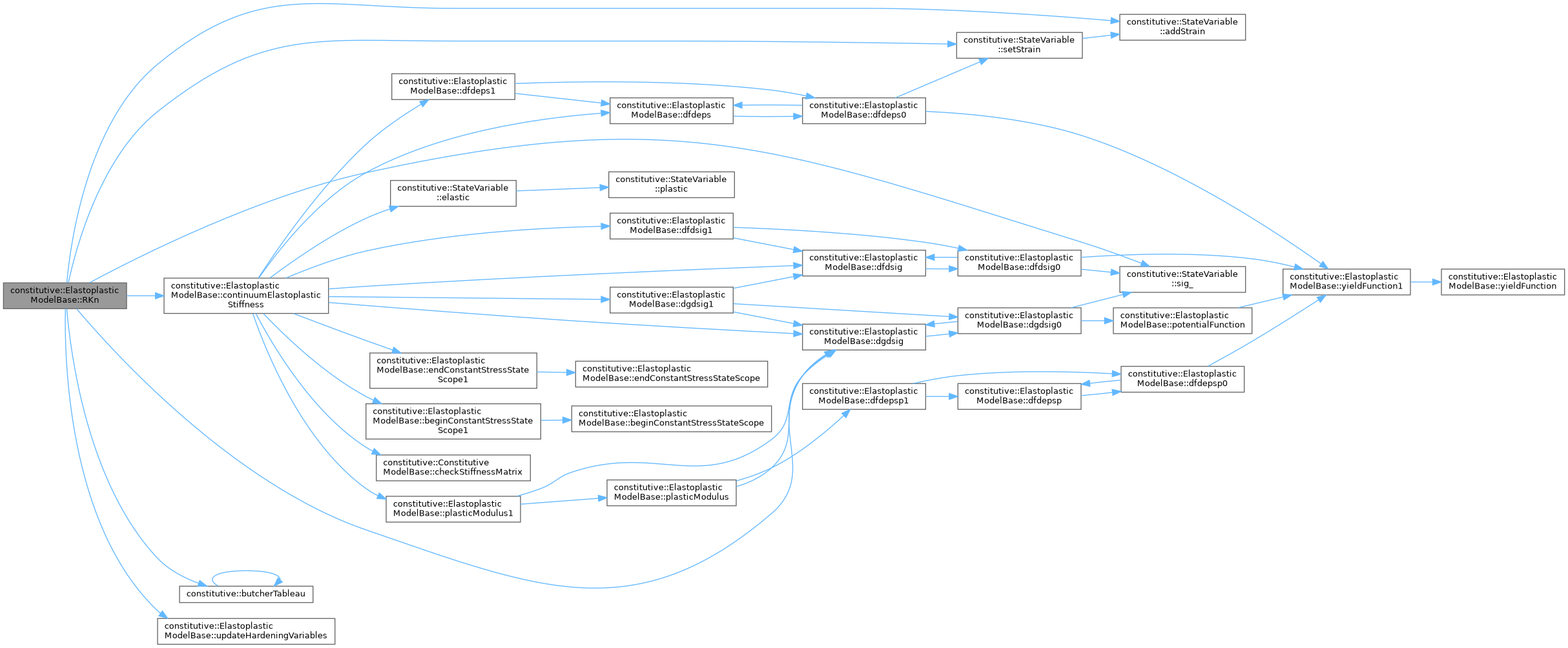

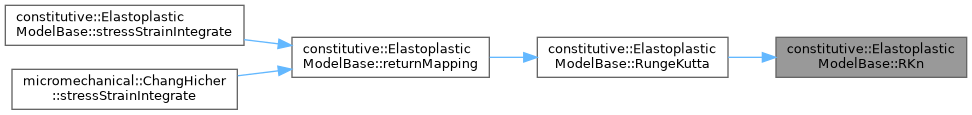

◆ RKn()

template<typename T>

std::tuple< Eigen::Matrix< T, 6, 6 >, Eigen::Matrix< T, 6, 1 >, Eigen::Matrix< T, 6, 1 >, Eigen::Matrix< T, Eigen::Dynamic, 1 >, Eigen::Matrix< T, Eigen::Dynamic, 6 > > constitutive::ElastoplasticModelBase< T >::RKn	(	int	n,
		const Eigen::Matrix< T, 6, 6 > &	K,
		const Eigen::Matrix< T, 6, 1 > &	deps,
		const StateVariable< T > &	sv0,
		StateVariable< T > &	sv,
		const bool	revert = false )

inlineprotected

Perform a Runge-Kutta increment.

Parameters

n	Order of the Runge-Kutta method
K	stiffness matrix
deps	strain increment
sv0	initial state variable
sv	state variable
revert	Whether to revert the state variables after the increment for estimation

Returns: Elastoplastic stiffness matrix, stress, stress increment, plastic multiplier, and plastic strain increment matrix

References constitutive::StateVariable< T >::addStrain(), constitutive::butcherTableau(), continuumElastoplasticStiffness(), dgdsig(), constitutive::StateVariable< T >::eps, constitutive::StateVariable< T >::epsp, constitutive::ConstitutiveModelBase< T >::options, constitutive::StateVariable< T >::setStrain(), constitutive::StateVariable< T >::sig, constitutive::StateVariable< T >::sig_(), updateHardeningVariables(), and constitutive::StateVariable< T >::vectors.

Referenced by RungeKutta().

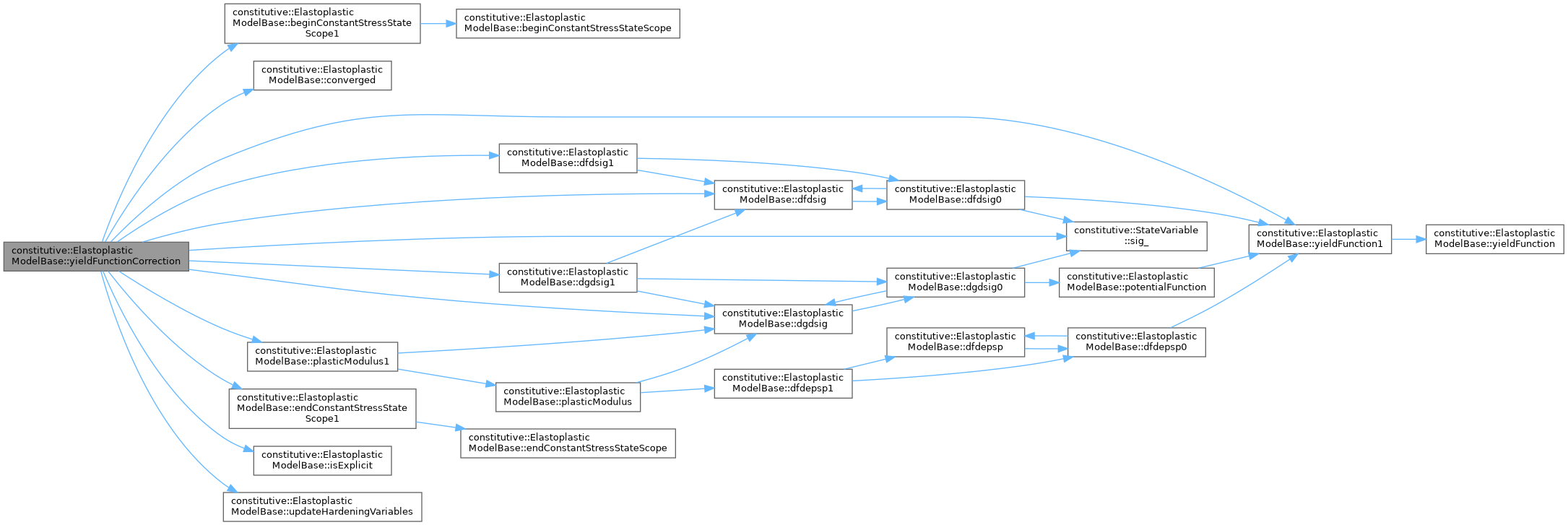

Here is the call graph for this function:

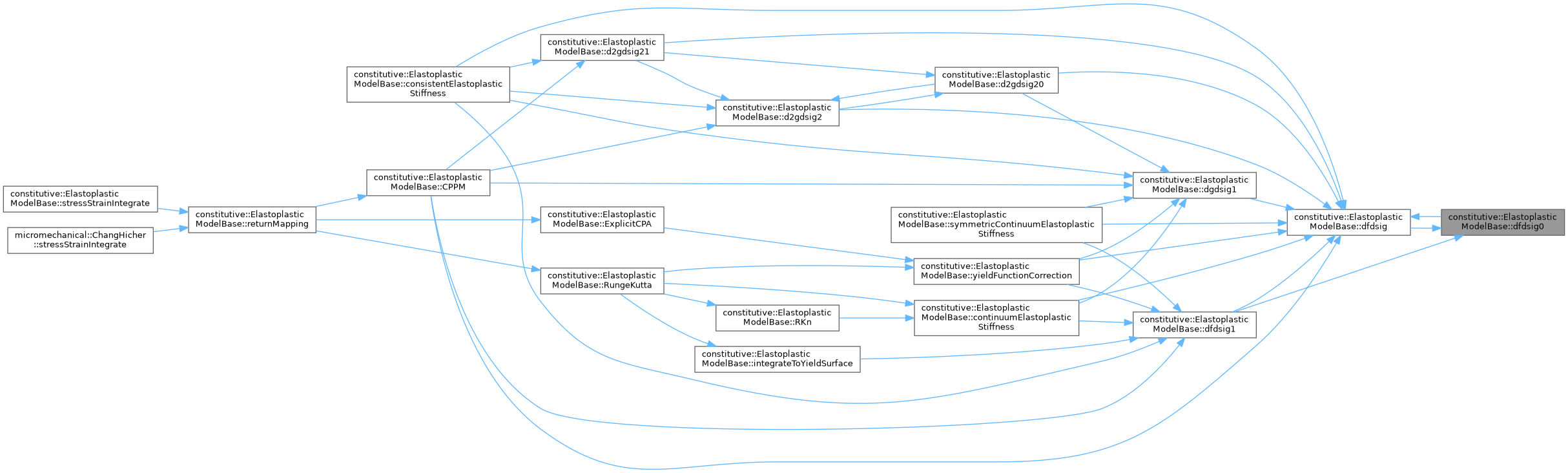

Here is the caller graph for this function:

◆ RungeKutta()

template<typename T>

void constitutive::ElastoplasticModelBase< T >::RungeKutta	(	const Eigen::Matrix< T, 6, 6 > &	K,
		const Eigen::Matrix< T, 6, 1 > &	deps,
		const StateVariable< T > &	sv0,
		StateVariable< T > &	sv,
		std::optional< int >	order = std::nullopt )

inlineprotected

Runge-Kutta method for elastoplastic model.

Parameters

K	stiffness matrix
deps	strain increment
sv0	initial state variable
sv	state variable
order	Order of the Runge-Kutta method

Returns: the elastoplastic stiffness matrix

References constitutive::ConstitutiveModelBase< T >::_mixedLoad, constitutive::ConstitutiveModelBase< T >::_phase, constitutive::ConstitutiveModelBase< T >::_step, constitutive::StateVariable< T >::addStrain(), continuumElastoplasticStiffness(), converged(), constitutive::ConstitutiveModelBase< T >::debugVariable, constitutive::StateVariable< T >::eps, constitutive::StateVariable< T >::epsp, integrateToYieldSurface(), constitutive::StateVariable< T >::matrices, constitutive::ConstitutiveModelBase< T >::options, RKn(), constitutive::StateVariable< T >::scalars, constitutive::StateVariable< T >::sig, constitutive::StateVariable< T >::sig_(), updateHardeningVariables(), and yieldFunctionCorrection().

Referenced by returnMapping().

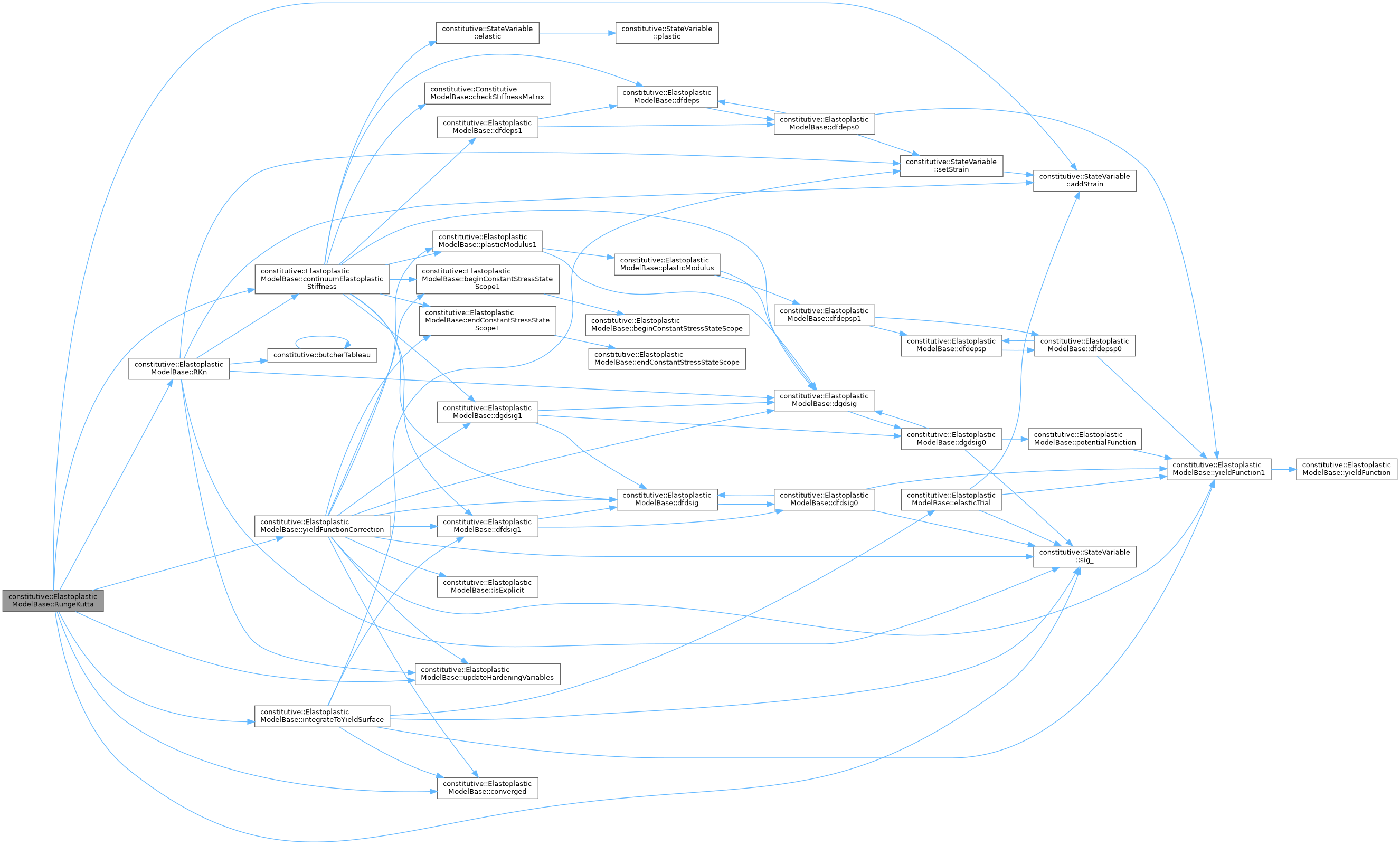

Here is the call graph for this function:

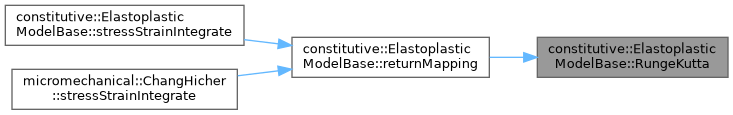

Here is the caller graph for this function:

◆ setPlasticMethod()

template<typename T>

void constitutive::ElastoplasticModelBase< T >::setPlasticMethod ( const std::string & method )

inline

set the plastic method

Parameters

method plastic method, "Explicit", "CPA", "CPPM" or "RungeKutta"

◆ stressStrainIntegrate()

template<typename T>

void constitutive::ElastoplasticModelBase< T >::stressStrainIntegrate	(	const Eigen::Matrix< T, 6, 6 > &	K,
		const Eigen::Matrix< T, 6, 1 > &	dsig,
		const Eigen::Matrix< T, 6, 1 > &	deps,
		const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inlineoverrideprotectedvirtual

Stress-strain integration.

Parameters

K	stiffness matrix
dsig	stress increment
deps	strain increment
sv0	initial state variable
sv	state variable

Implements constitutive::ConstitutiveModelBase< T >.

Here is the call graph for this function:

◆ symmetricContinuumElastoplasticStiffness()

template<typename T>

Eigen::Matrix< T, 6, 6 > constitutive::ElastoplasticModelBase< T >::symmetricContinuumElastoplasticStiffness	(	const Eigen::Matrix< T, 6, 6 > &	K,
		const Eigen::Matrix< T, 6, 1 > &	deps,
		const StateVariable< T > &	sv0,
		StateVariable< T > &	sv,
		bool	check_elastic_state = true,
		std::optional< bool >	check_positive_definite = std::nullopt,
		std::optional< bool >	check_non_singularity = std::nullopt )

inlineoverridevirtual

Parameters

K	stiffness matrix
deps	strain increment
sv0	initial state variable
sv	state variable
check_elastic_state	Whether to check if the current stress state is elastic
check_positive_definite	Whether to check the positive definiteness of the elastoplastic stiffness matrix
check_non_singularity	Whether to check the non-singularity of the elastoplastic stiffness matrix

Returns: symmetric continuum elastoplastic stiffness matrix

Reimplemented from constitutive::ConstitutiveModelBase< T >.

References beginConstantStressStateScope1(), constitutive::ConstitutiveModelBase< T >::checkStiffnessMatrix(), dfdsig(), dfdsig1(), dgdsig(), dgdsig1(), constitutive::StateVariable< T >::elastic(), endConstantStressStateScope1(), and plasticModulus1().

Here is the call graph for this function:

◆ updateHardeningVariables()

template<typename T>

virtual void constitutive::ElastoplasticModelBase< T >::updateHardeningVariables	(	const T	ddlambda,
		const Eigen::Matrix< T, 6, 1 > &	ddepsp,
		const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inlineprotectedvirtual

Update the hardening variables.

Parameters

ddlambda	plastic multiplier
ddepsp	plastic displacement increment
sv0	initial state variable
sv	state variable

Reimplemented in micromechanical::ChangHicher< T >.

Referenced by CPPM(), RKn(), RungeKutta(), and yieldFunctionCorrection().

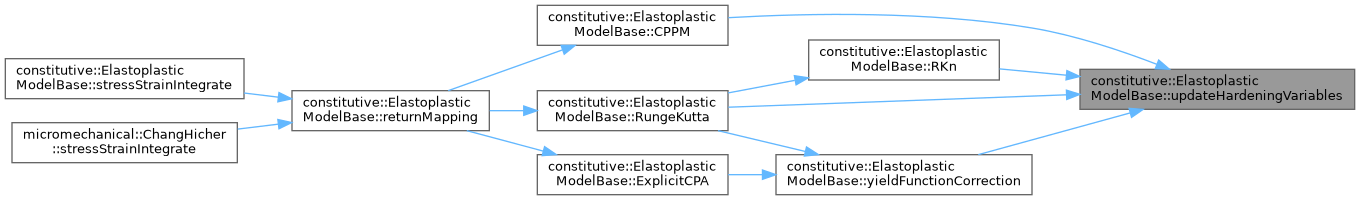

Here is the caller graph for this function:

◆ yieldFunction()

template<typename T>

virtual T constitutive::ElastoplasticModelBase< T >::yieldFunction	(	const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inlinevirtual

Yield function for elastoplastic model.

Parameters

sv0	initial state variable
sv	state variable

Returns: the yield function

Reimplemented in elastoplastic::J2Yang< T >, elastoplastic::MohrCoulomb< T >, elastoplastic::SIMSAND< T >, and micromechanical::ChangHicher< T >.

Referenced by yieldFunction1().

Here is the caller graph for this function:

◆ yieldFunction1()

template<typename T>

T constitutive::ElastoplasticModelBase< T >::yieldFunction1	(	const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inlineprotected

Yield function for elastoplastic model.

Parameters

sv0	initial state variable
sv	state variable

Returns: the yield function

References constitutive::StateVariable< T >::F, constitutive::ConstitutiveModelBase< T >::options, and yieldFunction().

Referenced by CPPM(), dfdeps0(), dfdepsp0(), dfdsig0(), elasticTrial(), integrateToYieldSurface(), potentialFunction(), and yieldFunctionCorrection().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ yieldFunctionCorrection()

template<typename T>

virtual void constitutive::ElastoplasticModelBase< T >::yieldFunctionCorrection	(	const Eigen::Matrix< T, 6, 6 > &	K,
		const Eigen::Matrix< T, 6, 1 > &	deps,
		const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inlineprotectedvirtual

Yield surface correction to keep the force state on the yield surface.

Parameters

K	stiffness matrix
deps	strain increment
sv0	initial state variable
sv	state variable

Reimplemented in micromechanical::ChangHicher< T >.

References constitutive::ConstitutiveModelBase< T >::_mixedLoad, constitutive::ConstitutiveModelBase< T >::_phase, constitutive::ConstitutiveModelBase< T >::_step, beginConstantStressStateScope1(), converged(), constitutive::ConstitutiveModelBase< T >::debugVariable, dfdsig(), dfdsig1(), dgdsig(), dgdsig1(), endConstantStressStateScope1(), constitutive::StateVariable< T >::eps, constitutive::StateVariable< T >::epsp, isExplicit(), constitutive::ConstitutiveModelBase< T >::options, plasticModulus1(), constitutive::StateVariable< T >::scalars, constitutive::StateVariable< T >::sig, constitutive::StateVariable< T >::sig_(), updateHardeningVariables(), and yieldFunction1().

Referenced by ExplicitCPA(), and RungeKutta().

Here is the call graph for this function:

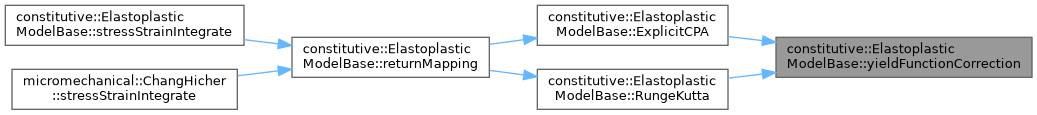

Here is the caller graph for this function:

Member Data Documentation

◆ cached_

template<typename T>

bool constitutive::ElastoplasticModelBase< T >::cached_ = false

protected

whether the state variables have been cached

Referenced by elastoplastic::J2Yang< T >::beginConstantStressStateScope(), elastoplastic::SIMSAND< T >::beginConstantStressStateScope(), elastoplastic::J2Yang< T >::dfdeps(), elastoplastic::SIMSAND< T >::dfdeps(), elastoplastic::J2Yang< T >::dfdsig(), elastoplastic::SIMSAND< T >::dfdsig(), elastoplastic::core::StressDilatancy< T >::dilatancy(), elastoplastic::J2Yang< T >::kp(), elastoplastic::SIMSAND< T >::kp(), elastoplastic::SIMSAND< T >::plasticModulus(), elastoplastic::J2Yang< T >::yieldFunction(), and elastoplastic::SIMSAND< T >::yieldFunction().

◆ dpadsiga

template<typename T>

Eigen::Matrix<T, 1, 6> constitutive::ElastoplasticModelBase< T >::dpadsiga = {-1.0 / 3.0, -1.0 / 3.0, -1.0 / 3.0, 0.0, 0.0, 0.0}

protected

Referenced by elastoplastic::J2Yang< T >::dfdsig(), elastoplastic::SIMSAND< T >::dfdsig(), and elastoplastic::core::StressDilatancy< T >::dgdsig().

◆ dqadtaua

template<typename T>

Eigen::Matrix<T, 1, 6> constitutive::ElastoplasticModelBase< T >::dqadtaua = Eigen::Matrix<T, 1, 6>::Zero()

protected

Referenced by elastoplastic::J2Yang< T >::beginConstantStressStateScope(), elastoplastic::SIMSAND< T >::beginConstantStressStateScope(), elastoplastic::J2Yang< T >::dfdsig(), elastoplastic::SIMSAND< T >::dfdsig(), and elastoplastic::core::StressDilatancy< T >::dgdsig().

◆ dtauadsiga

template<typename T>

Eigen::Matrix<T, 6, 6> constitutive::ElastoplasticModelBase< T >::dtauadsiga

protected

Initial value:

                         = [] {
    Eigen::Matrix<T, 6, 6> m = Eigen::Matrix<T, 6, 6>::Identity();
    m.topLeftCorner(3, 3) -= Eigen::Matrix<T, 3, 3>::Constant(1.0 / 3.0);
    return m;
}()

Referenced by elastoplastic::J2Yang< T >::dfdeps(), elastoplastic::SIMSAND< T >::dfdeps(), elastoplastic::J2Yang< T >::dfdsig(), elastoplastic::SIMSAND< T >::dfdsig(), and elastoplastic::core::StressDilatancy< T >::dgdsig().

◆ plasticMethod

template<typename T>

std::string constitutive::ElastoplasticModelBase< T >::plasticMethod = "CPA"

Plastic method.

◆ state

template<typename T>

std::string constitutive::ElastoplasticModelBase< T >::state = "none"

protected

State of the elastoplastic stress integration, "none", "elastic_trial", "elastic_to_yield", "elastoplastic", or "plastic_correction".

The documentation for this struct was generated from the following file:

include/constitutive/elastoplasticmodelbase.hpp

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Member Function Documentation

◆ beginConstantStressStateScope()

◆ beginConstantStressStateScope1()

◆ consistentElastoplasticStiffness()

◆ continuumElastoplasticStiffness()

◆ converged()

◆ CPPM()

◆ CSL()

◆ d2gdsig2()

◆ d2gdsig20()

◆ d2gdsig21()

◆ dfdeps()

◆ dfdeps0()

◆ dfdeps1()

◆ dfdepsp()

◆ dfdepsp0()

◆ dfdepsp1()

◆ dfdsig()

◆ dfdsig0()

◆ dfdsig1()

◆ dgdsig()

◆ dgdsig0()

◆ dgdsig1()

◆ dsigadsig()

◆ elasticTrial()

◆ endConstantStressStateScope()

◆ endConstantStressStateScope1()

◆ ExplicitCPA()

◆ integrateToYieldSurface()

◆ interpolateFabricTensor()

◆ isCPA()

◆ isCPPM()

◆ isExplicit()

◆ isRungeKutta()

◆ nonCoaxialDirection()

◆ orthogonalDirection()

◆ plasticModulus()

◆ plasticModulus1()

◆ potentialFunction()

◆ returnMapping()

◆ revertElasticTrial()

◆ RKn()

◆ RungeKutta()

◆ setPlasticMethod()

◆ stressStrainIntegrate()

◆ symmetricContinuumElastoplasticStiffness()

◆ updateHardeningVariables()

◆ yieldFunction()

◆ yieldFunction1()

◆ yieldFunctionCorrection()

Member Data Documentation

◆ cached_

◆ dpadsiga

◆ dqadtaua

◆ dtauadsiga

◆ plasticMethod

◆ state
