Gu et al. (2017)

Anisotropic elasticity of Toyoura sand 1.

import pandas as pd

from micromechanical.cli.plot import PlotCLI, PlotConfig

config: PlotConfig = PlotCLI.loadConfig("../../calibrations/micromechanical-plots.yaml")

Out:

/home/runner/work/musica/musica/micromechanical/cli/plot.py:56: UserWarning: Calibration file /home/runner/work/musica/musica/calibrations/Calibrations/Gu2024-CT-Dense-Static.json not found, skipping.
  warnings.warn(f"Calibration file {path.as_posix()} not found, skipping.")
/home/runner/work/musica/musica/micromechanical/cli/plot.py:56: UserWarning: Calibration file /home/runner/work/musica/musica/calibrations/Calibrations/Gu2024-CT-Dense-Kinematic.json not found, skipping.
  warnings.warn(f"Calibration file {path.as_posix()} not found, skipping.")
/home/runner/work/musica/musica/micromechanical/cli/plot.py:56: UserWarning: Calibration file /home/runner/work/musica/musica/calibrations/Calibrations/Gu2024-CT-Medium-Dense-Static.json not found, skipping.
  warnings.warn(f"Calibration file {path.as_posix()} not found, skipping.")
/home/runner/work/musica/musica/micromechanical/cli/plot.py:56: UserWarning: Calibration file /home/runner/work/musica/musica/calibrations/Calibrations/Gu2024-CT-Medium-Dense-Kinematic.json not found, skipping.
  warnings.warn(f"Calibration file {path.as_posix()} not found, skipping.")

Kinematic Hypothesis

plot_name = "Gu2017-Isotropic-Kinematic"
plot_config = config.plots[plot_name]
pd.DataFrame(
    {
        key.replace("micromechanical.calibrationkey:MaterialFabricCoefficientKey(car,F)", "F"): value
        for key, value in plot_config.calibration.read(config.root).parameters.items()
        if key in ["Gg", "cr", "krr", "F", "n", "npv", "nr", "nug", "radius"] or key.startswith("micromechanical")
    },
    index=["Gu2017"],
)  # fmt: skip
Gg cr krr F n npv nr nug radius
Gu2017 4.779100e+10 5.94365 1.203 1.352191 0.351 2.000000e+11 0.425 0.2 0.000108

Static Hypothesis

plot_name = "Gu2017-Isotropic-Static"
plot_config = config.plots[plot_name]
pd.DataFrame(
    {
        key.replace("micromechanical.calibrationkey:MaterialFabricCoefficientKey(car,F)", "F"): value
        for key, value in plot_config.calibration.read(config.root).parameters.items()
        if key in ["Gg", "cr", "krr", "F", "n", "npv", "nr", "nug", "radius"] or key.startswith("micromechanical")
    },
    index=["Gu2017"],
)  # fmt: skip
Gg cr krr F n npv nr nug radius
Gu2017 4.779100e+10 2.871943 0.993 1.299366 0.351 2.000000e+11 0.396 0.2 0.000108

Figures

for plot_name, plot_config in config.plots.items():
    if not plot_name.startswith("Gu2017"):
        continue

    plot_config.plot(plot_name, grids=config.grids, save=False, overwrite=False)

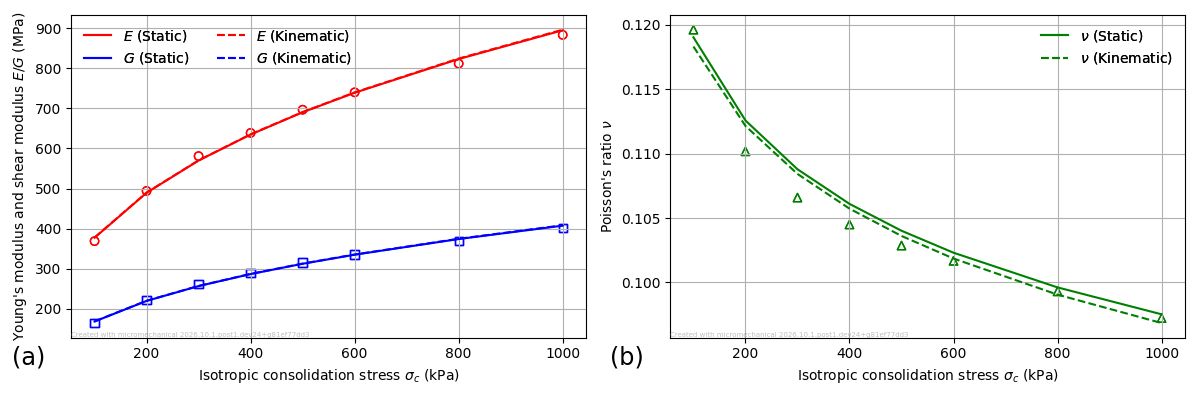

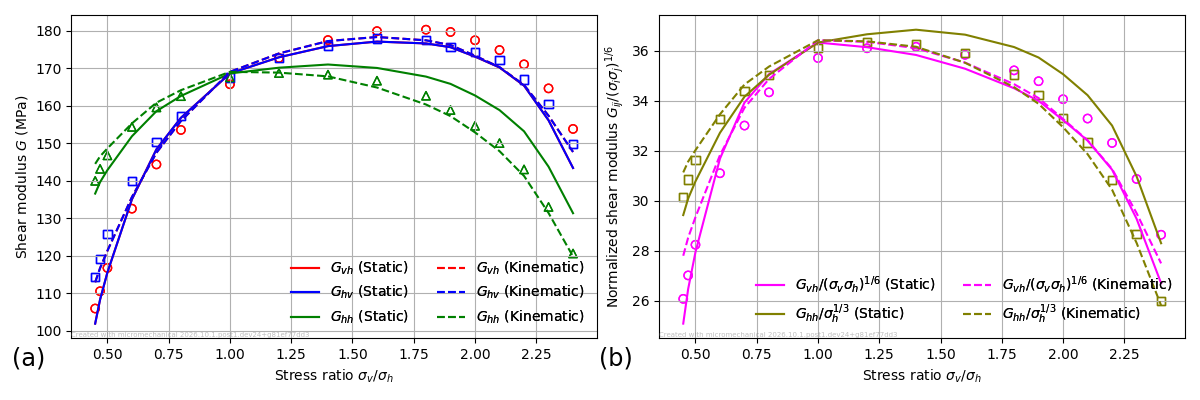

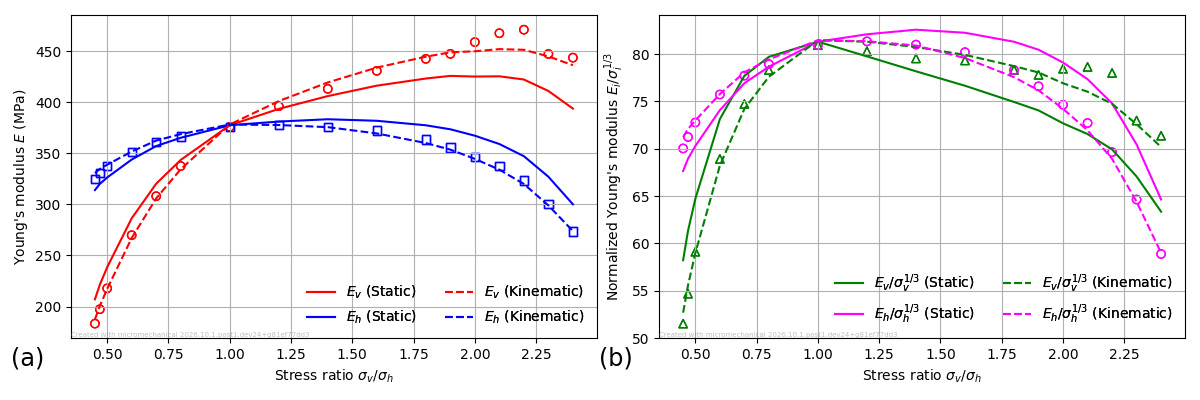

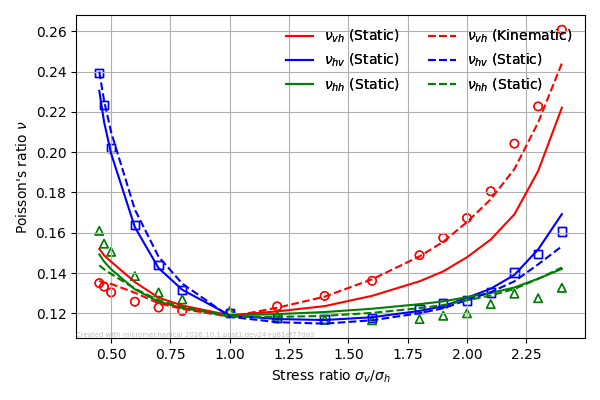

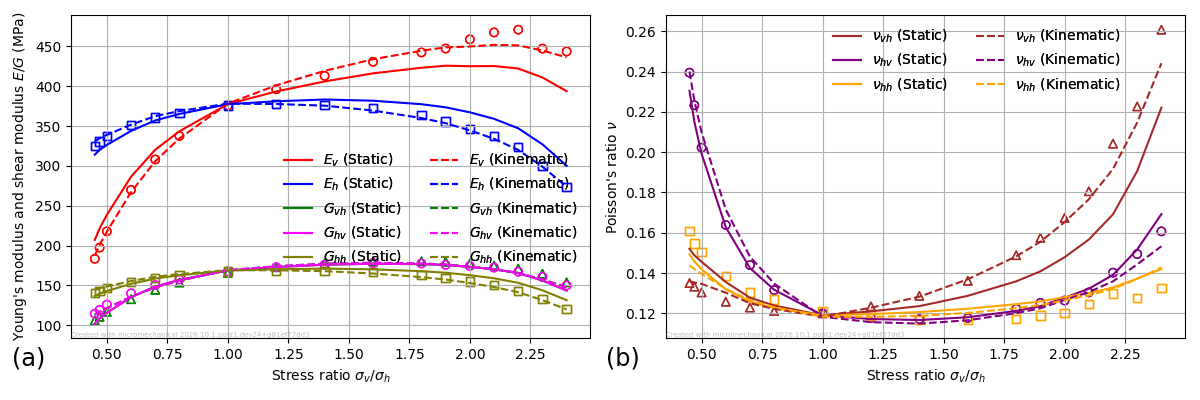

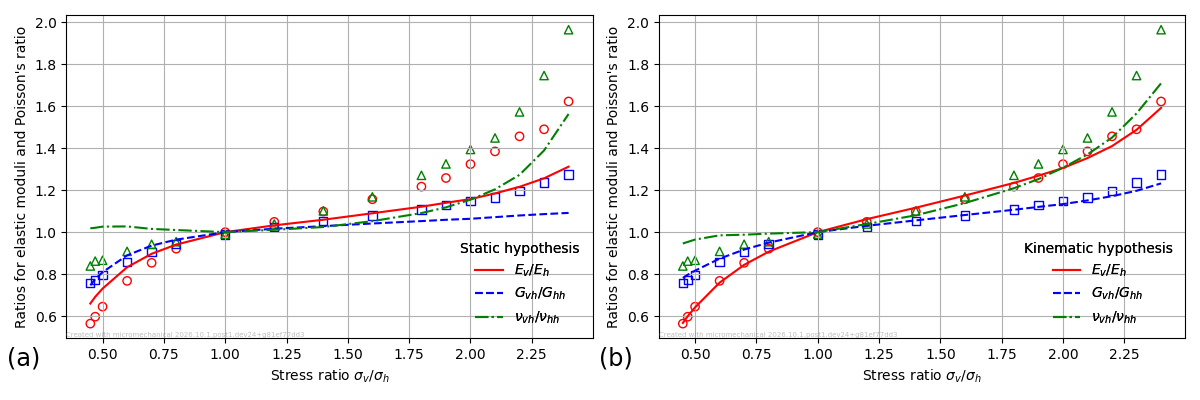

    (a), (b)(a), (b)(a), (b)plot gu2017(a), (b)(a), (b)

Out:

/home/runner/work/musica/musica/micromechanical/cli/_calculationoptions.py:42: UserWarning: Calculation option CN0 is not supported
  warnings.warn(f"Calculation option {key} is not supported")
/home/runner/work/musica/musica/micromechanical/cli/_calculationoptions.py:42: UserWarning: Calculation option F1 is not supported
  warnings.warn(f"Calculation option {key} is not supported")
/home/runner/work/musica/musica/micromechanical/cli/_calculationoptions.py:42: UserWarning: Calculation option F12 is not supported
  warnings.warn(f"Calculation option {key} is not supported")
/home/runner/work/musica/musica/micromechanical/cli/_calculationoptions.py:42: UserWarning: Calculation option F13 is not supported
  warnings.warn(f"Calculation option {key} is not supported")
/home/runner/work/musica/musica/micromechanical/cli/_calculationoptions.py:42: UserWarning: Calculation option F2 is not supported
  warnings.warn(f"Calculation option {key} is not supported")
/home/runner/work/musica/musica/micromechanical/cli/_calculationoptions.py:42: UserWarning: Calculation option F23 is not supported
  warnings.warn(f"Calculation option {key} is not supported")
/home/runner/work/musica/musica/micromechanical/cli/_calculationoptions.py:42: UserWarning: Calculation option Gg is not supported
  warnings.warn(f"Calculation option {key} is not supported")
/home/runner/work/musica/musica/micromechanical/cli/_calculationoptions.py:42: UserWarning: Calculation option car is not supported
  warnings.warn(f"Calculation option {key} is not supported")
/home/runner/work/musica/musica/micromechanical/cli/_calculationoptions.py:42: UserWarning: Calculation option car_anisotropy_major_axes is not supported
  warnings.warn(f"Calculation option {key} is not supported")
/home/runner/work/musica/musica/micromechanical/cli/_calculationoptions.py:42: UserWarning: Calculation option car_anisotropy_type is not supported
  warnings.warn(f"Calculation option {key} is not supported")
/home/runner/work/musica/musica/micromechanical/cli/_calculationoptions.py:42: UserWarning: Calculation option cc is not supported
  warnings.warn(f"Calculation option {key} is not supported")
/home/runner/work/musica/musica/micromechanical/cli/_calculationoptions.py:42: UserWarning: Calculation option check_convergence is not supported
  warnings.warn(f"Calculation option {key} is not supported")
/home/runner/work/musica/musica/micromechanical/cli/_calculationoptions.py:42: UserWarning: Calculation option cr is not supported
  warnings.warn(f"Calculation option {key} is not supported")
/home/runner/work/musica/musica/micromechanical/cli/_calculationoptions.py:42: UserWarning: Calculation option force_dependent_stiffness is not supported
  warnings.warn(f"Calculation option {key} is not supported")
/home/runner/work/musica/musica/micromechanical/cli/_calculationoptions.py:42: UserWarning: Calculation option force_numerical is not supported
  warnings.warn(f"Calculation option {key} is not supported")
/home/runner/work/musica/musica/micromechanical/cli/_calculationoptions.py:42: UserWarning: Calculation option kn is not supported
  warnings.warn(f"Calculation option {key} is not supported")
/home/runner/work/musica/musica/micromechanical/cli/_calculationoptions.py:42: UserWarning: Calculation option major_axes is not supported
  warnings.warn(f"Calculation option {key} is not supported")
/home/runner/work/musica/musica/micromechanical/cli/_calculationoptions.py:42: UserWarning: Calculation option max_iterations is not supported
  warnings.warn(f"Calculation option {key} is not supported")
/home/runner/work/musica/musica/micromechanical/cli/_calculationoptions.py:42: UserWarning: Calculation option micromechanical.calibrationkey:MaterialFabricCoefficientKey(car,F) is not supported
  warnings.warn(f"Calculation option {key} is not supported")
/home/runner/work/musica/musica/micromechanical/cli/_calculationoptions.py:42: UserWarning: Calculation option n is not supported
  warnings.warn(f"Calculation option {key} is not supported")
/home/runner/work/musica/musica/micromechanical/cli/_calculationoptions.py:42: UserWarning: Calculation option ncc is not supported
  warnings.warn(f"Calculation option {key} is not supported")
/home/runner/work/musica/musica/micromechanical/cli/_calculationoptions.py:42: UserWarning: Calculation option nr is not supported
  warnings.warn(f"Calculation option {key} is not supported")
/home/runner/work/musica/musica/micromechanical/cli/_calculationoptions.py:42: UserWarning: Calculation option nug is not supported
  warnings.warn(f"Calculation option {key} is not supported")
/home/runner/work/musica/musica/micromechanical/cli/_calculationoptions.py:42: UserWarning: Calculation option sig1 is not supported
  warnings.warn(f"Calculation option {key} is not supported")
/home/runner/work/musica/musica/micromechanical/cli/_calculationoptions.py:42: UserWarning: Calculation option sig2 is not supported
  warnings.warn(f"Calculation option {key} is not supported")
/home/runner/work/musica/musica/micromechanical/cli/_calculationoptions.py:42: UserWarning: Calculation option sig3 is not supported
  warnings.warn(f"Calculation option {key} is not supported")
/home/runner/work/musica/musica/micromechanical/cli/_calculationoptions.py:42: UserWarning: Calculation option tolerance is not supported
  warnings.warn(f"Calculation option {key} is not supported")
/home/runner/work/musica/musica/micromechanical/cli/_calculationoptions.py:42: UserWarning: Calculation option unit is not supported
  warnings.warn(f"Calculation option {key} is not supported")
/home/runner/work/musica/musica/micromechanical/cli/_calculationoptions.py:42: UserWarning: Calculation option voigt_notation is not supported
  warnings.warn(f"Calculation option {key} is not supported")
/home/runner/work/musica/musica/micromechanical/cli/_calculationoptions.py:42: UserWarning: Calculation option weight_kinematic is not supported
  warnings.warn(f"Calculation option {key} is not supported")
/home/runner/work/musica/musica/micromechanical/cli/_calculationoptions.py:42: UserWarning: Calculation option weight_normalize is not supported
  warnings.warn(f"Calculation option {key} is not supported")
/home/runner/work/musica/musica/micromechanical/cli/_calculationoptions.py:42: UserWarning: Calculation option weight_static is not supported
  warnings.warn(f"Calculation option {key} is not supported")

Total running time of the script: ( 0 minutes 25.102 seconds)

Download Python source code: plot_gu2017.py

Download Jupyter notebook: plot_gu2017.ipynb

Gallery generated by mkdocs-gallery

  1. Gu, X., Hu, J., & Huang, M. (2017). Anisotropy of elasticity and fabric of granular soils. Granular Matter, 19(2), 33. https://doi.org/10.1007/s10035-017-0717-6 ↩
