Hostun Sand (Drained)

Drained triaxial tests on Hostun sand 1.

import pandas as pd

from micromechanical.cli.plot import PlotCLI, PlotConfig

config: PlotConfig = PlotCLI.loadConfig("../../calibrations/micromechanical-plots.yaml")

plot_name = "Hostun-CH-OSIMSAND-two-column"
plot_config = config.plots[plot_name]

Out:

/home/runner/work/musica/musica/micromechanical/cli/plot.py:56: UserWarning: Calibration file /home/runner/work/musica/musica/calibrations/Calibrations/Gu2024-CT-Dense-Static.json not found, skipping.
  warnings.warn(f"Calibration file {path.as_posix()} not found, skipping.")
/home/runner/work/musica/musica/micromechanical/cli/plot.py:56: UserWarning: Calibration file /home/runner/work/musica/musica/calibrations/Calibrations/Gu2024-CT-Dense-Kinematic.json not found, skipping.
  warnings.warn(f"Calibration file {path.as_posix()} not found, skipping.")
/home/runner/work/musica/musica/micromechanical/cli/plot.py:56: UserWarning: Calibration file /home/runner/work/musica/musica/calibrations/Calibrations/Gu2024-CT-Medium-Dense-Static.json not found, skipping.
  warnings.warn(f"Calibration file {path.as_posix()} not found, skipping.")
/home/runner/work/musica/musica/micromechanical/cli/plot.py:56: UserWarning: Calibration file /home/runner/work/musica/musica/calibrations/Calibrations/Gu2024-CT-Medium-Dense-Kinematic.json not found, skipping.
  warnings.warn(f"Calibration file {path.as_posix()} not found, skipping.")

Parameters

pd.DataFrame(
    {key: value for key, value in plot_config.calibration.read(config.root).parameters.items()}, index=["Hostun"]
)
Ad Lambda eref kn0 kpr krr nd ne np phi xi
Hostun 0.725535 0.054743 0.795377 30.193762 0.114649 0.652199 2.382309 1.06076 1.591597 31.880993 1.462802

Figures

plot_config.plot(plot_name, save=False, grids=config.grids, overwrite=False)

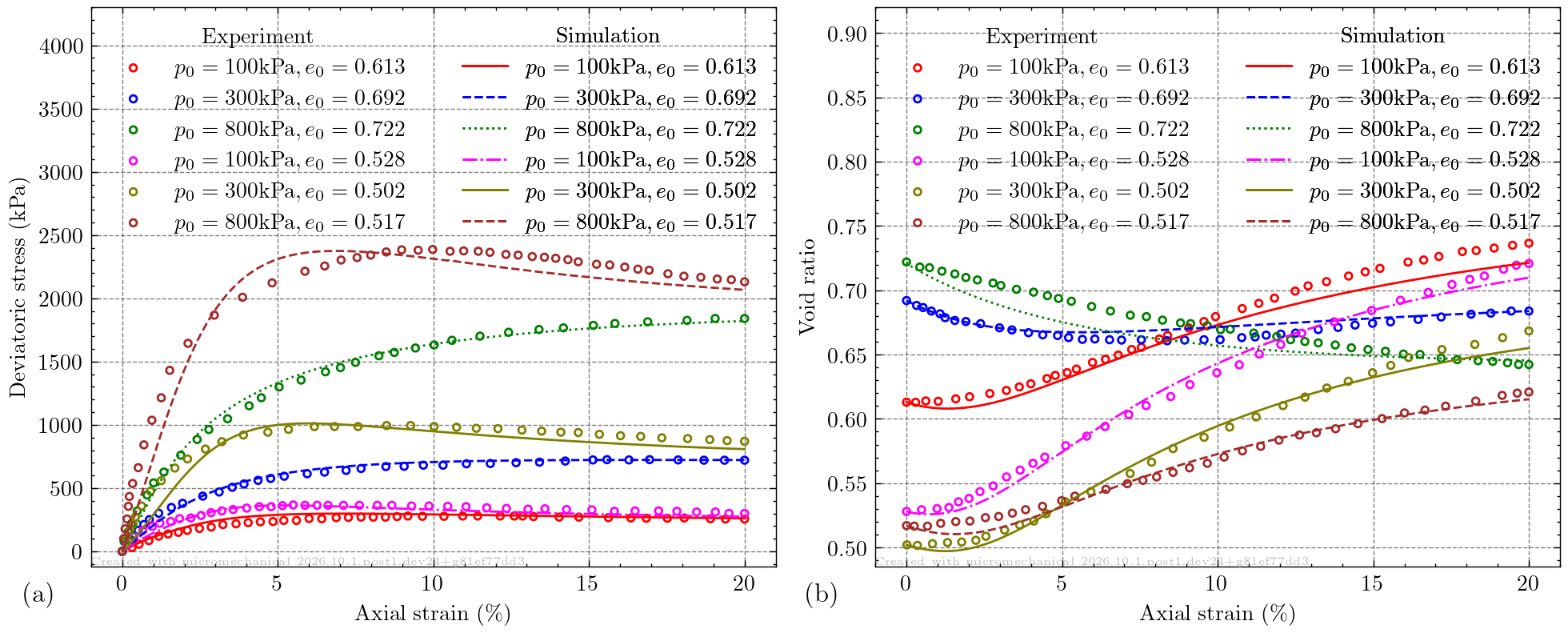

(a), (b)

Out:

Running CH-OSIMSAND model for experiment Hostun-Loose-100 ...
Finished in 2.085 seconds.
Running CH-OSIMSAND model for experiment Hostun-Loose-300 ...
Finished in 0.792 seconds.
Running CH-OSIMSAND model for experiment Hostun-Loose-800 ...
Finished in 0.826 seconds.
Running CH-OSIMSAND model for experiment Hostun-Dense-100 ...
Finished in 3.730 seconds.
Running CH-OSIMSAND model for experiment Hostun-Dense-300 ...
Finished in 3.015 seconds.
Running CH-OSIMSAND model for experiment Hostun-Dense-800 ...
Finished in 1.989 seconds.

{'macroscopic': <Figure size 1000x420 with 2 Axes>}

Total running time of the script: ( 0 minutes 26.023 seconds)

Download Python source code: plot_hostun_osimsand.py

Download Jupyter notebook: plot_hostun_osimsand.ipynb

Gallery generated by mkdocs-gallery

  1. Biarez, J., Hicher, P.Y., 2002. me ́canismes de d ́eformation des sols. In: Hicher, P.Y., Shao, J.F. (Eds.), Elastoplasticite ́ des sols et des roches, mod`eles de comportement des sols et des roches 1, Hermes-Lavoisier, pp. 47–89. ↩
