Toyoura Sand (Undrained)

Undrained triaxial tests on Toyoura sand with DEM 1.

import pandas as pd

from micromechanical.cli.plot import PlotCLI, PlotConfig

config: PlotConfig = PlotCLI.loadConfig("../../calibrations/micromechanical-plots.yaml")
plot_name = "Gu2014-undrained-CH-SANISAND-two-column"
plot_config = config.plots[plot_name]

Out:

/home/runner/work/musica/musica/micromechanical/cli/plot.py:56: UserWarning: Calibration file /home/runner/work/musica/musica/calibrations/Calibrations/Gu2024-CT-Dense-Static.json not found, skipping.
  warnings.warn(f"Calibration file {path.as_posix()} not found, skipping.")
/home/runner/work/musica/musica/micromechanical/cli/plot.py:56: UserWarning: Calibration file /home/runner/work/musica/musica/calibrations/Calibrations/Gu2024-CT-Dense-Kinematic.json not found, skipping.
  warnings.warn(f"Calibration file {path.as_posix()} not found, skipping.")
/home/runner/work/musica/musica/micromechanical/cli/plot.py:56: UserWarning: Calibration file /home/runner/work/musica/musica/calibrations/Calibrations/Gu2024-CT-Medium-Dense-Static.json not found, skipping.
  warnings.warn(f"Calibration file {path.as_posix()} not found, skipping.")
/home/runner/work/musica/musica/micromechanical/cli/plot.py:56: UserWarning: Calibration file /home/runner/work/musica/musica/calibrations/Calibrations/Gu2024-CT-Medium-Dense-Kinematic.json not found, skipping.
  warnings.warn(f"Calibration file {path.as_posix()} not found, skipping.")

Parameters

pd.DataFrame(
    {
        key.replace("micromechanical.calibrationkey:FabricCoefficientKey(", "").replace(")", ""): value
        for key, value in plot_config.calibration.read(config.root).parameters.items()
    },
    index=["Gu2014-undrained"],
)
Ad Lambda V X b c ch cohesion e0 eref0 erefu fnr fref h0 kn0 krr m Fc0 h n nd ne np nw phi rho rhoc theta xi
Gu2014-undrained 9.92224 0.015391 1000.0 0.8 1.000000e-07 1.0 1.0 0.0 0.6 0.71331 0.3 0.03 0.0001 3.775584e+06 60.967755 0.372066 1.824157 0.379312 163.092556 20.0 1.636987 0.000006 0.075273 1.0 15.81437 0.0 0.37 0.18 1.269156

Figures

plot_config.plot(plot_name, grids=config.grids, save=False, overwrite=False, exclude_figures=["macroscopic-anisotropy"])

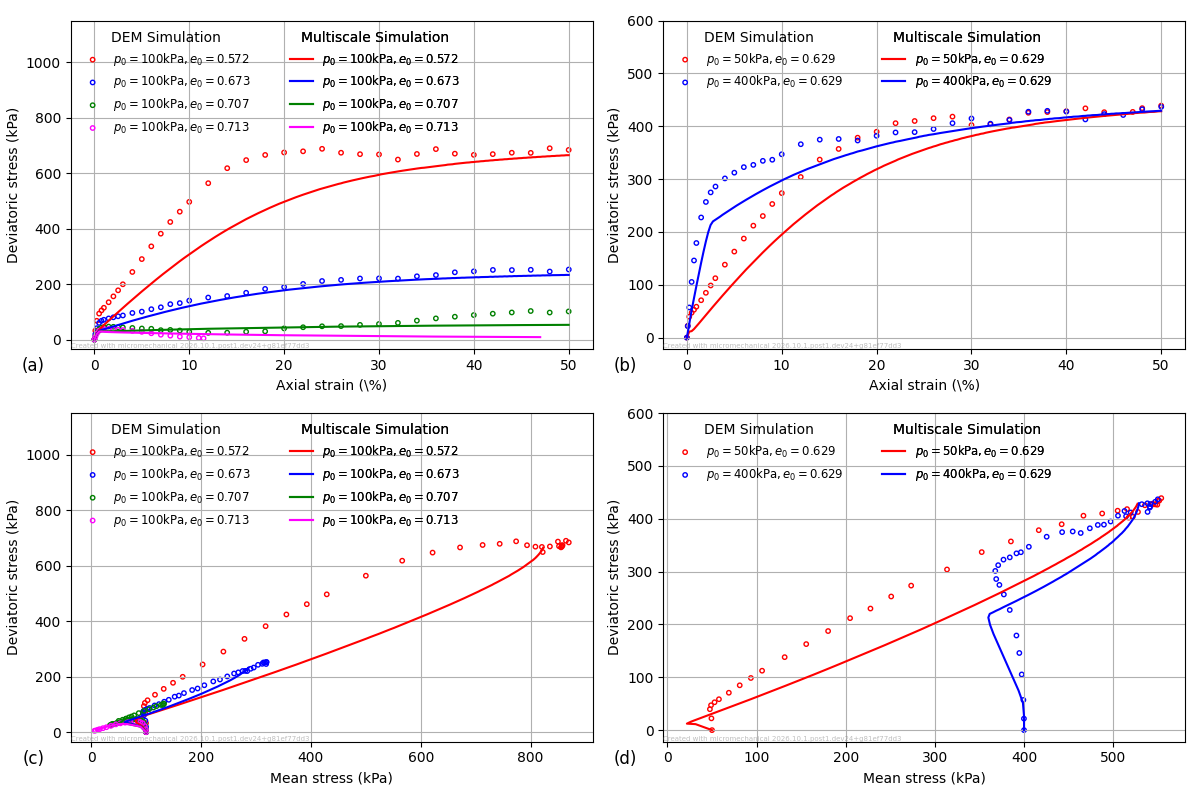

(a), (b), (c), (d)

Out:

/home/runner/work/musica/musica/micromechanical/cli/_calculationoptions.py:42: UserWarning: Calculation option micromechanical.calibrationkey:FabricCoefficientKey(Fc0) is not supported
  warnings.warn(f"Calculation option {key} is not supported")
/home/runner/work/musica/musica/micromechanical/cli/_calculationoptions.py:42: UserWarning: Calculation option micromechanical.calibrationkey:FabricCoefficientKey(h) is not supported
  warnings.warn(f"Calculation option {key} is not supported")
/home/runner/work/musica/musica/micromechanical/cli/_calculationoptions.py:42: UserWarning: Calculation option micromechanical.calibrationkey:FabricCoefficientKey(m) is not supported
  warnings.warn(f"Calculation option {key} is not supported")
/home/runner/work/musica/musica/micromechanical/cli/_calculationoptions.py:42: UserWarning: Calculation option micromechanical.calibrationkey:FabricCoefficientKey(n) is not supported
  warnings.warn(f"Calculation option {key} is not supported")
/home/runner/work/musica/musica/micromechanical/cli/_figureoptions.py:337: UserWarning: The figure Gu2014-undrained-CH-SANISAND-two-column -> macroscopic is not generated because the `generate` option is set to False.
  warnings.warn(
Running CH-SANISAND model for experiment Gu2014-undrained-Dense-50 ...
Finished in 1.697 seconds.
Running CH-SANISAND model for experiment Gu2014-undrained-Dense-400 ...
Finished in 1.160 seconds.
Running CH-SANISAND model for experiment Gu2014-undrained-Very-Dense-100 ...
Finished in 1.204 seconds.
Running CH-SANISAND model for experiment Gu2014-undrained-Dense-100 ...
Finished in 1.749 seconds.
Running CH-SANISAND model for experiment Gu2014-undrained-Medium-Dense-100 ...
Finished in 2.984 seconds.
Running CH-SANISAND model for experiment Gu2014-undrained-Very-Loose-100 ...
Traceback (most recent call last):
  File "/home/runner/work/musica/musica/micromechanical/models/model.py", line 1729, in run
    sv = SVExporter(self.model.run())
RuntimeError: Mixed load control algorithm did not converge.

{'macroscopic-confining': <Figure size 1200x800 with 4 Axes>, 'macroscopic-density': <Figure size 1200x800 with 4 Axes>}

Total running time of the script: ( 0 minutes 14.641 seconds)

Download Python source code: plot_gu2014_undrained_sanisand.py

Download Jupyter notebook: plot_gu2014_undrained_sanisand.ipynb

Gallery generated by mkdocs-gallery

  1. Gu, X., Huang, M., & Qian, J. (2014). DEM investigation on the evolution of microstructure in granular soils under shearing. Granular Matter, 16(1), 91–106. https://doi.org/10.1007/s10035-013-0467-z ↩
