Coulomb contact law. More...

#include <coulomb.hpp>

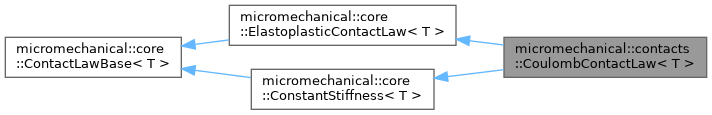

Inheritance diagram for micromechanical::contacts::CoulombContactLaw< T >:

[legend]

Collaboration diagram for micromechanical::contacts::CoulombContactLaw< T >:

[legend]

Public Member Functions
	CoulombContactLaw (const std::unordered_map< std::string, T > &props={})
T	yieldFunction (const int idx, const T fn, const T fr, const StateVariable< T > &sv0, StateVariable< T > &sv) override
	Yield function for elastoplastic contact laws.
Eigen::Matrix< T, 3, 1 >	dfdforce (const int idx, const StateVariable< T > &sv0, StateVariable< T > &sv) override
	Derivative of the yield function with respect to the force.
Public Member Functions inherited from micromechanical::core::ElastoplasticContactLaw< T >
void	setPlasticMethod (const std::string &method)
	set the plastic method
Public Member Functions inherited from micromechanical::core::ContactLawBase< T >
	ContactLawBase (const std::unordered_map< std::string, T > &props={})
	constructor
virtual	~ContactLawBase ()=default
	destructor
virtual std::vector< std::string >	symmetricContactScalars () const
	Symmetric contact scalar variables.
virtual std::vector< std::string >	symmetricContactVectors () const
	Symmetric contact vector variables.
virtual void	initialize (StateVariable< T > &sv)
	initialize the contact law
T	frictionCoefficient (const int idx, const StateVariable< T > &sv0, StateVariable< T > &sv) const
	calculate the friction coefficient combined with different criteria
Eigen::Matrix< T, 3, 3 >	forceDisplacement (const int idx, Eigen::Matrix< T, 3, 1 > &ddisp, Eigen::Matrix< T, 3, 3 > &Ke, const StateVariable< T > &sv0, StateVariable< T > &sv)
	integrate the force-displacement relation
virtual T	CSL (const int idx, const StateVariable< T > &sv0, StateVariable< T > &sv) const
	calculate the critical state line
Eigen::Matrix< T, Eigen::Dynamic, Eigen::Dynamic >	yieldFunctions (const int idx, const Eigen::Matrix< T, Eigen::Dynamic, Eigen::Dynamic > &fn, const Eigen::Matrix< T, Eigen::Dynamic, Eigen::Dynamic > &fr, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Calculate yield function for multiple times.
Eigen::Matrix< T, 3, 1 >	dfdforce0 (const int idx, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Derivative of the yield function with respect to the force.
virtual T	potentialFunction (const int idx, const T fn, const T fr, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Potential function for elastoplastic contact laws.
Eigen::Matrix< T, 3, 1 >	dgdforce0 (const int idx, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Derivative of the potential function with respect to the force.
virtual Eigen::Matrix< T, 3, 1 >	dgdforce (const int idx, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Derivative of the potential function with respect to the force.
virtual Eigen::Matrix< T, 3, 1 >	plasticModulus0 (const int idx, const Eigen::Matrix< T, 3, 1 > &dgdforce, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Plastic modulus for elastoplastic contact laws.
virtual T	plasticModulus (const int idx, const Eigen::Matrix< T, 3, 1 > &dgdforce, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Plastic modulus for elastoplastic contact laws, including dgdforce.
T	plasticModulus1 (const int idx, const Eigen::Matrix< T, 3, 1 > &dgdforce, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Plastic modulus for elastoplastic contact laws, including dgdforce.
virtual void	updateHardeningVariables (const int idx, const T dlambda, const Eigen::Matrix< T, 3, 1 > &ddispp, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Update the hardening variables.
virtual void	yieldFunctionCorrection (const int idx, const Eigen::Matrix< T, 3, 3 > &Ke, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Yield surface correction to keep the force state on the yield surface.
virtual void	maintainYieldSurface (const int idx, const Eigen::Matrix< T, 3, 1 > &ddisp, const Eigen::Matrix< T, 3, 1 > &dforce, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Revert state variables from elastic state to maintain the force state on the yield surface.
Public Member Functions inherited from micromechanical::core::ConstantStiffness< T >
Eigen::Matrix< T, 3, 3 >	elasticStiffness (const int idx, T fn, const StateVariable< T > &sv0, StateVariable< T > &sv) override
	Calculate the elastic stiffness matrix.

Additional Inherited Members
Public Attributes inherited from micromechanical::core::ElastoplasticContactLaw< T >
std::string	plasticMethod = "CPA"
	Plastic method.
Public Attributes inherited from micromechanical::core::ContactLawBase< T >
std::string	name = "Undefined"
	Name of the contact law.
std::shared_ptr< Material< T > >	material
	Material properties.
int	nstatev_custom = 0
	Number of custom state variables.
bool	plastic_displacement = false
	Flag to save the plastic displacement in the state variables.
std::shared_ptr< Options< T > >	options = std::make_shared<Options<T>>()
	options for the micromechanical model
std::shared_ptr< DebugVariable< T > >	debugVariable = std::make_shared<DebugVariable<T>>()
	debug variable
int	_phase = 0
	index of the phase
int	_step = 0
	current step
int	_mixedLoad = 0
	number of mixed load steps
int	_integration = 0
	number of integration steps
int	_increment = 0
	number of contact increments
int	_plasticCorrection = 0
	number of contact plastic corrections
Protected Member Functions inherited from micromechanical::core::ElastoplasticContactLaw< T >
bool	isExplicit () const
	check if the plastic method is explicit
bool	isCPA () const
	check if the plastic method is CPA
bool	isCPPM () const
	check if the plastic method is CPPM
Eigen::Matrix< T, 3, 3 >	stiffness (const int idx, const Eigen::Matrix< T, 3, 1 > &ddisp, const StateVariable< T > &sv0, StateVariable< T > &sv) override
	calculate the elastoplastic stiffness matrix
Eigen::Matrix< T, 3, 3 >	ExplicitCPA (const int idx, const Eigen::Matrix< T, 3, 3 > &Ke, const Eigen::Matrix< T, 3, 1 > &ddisp, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Explicit method for elastoplastic contact laws.
Eigen::Matrix< T, 3, 3 >	CPPM (const int idx, const Eigen::Matrix< T, 3, 3 > &Ke, const Eigen::Matrix< T, 3, 1 > &ddisp, const StateVariable< T > &sv0, StateVariable< T > &sv)
	CPPM method for elastoplastic contact laws.
Protected Member Functions inherited from micromechanical::core::ContactLawBase< T >
virtual Eigen::Matrix< T, 3, 3 >	integrate (const int idx, const Eigen::Matrix< T, 3, 1 > &ddisp, const Eigen::Matrix< T, 3, 3 > &Ke, const StateVariable< T > &sv0, StateVariable< T > &sv)
	integrate the force-displacement contact law, with a number of increments.
Eigen::Matrix< T, 3, 3 >	increment (const int idx, const Eigen::Matrix< T, 3, 1 > &ddisp, const Eigen::Matrix< T, 3, 3 > &Ke, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Calculate one increment.
virtual void	check (const int idx, const Eigen::Matrix< T, 3, 1 > &ddisp, const StateVariable< T > &sv0, StateVariable< T > &sv)
	check the convergence of the contact law
virtual void	preIntegration (const int idx, const Eigen::Matrix< T, 3, 1 > &ddisp, const StateVariable< T > &sv0, StateVariable< T > &sv)
	pre-processing before the integration
virtual void	postIntegration (const int idx, const Eigen::Matrix< T, 3, 1 > &ddisp, const StateVariable< T > &sv0, StateVariable< T > &sv)
	post-processing after the integration
virtual void	preIncrement (const int idx, const Eigen::Matrix< T, 3, 1 > &ddisp, const StateVariable< T > &sv0, StateVariable< T > &sv)
	pre-processing before the increment
virtual void	postIncrement (const int idx, const Eigen::Matrix< T, 3, 1 > &ddisp, const StateVariable< T > &sv0, StateVariable< T > &sv)
	post-processing after the increment
Eigen::Matrix< T, 3, 1 >	dfdforce1 (const int idx, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Derivative of the yield function with respect to the force.
Eigen::Matrix< T, 3, 1 >	dgdforce1 (const int idx, const Eigen::Matrix< T, 3, 1 > &dfdforce, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Derivative of the potential function with respect to the force.

Detailed Description

template<typename T>
struct micromechanical::contacts::CoulombContactLaw< T >

Coulomb contact law.

Constructor & Destructor Documentation

◆ CoulombContactLaw()

template<typename T>

micromechanical::contacts::CoulombContactLaw< T >::CoulombContactLaw ( const std::unordered_map< std::string, T > & props = {} )

inlineexplicit

Member Function Documentation

◆ dfdforce()

template<typename T>

Eigen::Matrix< T, 3, 1 > micromechanical::contacts::CoulombContactLaw< T >::dfdforce	(	const int	idx,
		const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inlineoverridevirtual

Derivative of the yield function with respect to the force.

Parameters

idx	index of the integration point
sv0	initial state variable
sv	state variable

Returns: the derivative of the yield function with respect to the force

Reimplemented from micromechanical::core::ContactLawBase< T >.

References micromechanical::core::ContactLawBase< T >::frictionCoefficient(), and constitutive::StateVariable< T >::nst().

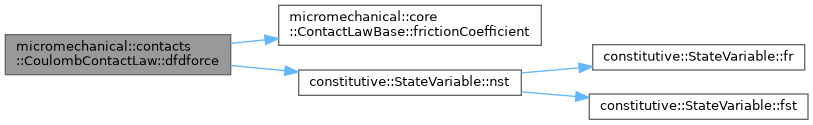

Here is the call graph for this function:

◆ yieldFunction()

template<typename T>

T micromechanical::contacts::CoulombContactLaw< T >::yieldFunction	(	const int	idx,
		const T	fn,
		const T	fr,
		const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )
