micromechanical::core::ElastoplasticContactLaw< T > Struct Template Reference

Base class for elastoplastic contact laws. More...

#include <contactlaw.hpp>

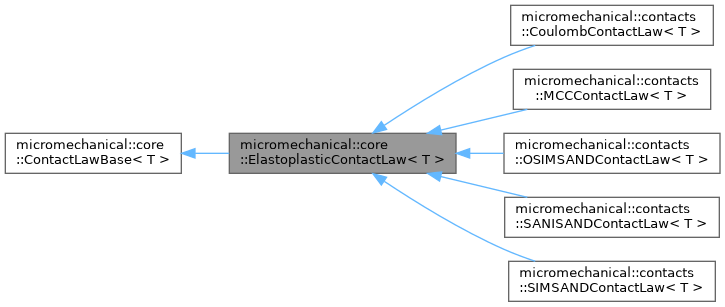

Inheritance diagram for micromechanical::core::ElastoplasticContactLaw< T >:

Collaboration diagram for micromechanical::core::ElastoplasticContactLaw< T >:

Public Member Functions
void	setPlasticMethod (const std::string &method)
	set the plastic method
Public Member Functions inherited from micromechanical::core::ContactLawBase< T >
	ContactLawBase (const std::unordered_map< std::string, T > &props={})
	constructor
virtual	~ContactLawBase ()=default
	destructor
virtual std::vector< std::string >	symmetricContactScalars () const
	Symmetric contact scalar variables.
virtual std::vector< std::string >	symmetricContactVectors () const
	Symmetric contact vector variables.
virtual void	initialize (StateVariable< T > &sv)
	initialize the contact law
T	frictionCoefficient (const int idx, const StateVariable< T > &sv0, StateVariable< T > &sv) const
	calculate the friction coefficient combined with different criteria
Eigen::Matrix< T, 3, 3 >	forceDisplacement (const int idx, Eigen::Matrix< T, 3, 1 > &ddisp, Eigen::Matrix< T, 3, 3 > &Ke, const StateVariable< T > &sv0, StateVariable< T > &sv)
	integrate the force-displacement relation
virtual Eigen::Matrix< T, 3, 3 >	elasticStiffness (const int idx, T fn, const StateVariable< T > &sv0, StateVariable< T > &sv)=0
	Calculate the elastic stiffness matrix.
virtual T	CSL (const int idx, const StateVariable< T > &sv0, StateVariable< T > &sv) const
	calculate the critical state line
virtual T	yieldFunction (const int idx, const T fn, const T fr, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Yield function for elastoplastic contact laws.
Eigen::Matrix< T, Eigen::Dynamic, Eigen::Dynamic >	yieldFunctions (const int idx, const Eigen::Matrix< T, Eigen::Dynamic, Eigen::Dynamic > &fn, const Eigen::Matrix< T, Eigen::Dynamic, Eigen::Dynamic > &fr, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Calculate yield function for multiple times.
Eigen::Matrix< T, 3, 1 >	dfdforce0 (const int idx, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Derivative of the yield function with respect to the force.
virtual Eigen::Matrix< T, 3, 1 >	dfdforce (const int idx, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Derivative of the yield function with respect to the force.
virtual T	potentialFunction (const int idx, const T fn, const T fr, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Potential function for elastoplastic contact laws.
Eigen::Matrix< T, 3, 1 >	dgdforce0 (const int idx, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Derivative of the potential function with respect to the force.
virtual Eigen::Matrix< T, 3, 1 >	dgdforce (const int idx, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Derivative of the potential function with respect to the force.
virtual Eigen::Matrix< T, 3, 1 >	plasticModulus0 (const int idx, const Eigen::Matrix< T, 3, 1 > &dgdforce, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Plastic modulus for elastoplastic contact laws.
virtual T	plasticModulus (const int idx, const Eigen::Matrix< T, 3, 1 > &dgdforce, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Plastic modulus for elastoplastic contact laws, including dgdforce.
T	plasticModulus1 (const int idx, const Eigen::Matrix< T, 3, 1 > &dgdforce, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Plastic modulus for elastoplastic contact laws, including dgdforce.
virtual void	updateHardeningVariables (const int idx, const T dlambda, const Eigen::Matrix< T, 3, 1 > &ddispp, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Update the hardening variables.
virtual void	yieldFunctionCorrection (const int idx, const Eigen::Matrix< T, 3, 3 > &Ke, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Yield surface correction to keep the force state on the yield surface.
virtual void	maintainYieldSurface (const int idx, const Eigen::Matrix< T, 3, 1 > &ddisp, const Eigen::Matrix< T, 3, 1 > &dforce, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Revert state variables from elastic state to maintain the force state on the yield surface.

Public Attributes
std::string	plasticMethod = "CPA"
	Plastic method.
Public Attributes inherited from micromechanical::core::ContactLawBase< T >
std::string	name = "Undefined"
	Name of the contact law.
std::shared_ptr< Material< T > >	material
	Material properties.
int	nstatev_custom = 0
	Number of custom state variables.
bool	plastic_displacement = false
	Flag to save the plastic displacement in the state variables.
std::shared_ptr< Options< T > >	options = std::make_shared<Options<T>>()
	options for the micromechanical model
std::shared_ptr< DebugVariable< T > >	debugVariable = std::make_shared<DebugVariable<T>>()
	debug variable
int	_phase = 0
	index of the phase
int	_step = 0
	current step
int	_mixedLoad = 0
	number of mixed load steps
int	_integration = 0
	number of integration steps
int	_increment = 0
	number of contact increments
int	_plasticCorrection = 0
	number of contact plastic corrections

Protected Member Functions
bool	isExplicit () const
	check if the plastic method is explicit
bool	isCPA () const
	check if the plastic method is CPA
bool	isCPPM () const
	check if the plastic method is CPPM
Eigen::Matrix< T, 3, 3 >	stiffness (const int idx, const Eigen::Matrix< T, 3, 1 > &ddisp, const StateVariable< T > &sv0, StateVariable< T > &sv) override
	calculate the elastoplastic stiffness matrix
Eigen::Matrix< T, 3, 3 >	ExplicitCPA (const int idx, const Eigen::Matrix< T, 3, 3 > &Ke, const Eigen::Matrix< T, 3, 1 > &ddisp, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Explicit method for elastoplastic contact laws.
Eigen::Matrix< T, 3, 3 >	CPPM (const int idx, const Eigen::Matrix< T, 3, 3 > &Ke, const Eigen::Matrix< T, 3, 1 > &ddisp, const StateVariable< T > &sv0, StateVariable< T > &sv)
	CPPM method for elastoplastic contact laws.
Protected Member Functions inherited from micromechanical::core::ContactLawBase< T >
virtual Eigen::Matrix< T, 3, 3 >	integrate (const int idx, const Eigen::Matrix< T, 3, 1 > &ddisp, const Eigen::Matrix< T, 3, 3 > &Ke, const StateVariable< T > &sv0, StateVariable< T > &sv)
	integrate the force-displacement contact law, with a number of increments.
Eigen::Matrix< T, 3, 3 >	increment (const int idx, const Eigen::Matrix< T, 3, 1 > &ddisp, const Eigen::Matrix< T, 3, 3 > &Ke, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Calculate one increment.
virtual void	check (const int idx, const Eigen::Matrix< T, 3, 1 > &ddisp, const StateVariable< T > &sv0, StateVariable< T > &sv)
	check the convergence of the contact law
virtual void	preIntegration (const int idx, const Eigen::Matrix< T, 3, 1 > &ddisp, const StateVariable< T > &sv0, StateVariable< T > &sv)
	pre-processing before the integration
virtual void	postIntegration (const int idx, const Eigen::Matrix< T, 3, 1 > &ddisp, const StateVariable< T > &sv0, StateVariable< T > &sv)
	post-processing after the integration
virtual void	preIncrement (const int idx, const Eigen::Matrix< T, 3, 1 > &ddisp, const StateVariable< T > &sv0, StateVariable< T > &sv)
	pre-processing before the increment
virtual void	postIncrement (const int idx, const Eigen::Matrix< T, 3, 1 > &ddisp, const StateVariable< T > &sv0, StateVariable< T > &sv)
	post-processing after the increment
Eigen::Matrix< T, 3, 1 >	dfdforce1 (const int idx, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Derivative of the yield function with respect to the force.
Eigen::Matrix< T, 3, 1 >	dgdforce1 (const int idx, const Eigen::Matrix< T, 3, 1 > &dfdforce, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Derivative of the potential function with respect to the force.

Detailed Description

template<typename T>
struct micromechanical::core::ElastoplasticContactLaw< T >

Base class for elastoplastic contact laws.

Member Function Documentation

CPPM()

template<typename T>

Eigen::Matrix< T, 3, 3 > micromechanical::core::ElastoplasticContactLaw< T >::CPPM ( const int idx, const Eigen::Matrix< T, 3, 3 > & Ke, const Eigen::Matrix< T, 3, 1 > & ddisp, const StateVariable< T > & sv0, StateVariable< T > & sv )

inlineprotected

CPPM method for elastoplastic contact laws.

Parameters

idx	index of the integration point
Ke	stiffness matrix
ddisp	displacement increment
sv0	initial state variable
sv	state variable

Returns

the elastoplastic stiffness matrix

Todo

the CPPM method is not implemented yet, fall back to the CPA method

References ExplicitCPA().

Referenced by stiffness().

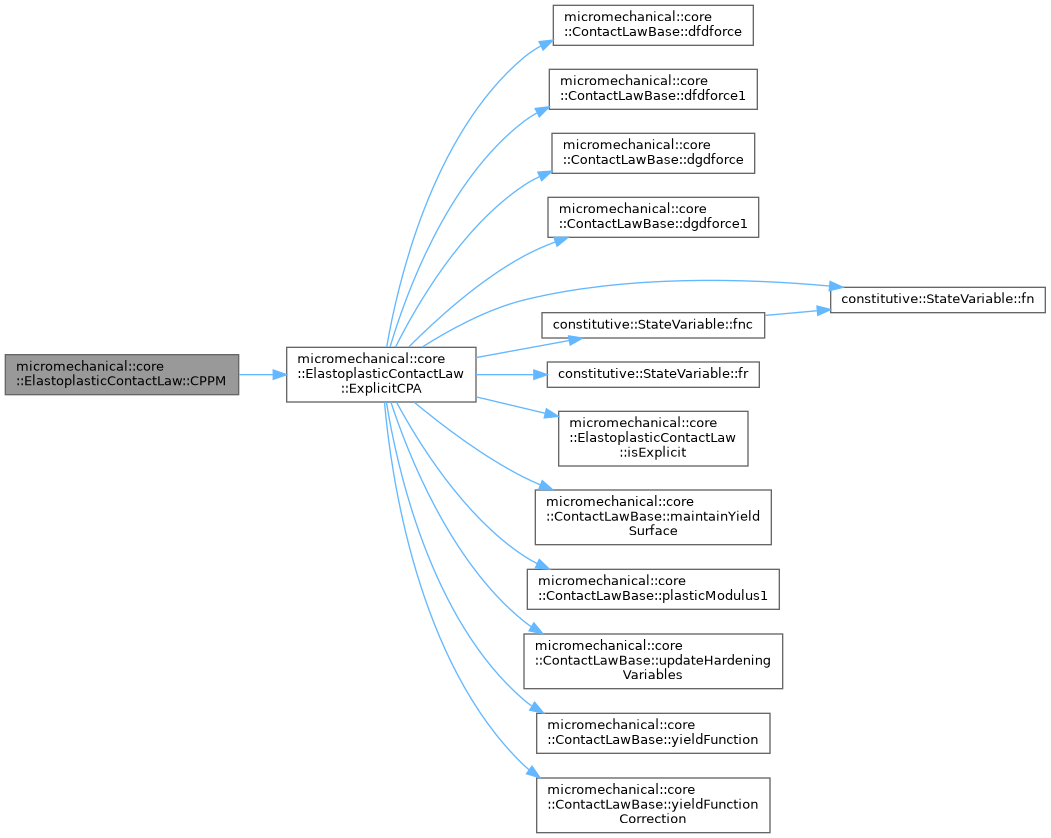

Here is the call graph for this function:

Here is the caller graph for this function:

ExplicitCPA()

template<typename T>

Eigen::Matrix< T, 3, 3 > micromechanical::core::ElastoplasticContactLaw< T >::ExplicitCPA ( const int idx, const Eigen::Matrix< T, 3, 3 > & Ke, const Eigen::Matrix< T, 3, 1 > & ddisp, const StateVariable< T > & sv0, StateVariable< T > & sv )

inlineprotected

Explicit method for elastoplastic contact laws.

Parameters

idx	index of the integration point
Ke	stiffness matrix
ddisp	displacement increment
sv0	initial state variable
sv	state variable

Returns

the elastoplastic stiffness matrix

References micromechanical::core::ContactLawBase< T >::_increment, micromechanical::core::ContactLawBase< T >::_integration, micromechanical::core::ContactLawBase< T >::_mixedLoad, micromechanical::core::ContactLawBase< T >::_phase, micromechanical::core::ContactLawBase< T >::_plasticCorrection, micromechanical::core::ContactLawBase< T >::_step, constitutive::StateVariable< T >::cscalars, micromechanical::core::ContactLawBase< T >::debugVariable, micromechanical::core::ContactLawBase< T >::dfdforce(), micromechanical::core::ContactLawBase< T >::dfdforce1(), micromechanical::core::ContactLawBase< T >::dgdforce(), micromechanical::core::ContactLawBase< T >::dgdforce1(), constitutive::StateVariable< T >::disp, constitutive::StateVariable< T >::dispp, constitutive::StateVariable< T >::fn(), constitutive::StateVariable< T >::fnc(), constitutive::StateVariable< T >::force, constitutive::StateVariable< T >::fr(), isExplicit(), micromechanical::core::ContactLawBase< T >::maintainYieldSurface(), micromechanical::core::ContactLawBase< T >::options, micromechanical::core::ContactLawBase< T >::plasticModulus1(), constitutive::StateVariable< T >::scalars, micromechanical::core::ContactLawBase< T >::updateHardeningVariables(), constitutive::StateVariable< T >::vectors, constitutive::StateVariable< T >::w, micromechanical::core::ContactLawBase< T >::yieldFunction(), and micromechanical::core::ContactLawBase< T >::yieldFunctionCorrection().

Referenced by CPPM(), and stiffness().

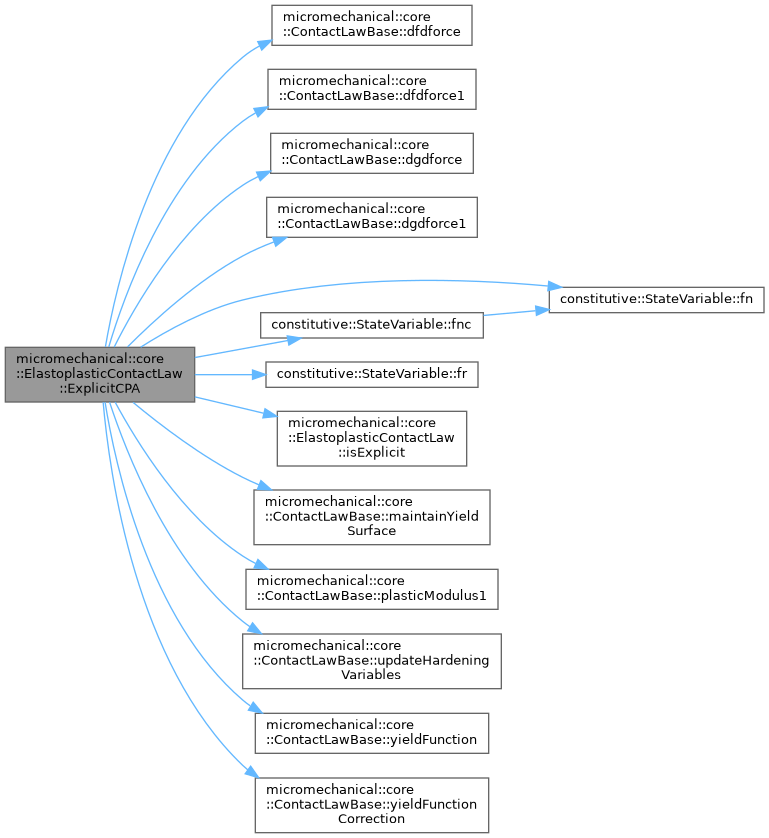

Here is the call graph for this function:

Here is the caller graph for this function:

isCPA()

template<typename T>

bool micromechanical::core::ElastoplasticContactLaw< T >::isCPA ( ) const

inlineprotected

check if the plastic method is CPA

Returns

true if the plastic method is CPA, false otherwise

Referenced by stiffness().

Here is the caller graph for this function:

isCPPM()

template<typename T>

bool micromechanical::core::ElastoplasticContactLaw< T >::isCPPM ( ) const

inlineprotected

check if the plastic method is CPPM

Returns

true if the plastic method is CPPM, false otherwise

Referenced by stiffness().

Here is the caller graph for this function:

isExplicit()

template<typename T>

bool micromechanical::core::ElastoplasticContactLaw< T >::isExplicit ( ) const

inlineprotected

check if the plastic method is explicit

Returns

true if the plastic method is explicit, false otherwise

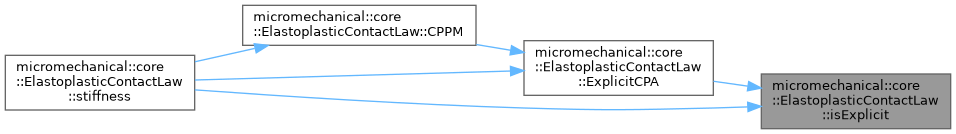

Referenced by ExplicitCPA(), and stiffness().

Here is the caller graph for this function:

setPlasticMethod()

template<typename T>

void micromechanical::core::ElastoplasticContactLaw< T >::setPlasticMethod ( const std::string & method )

inline

set the plastic method

Parameters

method

plastic method, "Explicit", "CPA", or "CPPM"

stiffness()

template<typename T>

Eigen::Matrix< T, 3, 3 > micromechanical::core::ElastoplasticContactLaw< T >::stiffness ( const int idx, const Eigen::Matrix< T, 3, 1 > & ddisp, const StateVariable< T > & sv0, StateVariable< T > & sv )

inlineoverrideprotectedvirtual

calculate the elastoplastic stiffness matrix

Parameters

idx	index of the integration point
ddisp	displacement increment
sv0	initial state variable
sv	state variable

Returns

the elastoplastic stiffness matrix

Implements micromechanical::core::ContactLawBase< T >.

References CPPM(), constitutive::StateVariable< T >::elasticStiffnessMatrix(), ExplicitCPA(), constitutive::StateVariable< T >::force, isCPA(), isCPPM(), isExplicit(), and constitutive::StateVariable< T >::vectors.

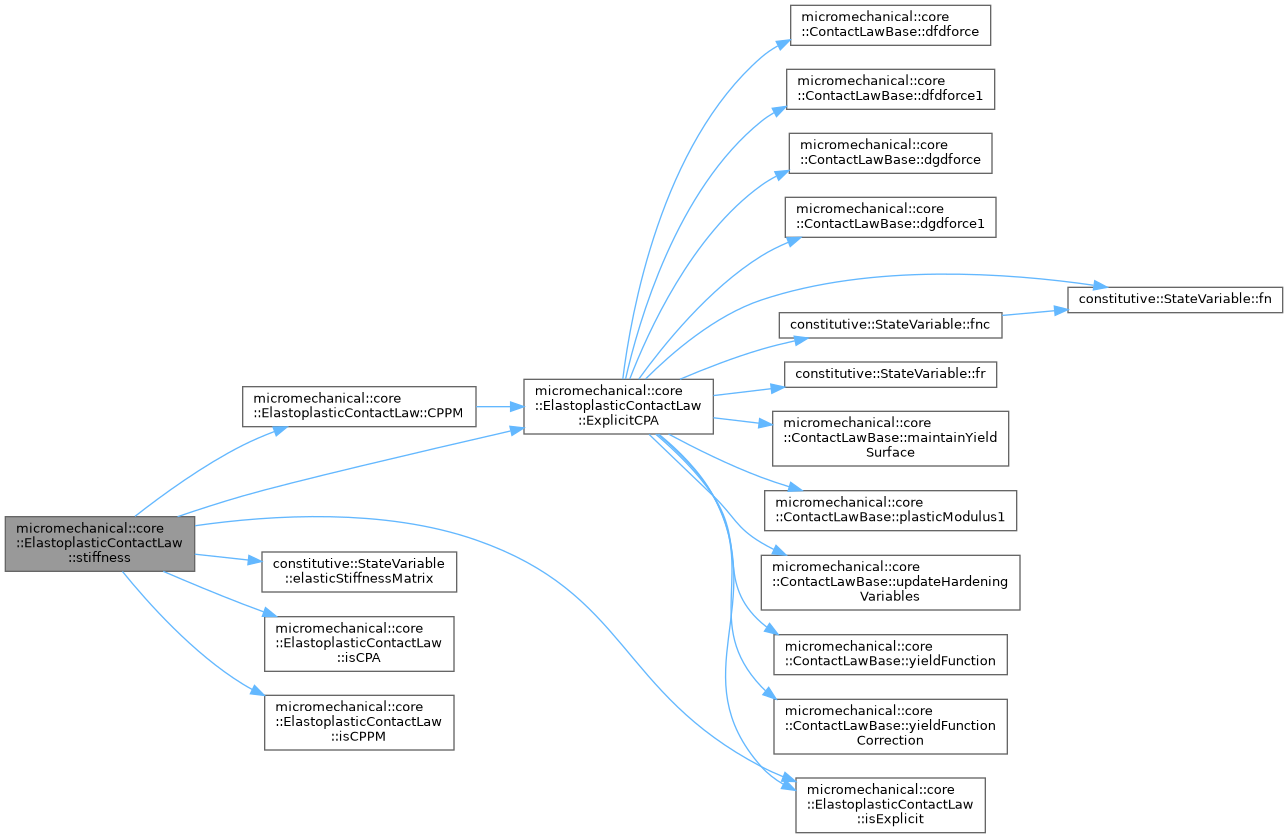

Here is the call graph for this function:

Member Data Documentation

plasticMethod

template<typename T>

std::string micromechanical::core::ElastoplasticContactLaw< T >::plasticMethod = "CPA"

Plastic method.

---

The documentation for this struct was generated from the following file:

• include/micromechanical/core/contactlaw.hpp
